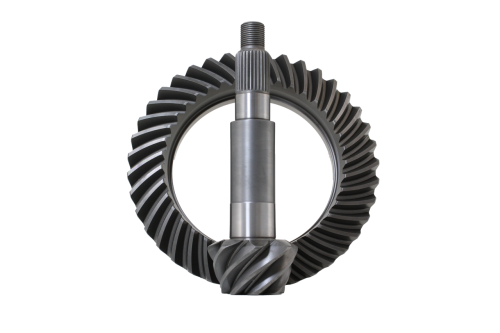

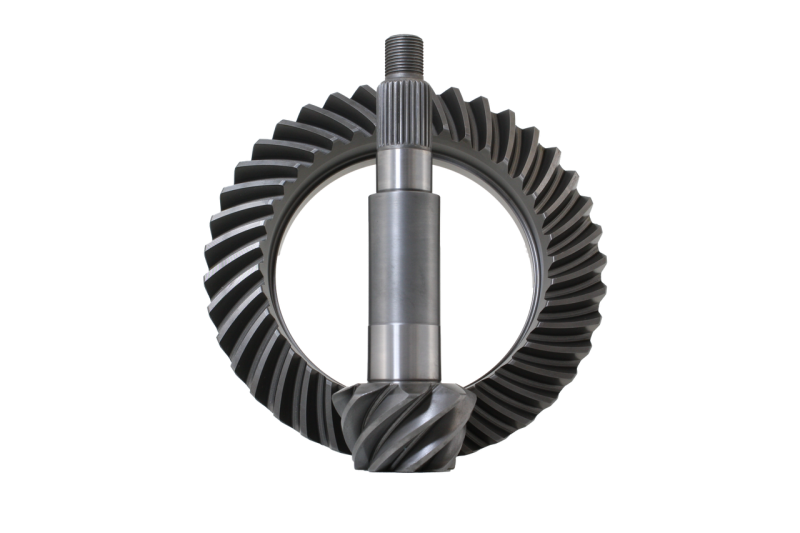

Revolution Gear & Axle Ring & Pinion Set for Dana 60 (5.13 Ratio, Reverse, Thick)

This is the Revolution Gear & Axle thick-cut ring and pinion set for the Dana 60 reverse rotation front axle in a 5.13 ratio with a 29-spline pinion. It is a deep regear for the heavy-duty 60 in front-axle (reverse rotation) form.

The set is machined from 8620 alloy steel and heat treated to meet or exceed OE standards. It uses the 29-spline Dana 60 pinion and a 9.75-inch ring gear. Because it is a thick-cut gear, the ring gear is designed to mount to a 4.10-ratio and numerically lower carrier without a carrier swap.

A 5.13 is a deep ratio aimed at built rigs running large tires that need maximum gear reduction for low-speed crawling and to overcome the parasitic load of oversized tires. The reverse rotation cut is what makes it correct for a Dana 60 front.

Pay attention to the thick-cut design: it lets the 5.13 run on a numerically lower (4.10-and-down) standard carrier, so verify your carrier against the 4.10/4.56 break before ordering. The set is gears only and does not include bearings, a crush sleeve, shims, a seal, a carrier, or a locker.

Pair it with a Revolution Gear master install kit for the Dana 60 to get the bearings and setup hardware, and have it set up by an experienced installer given the deep ratio. Gears carry a 2-year warranty against manufacturing defects.
