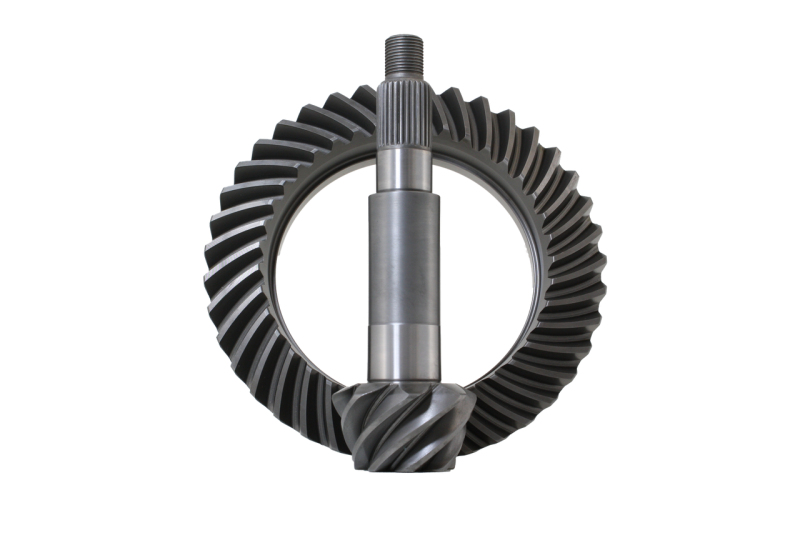

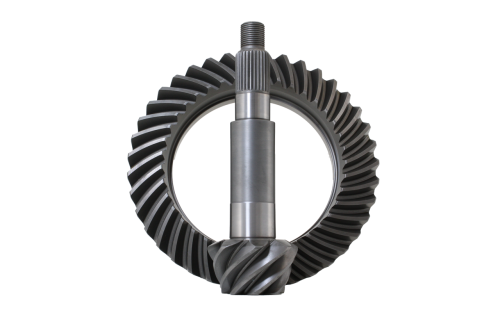

Revolution Gear & Axle Ring & Pinion Set for Dana 60 (5.38 Ratio, Reverse)

This is a 5.38 ratio reverse-rotation ring and pinion gear set for the Dana 60 axle. It is the gear set itself, cut for reverse-rotation Dana 60 applications such as a high-pinion front in a one-ton build.

The set uses a 29-spline pinion on a 9.75-inch Dana 60 ring gear with a 10-bolt cover pattern. Carrier break is listed at 4.10/4.56, so confirm your carrier when going to a deep 5.38 ratio. Gears are machined from 8620 steel, heat treated and lapped for a strong, quiet setup.

A 5.38 ratio is built for heavily built rigs on very large tires that need deep crawling gears and a Dana 60's strength. This reverse-cut set is the right choice for a reverse-rotation Dana 60 in that kind of build.

This listing is the gear set only. Pinion and carrier bearings, crush sleeve, shims, pinion seal and cover sealant are not included, and a carrier or locker is separate. Add a Revolution Dana 60 master install kit for the bearings, and have an experienced installer set the pattern, backlash and pinion depth.

Going to 5.38 with a quality reverse-cut Dana 60 set restores low-end control on big tires while taking advantage of the 60's strength. Match the opposite axle to the same ratio for balanced gearing.
