Diamond T 10 Lug Dually Wheel Adapters for Ford (2005-17) F-350 Dually (front & rear) (8 on 200)

SKU: 810FD05

Diamond T 10 Lug Dually Wheel Adapters for Ford F-350 Dually (front & rear) (8 on 200)

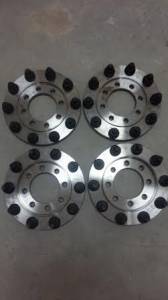

Diamond T Enterprises 8 lug to 10 lug hub-centric solid steel adapters milled to specifically fit 2005-2013 Ford F-350/F-450/F-550 dually trucks. Mount 10 lug on 285.75mm semi wheels on your dually truck. The industries toughest adapters, made from solid steel - ideal for the abuse and loads required by your 1 ton dually. Adapters are 7/8" thick. Rear studs are designed to allow use of 2 aluminum wheels, 2 steel wheels, or 1 aluminum and 1 steel wheel.

Adapters are designed and manufactured in the USA!

These are for the 8 studs on 200 which is the common size. Some F-450/F-550 trucks had 10 on 225, this would not be the correct set for 10 on 225.

-Includes lugnuts for the 40 Ten lug pattern.
-Front studs are about 2.25" long
-Rear studs are about 3" long

*Will not fit American Force Wheels

These are custom Built and currently take approximately 3 weeks to ship.

Availability: ETA on these adapters is currently 1-2 weeks.

Was: $1,300.99

Sale: $1,100.99

Save: 15%

Save: $200.00

Customize Your Item

Year * required

If you have the new style (2019+) Alcoa wheels that the front wheel hub bore has a tapered edge, we will need to have a longer hub tab on the adapters for them to work. Older Alcoas and Accuride wheels do not need this upgrade and using the upgraded adapters on the wrong style would prevent you from using the push-in hub caps. Wheel Style

New Style Alcoa +$25.00 Select if you have the newer style Alcoa wheels.

Qty:

Free Shipping

Description
Details
Shipping
Reviews

Description

Description
Step 1: Remove your factory wheel assembly.
-Loosen and remove factory lug nuts.
-Remove existing wheel and tire assembly

Step 2: Attach the adapter to the factory 8 lug hub assembly
-Please note front and rear adapters are different confirm before installation.
-Adapters must fit flat against the vehicle's hubs. Remove any rust and dirt from the hubs of brake rotors and drums. Remove any temporary retaining devices, like stud
clips, they may interfere with the flush fitment of your adapters against the brake hubs.
-Using the factory flat washer lug nuts, use an air gun or torque wrench to torque the factory flat washer lug nuts to 140lbs on to the adapter. -After tightening all 8
factory lug nuts to the adapter, inspect the installation.
-Make sure the adapter is sitting secure and flush with the hub of the truck.

Step 3: Install your 10 lug wheel
-Attach the 10 lug wheel to the adapter and slide it on to the large hub of the adapter.
-Using an air gun or torque wrench, torque the large 10 bolt lug nuts to the wheel.
-After tightening all 10 large lug nuts to the wheel, inspect the installation.
-Make sure the wheel is sitting secure and flush with the hub of the adapter.

Fitment
Year Make Model Engine: 2005 Ford F-350 Diesel
Year Make Model Engine: 2005 Ford F-350 Gas
Year Make Model Engine: 2005 Ford F-450 Diesel
Year Make Model Engine: 2005 Ford F-450 Gas
Year Make Model Engine: 2005 Ford F-550 Diesel
Year Make Model Engine: 2005 Ford F-550 Gas
Year Make Model Engine: 2006 Ford F-350 Diesel
Year Make Model Engine: 2006 Ford F-350 Gas
Year Make Model Engine: 2006 Ford F-450 Diesel
Year Make Model Engine: 2006 Ford F-450 Gas
Year Make Model Engine: 2006 Ford F-550 Diesel
Year Make Model Engine: 2006 Ford F-550 Gas
Year Make Model Engine: 2007 Ford F-350 Diesel
Year Make Model Engine: 2007 Ford F-350 Gas
Year Make Model Engine: 2007 Ford F-450 Diesel
Year Make Model Engine: 2007 Ford F-450 Gas
Year Make Model Engine: 2007 Ford F-550 Diesel
Year Make Model Engine: 2007 Ford F-550 Gas
Year Make Model Engine: 2008 Ford F-350 Diesel
Year Make Model Engine: 2008 Ford F-350 Gas
Year Make Model Engine: 2008 Ford F-450 Diesel
Year Make Model Engine: 2008 Ford F-450 Gas
Year Make Model Engine: 2008 Ford F-550 Diesel
Year Make Model Engine: 2008 Ford F-550 Gas
Year Make Model Engine: 2009 Ford F-350 Diesel
Year Make Model Engine: 2009 Ford F-350 Gas
Year Make Model Engine: 2009 Ford F-450 Diesel
Year Make Model Engine: 2009 Ford F-450 Gas
Year Make Model Engine: 2009 Ford F-550 Diesel
Year Make Model Engine: 2009 Ford F-550 Gas
Year Make Model Engine: 2010 Ford F-350 Diesel
Year Make Model Engine: 2010 Ford F-350 Gas
Year Make Model Engine: 2010 Ford F-450 Diesel
Year Make Model Engine: 2010 Ford F-450 Gas
Year Make Model Engine: 2010 Ford F-550 Diesel
Year Make Model Engine: 2010 Ford F-550 Gas
Year Make Model Engine: 2011 Ford F-350 Diesel
Year Make Model Engine: 2011 Ford F-350 Gas
Year Make Model Engine: 2011 Ford F-450 Diesel
Year Make Model Engine: 2011 Ford F-450 Gas
Year Make Model Engine: 2011 Ford F-550 Diesel
Year Make Model Engine: 2011 Ford F-550 Gas
Year Make Model Engine: 2012 Ford F-350 Diesel
Year Make Model Engine: 2012 Ford F-350 Gas
Year Make Model Engine: 2012 Ford F-450 Diesel
Year Make Model Engine: 2012 Ford F-450 Gas
Year Make Model Engine: 2012 Ford F-550 Diesel
Year Make Model Engine: 2012 Ford F-550 Gas
Year Make Model Engine: 2013 Ford F-350 Diesel
Year Make Model Engine: 2013 Ford F-350 Gas
Year Make Model Engine: 2013 Ford F-450 Diesel
Year Make Model Engine: 2013 Ford F-450 Gas
Year Make Model Engine: 2013 Ford F-550 Diesel
Year Make Model Engine: 2013 Ford F-550 Gas
Year Make Model Engine: 2014 Ford F-350 Diesel
Year Make Model Engine: 2014 Ford F-350 Gas

Availability Remarks: ETA on these adapters is currently 1-2 weeks.
