SPE Motorsport Hot Side Intercooler Pipe for Ford (2011-25) 6.7L Power Stroke, Blue Jean (Fits ALL year non-HO trucks)

SPE has engineering and brutally tested our new Hot Side Intercooler pipe for your 6.7L Powerstroke. We waited to offer our customers the strongest & most modular design possible.

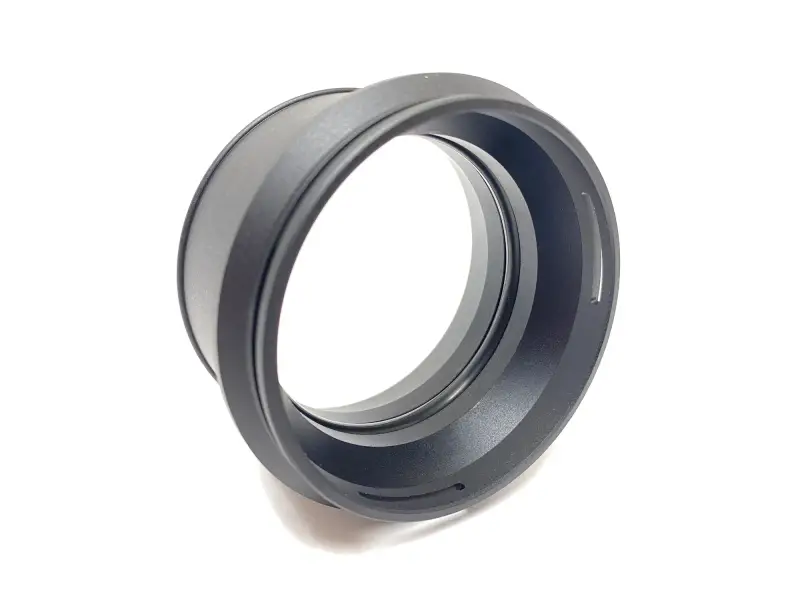

Engineering started with the compressor outlet. SPE developed a billet 3” adapter that seals to the turbo via a 5mm o-ring. The thick o-ring allows for a consistent seal as temperatures fluctuate with rises and falls (unlike others on the market). The outlet also retains the factory snap/quick connect ring for ease of installation.

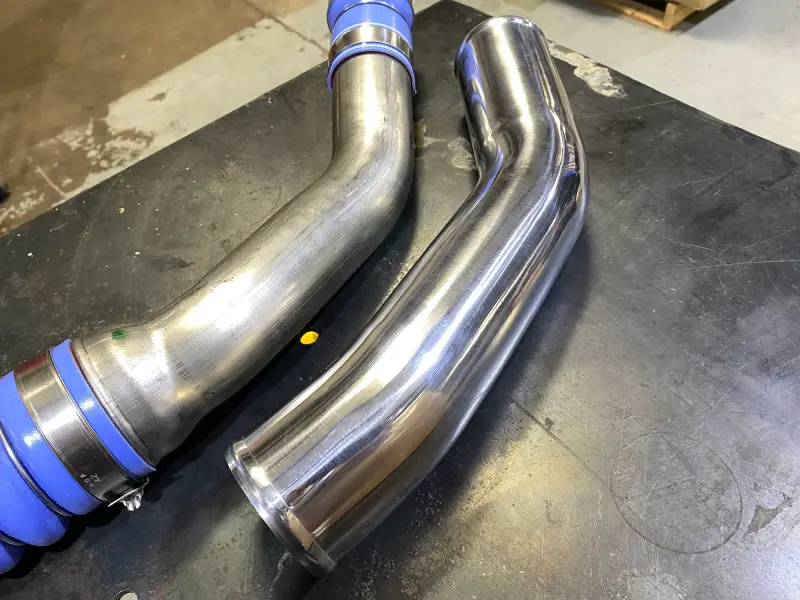

The SPE mandrel bent 3” intercooler pipe is made of a thick wall T6 aluminum. The SPE Hot Side Pipe was bent with the least amount of angles as possible. This design reduces restrictions in flow and creates a more esthetically pleasing product.

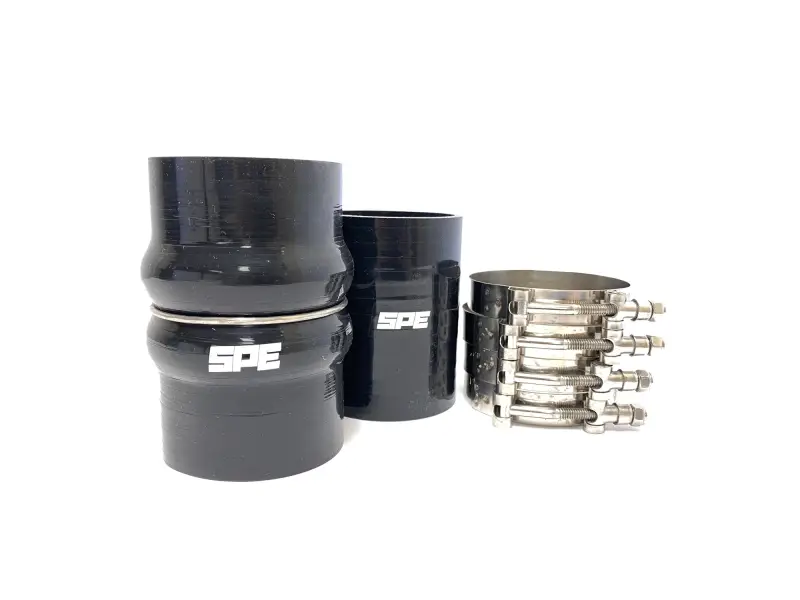

This kit also includes 2 5-ply silicone couplers. The flex coupler (for the intercooler side) is reinforced with a metal right giving the coupler even more strength. Also includes are 4 t-bolt clamps.

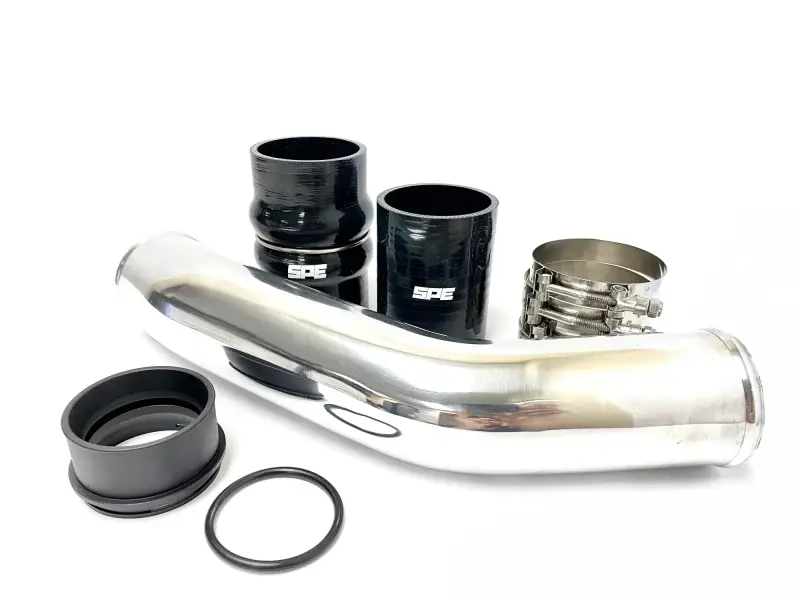

Kit Includes:
•1- Billet aluminum adapter (black anodized)
•1- 3” mandrel bent intercooler pipe
•1- 5mm o-ring
•2- 5-ply silicone couplers
•4- T-bolt clamps
•1- Detailed instructions

Features:
•Direct fit for the 2011-2025 6.7L Powerstroke (non-HO)
•Mandrel bent, heavy wall aluminum tubing
•Larger pipe size
•Available in polished for a clean, sleek look
•Billet 3” turbo adapter with a thick 5mm o-ring unlike the competition
•Eliminates leak-prone factory o-ring
•Designed to work with factory and aftermarket turbo kits including most non-vgt applications
•5-ply silicone couplers— stronger, more durable than the factory design
•Easy installation allowing even a novice to install
•NO TUNING REQUIRED!

Fitment:
Fits Standard Pick-Ups and Cab & Chassis for the following years:
2011 F250/F350/F450/F550 6.7L Powerstroke
2012 F250/F350/F450/F550 6.7L Powerstroke
2013 F250/F350/F450/F550 6.7L Powerstroke
2014 F250/F350/F450/F550 6.7L Powerstroke
2015 F250/F350/F450/F550 6.7L Powerstroke
2016 F250/F350/F450/F550 6.7L Powerstroke
2017 F250/F350/F450/F550 6.7L Powerstroke
2018 F250/F350/F450/F550 6.7L Powerstroke
2019 F250/F350/F450/F550 6.7L Powerstroke
2020 F250/F350/F450/F550 6.7L Powerstroke
2021 F250/F350/F450/F550 6.7L Powerstroke
2022 F250/F350/F450/F550 6.7L Powerstroke
2023 F250/F350/F450/F550 6.7L Powerstroke (non-HO)
2024 F250/F350/F450/F550 6.7L Powerstroke (non-HO)
2025 F250/F350/F450/F550 6.7L Powerstroke (non-HO)


Previous Part Number: SPE-67HSP
