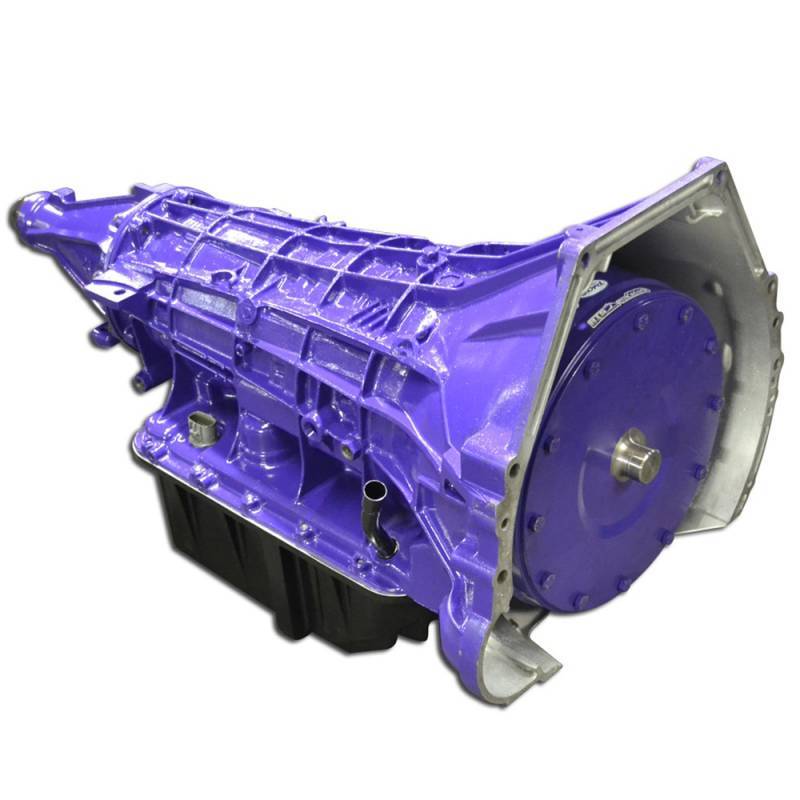

ATS 4R100 Automatic Transmission for Ford (1999-03) 7.3L Power Stroke 4WD, Stage 2 (with PTO)

This ATS Stage 2 4R100 transmission package is a complete, matched drivetrain upgrade for 1999-2003 Ford Power Stroke 4WD trucks with PTO. Everything in the package is built by ATS to work together, so you are not mixing a built transmission with a stock converter or controller. It is built for street-driven trucks with mild power upgrades.

ATS Diesel Performance has built diesel transmissions and performance parts since 1993. ATS designs, engineers, and manufactures most of its products in-house at its Arvada, Colorado facility, and tests them at altitude on the same long grades its customers tow on.

Stage Comparison

• Stage 1: Stage 1 Package 1999-2003 Ford 4R100 4WD with PTO, ATS Five Star Torque Converter, Modified transmission pump, High performance clutch packs with more clutches than stock, Re-designed accumulator pistons, ATS Deep Transmission Pan that adds 5 quarts of fluid,
• Stage 2: ATS Five Star Torque Converter, ATS Billet Input Shaft, Modified transmission pump, High performance clutch packs with more clutches than stock, Re-designed accumulator pistons
• Stage 3: ATS Five Star Torque Converter, ATS Billet Input Shaft, ATS Co-Pilot Transmission Lock-up Controller, Modified transmission pump, High performance clutch packs with more clutches than stock, Re-designed accumulator pistons, ATS Deep Transmission Pan that adds 5 quarts of fluid,
• Stage 4: ATS Five Star Torque Converter, ATS Billet Input Shaft, ATS Co-Pilot Transmission Lock-up Controller, ATS Billet Flex Plate, Modified transmission pump, High performance clutch packs with more clutches than stock, Re-designed accumulator pistons, ATS Deep Transmission Pan that adds 5 quarts of fluid,
• Stage 5: ATS Five Star Torque Converter, ATS Billet Input Shaft, ATS Co-Pilot Transmission Lock-up Controller, ATS Billet Flex Plate, ATS Billet Intermediate Shaft, Modified transmission pump, High performance clutch packs with more clutches than stock, Re-designed accumulator pistons
• Stage 6: ATS Five Star Torque Converter, ATS Billet Input Shaft, ATS Co-Pilot Transmission Lock-up Controller, ATS Billet Flex Plate, ATS Billet Intermediate Shaft, ATS Billet Output Shaft, Modified transmission pump, High performance clutch packs with more clutches than stock

Specifications

• Part Number: 309-925-3224
• Product Type: Transmission Package
• Transmission: 4R100
• Stage: 2
• Engine: Power Stroke
• Years: 1999-2003
• Make: Ford
• Drive: 4WD
• Application: Street
• Sold As: Kit
• Warranty: 5 Year/500,000 Mile
• Country of Origin: USA

Features

• ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, billet stator and a furnace-brazed impeller
• ATS Billet Input Shaft
• Modified transmission pump for increased line pressure
• High performance clutch packs with more clutches than stock
• Re-designed accumulator pistons for a precise shift feel
• 1999-2003 F-250/F-350/F-450
• Powerstroke Ford
• Diesel

Fitment

• PTO-equipped trucks only
• 1999-2003 Ford F-250 Super Duty
• 1999-2003 Ford F-350 Super Duty

Resources

• ATS product video
