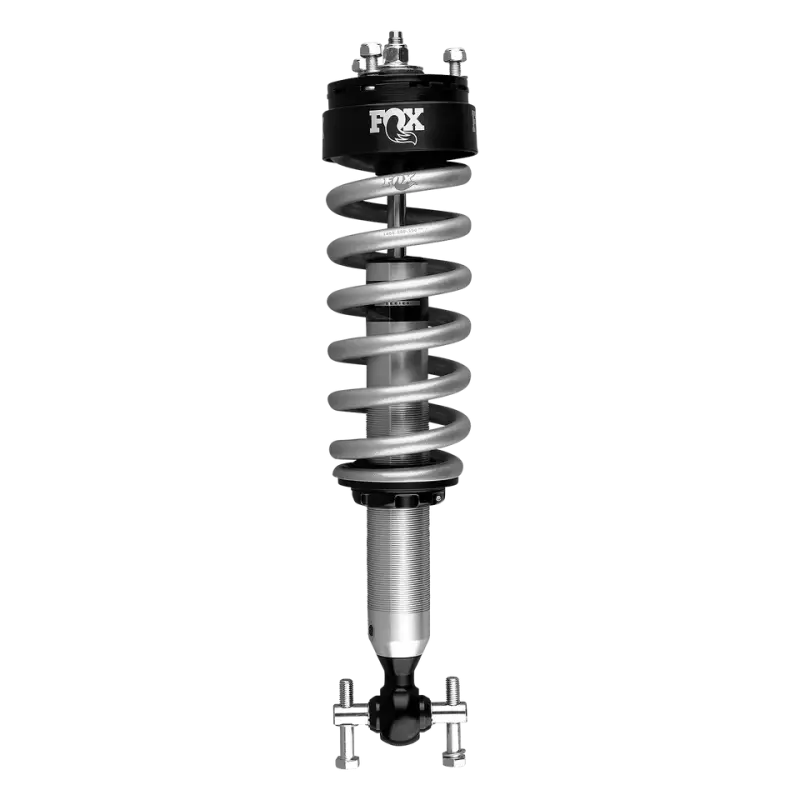

Fox 2.0 Performance Series Coilover IFP Shock for Chevy/GMC (2007-13) Avalanche / (2007-20) Suburban/Tahoe/Yukon / (2007-19) 1500 (Front, Lifted 0"-2")
985-02-018
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Pricing:
$629.99
Description
Features:
•Performance Tuned For Vehicle Specific Application;
•Aluminum Body Dissipates Heat Faster Than Steel;
•IFP Separates Oil From High-Pressure Nitrogen Gas;
•Black Anodized CNC Machined Aluminum Components
Specifications:
•SERIES Performance
•TRAVEL 4.29
•FRONT LIFT HEIGHT 0-2
•BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
•BODY PLATING Clear-anodized for a durable finish
•COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
•SHAFT 5/8" hard chrome plated heat-treated alloy steel
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
•BEARINGS Large diameter, heavy-duty spherical
•EXTENDED LENGTH 17.89
•COMPRESSED LENGTH 13.6
•TOP MOUNT TM
•BOTTOM MOUNT Bar Pin
Fitment:
2007 Chevrolet Avalanche All All All All Front 0"-2"
2008 Chevrolet Avalanche All All All All Front 0"-2"
2009 Chevrolet Avalanche All All All All Front 0"-2"
2010 Chevrolet Avalanche All All All All Front 0"-2"
2011 Chevrolet Avalanche All All All All Front 0"-2"
2012 Chevrolet Avalanche All All All All Front 0"-2"
2013 Chevrolet Avalanche All All All All Front 0"-2"
2007 Chevrolet Silverado 1500 All All All All Front 0"-2"
2008 Chevrolet Silverado 1500 All All All All Front 0"-2"
2009 Chevrolet Silverado 1500 All All All All Front 0"-2"
2010 Chevrolet Silverado 1500 All All All All Front 0"-2"
2011 Chevrolet Silverado 1500 All All All All Front 0"-2"
2012 Chevrolet Silverado 1500 All All All All Front 0"-2"
2013 Chevrolet Silverado 1500 All All All All Front 0"-2"
2014 Chevrolet Silverado 1500 All All All All Front 0"-1"
2015 Chevrolet Silverado 1500 All All All All Front 0"-1"
2016 Chevrolet Silverado 1500 All All All All Front 0"-1"
2017 Chevrolet Silverado 1500 All All All All Front 0"-1"
2018 Chevrolet Silverado 1500 All All All All Front 0"-1"
2019 Chevrolet Silverado 1500 LD All All All All Front 0"-1"
2015 Chevrolet Suburban All All All All Front 0"-1"
2016 Chevrolet Suburban All All All All Front 0"-1"
2017 Chevrolet Suburban All All All All Front 0"-1"
2018 Chevrolet Suburban All All All All Front 0"-1"
2019 Chevrolet Suburban All All All All Front 0"-1"
2020 Chevrolet Suburban All All All All Front 0"-1"
2007 Chevrolet Suburban 1500 All All All All Front 0"-2"
2008 Chevrolet Suburban 1500 All All All All Front 0"-2"
2009 Chevrolet Suburban 1500 All All All All Front 0"-2"
2010 Chevrolet Suburban 1500 All All All All Front 0"-2"
2011 Chevrolet Suburban 1500 All All All All Front 0"-2"
2012 Chevrolet Suburban 1500 All All All All Front 0"-2"
2013 Chevrolet Suburban 1500 All All All All Front 0"-2"
2014 Chevrolet Suburban 1500 All All All All Front 0"-1"
2007 Chevrolet Tahoe All All All All Front 0"-2"
2008 Chevrolet Tahoe All All All All Front 0"-2"
2009 Chevrolet Tahoe All All All All Front 0"-2"
2010 Chevrolet Tahoe All All All All Front 0"-2"
2011 Chevrolet Tahoe All All All All Front 0"-2"
2012 Chevrolet Tahoe All All All All Front 0"-2"
2013 Chevrolet Tahoe All All All All Front 0"-2"
2014 Chevrolet Tahoe All All All All Front 0"-1"
2015 Chevrolet Tahoe All All All All Front 0"-1"
2016 Chevrolet Tahoe All All All All Front 0"-1"
2017 Chevrolet Tahoe All All All All Front 0"-1"
2018 Chevrolet Tahoe All All All All Front 0"-1"
2019 Chevrolet Tahoe All All All All Front 0"-1"
2020 Chevrolet Tahoe All All All All Front 0"-1"
2007 GMC Sierra 1500 All All All All Front 0"-2"
2008 GMC Sierra 1500 All All All All Front 0"-2"
2009 GMC Sierra 1500 All All All All Front 0"-2"
2010 GMC Sierra 1500 All All All All Front 0"-2"
2011 GMC Sierra 1500 All All All All Front 0"-2"
2012 GMC Sierra 1500 All All All All Front 0"-2"
2013 GMC Sierra 1500 All All All All Front 0"-2"
2014 GMC Sierra 1500 All All All All Front 0"-1"
2015 GMC Sierra 1500 All All All All Front 0"-1"
2016 GMC Sierra 1500 All All All All Front 0"-1"
2017 GMC Sierra 1500 All All All All Front 0"-1"
2018 GMC Sierra 1500 All All All All Front 0"-1"
2019 GMC Sierra 1500 Limited All All All All Front 0"-1"
2007 GMC Yukon All All All All Front 0"-2"
2008 GMC Yukon All All All All Front 0"-2"
2009 GMC Yukon All All All All Front 0"-2"
2010 GMC Yukon All All All All Front 0"-2"
2011 GMC Yukon All All All All Front 0"-2"
2012 GMC Yukon All All All All Front 0"-2"
2013 GMC Yukon All All All All Front 0"-2"
2014 GMC Yukon All All All All Front 0"-1"
2015 GMC Yukon All All All All Front 0"-1"
2016 GMC Yukon All All All All Front 0"-1"
2017 GMC Yukon All All All All Front 0"-1"
2018 GMC Yukon All All All All Front 0"-1"
2019 GMC Yukon All All All All Front 0"-1"
2020 GMC Yukon All All All All Front 0"-1"
2015 GMC Yukon XL All All All All Front 0"-1"
2016 GMC Yukon XL All All All All Front 0"-1"
2017 GMC Yukon XL All All All All Front 0"-1"
2018 GMC Yukon XL All All All All Front 0"-1"
2019 GMC Yukon XL All All All All Front 0"-1"
2020 GMC Yukon XL All All All All Front 0"-1"
2007 GMC Yukon XL 1500 All All All All Front 0"-2"
2008 GMC Yukon XL 1500 All All All All Front 0"-2"
2009 GMC Yukon XL 1500 All All All All Front 0"-2"
2010 GMC Yukon XL 1500 All All All All Front 0"-2"
2011 GMC Yukon XL 1500 All All All All Front 0"-2"
2012 GMC Yukon XL 1500 All All All All Front 0"-2"
2013 GMC Yukon XL 1500 All All All All Front 0"-2"
2014 GMC Yukon XL 1500 All All All All Front 0"-1"
•Performance Tuned For Vehicle Specific Application;
•Aluminum Body Dissipates Heat Faster Than Steel;
•IFP Separates Oil From High-Pressure Nitrogen Gas;
•Black Anodized CNC Machined Aluminum Components
Specifications:
•SERIES Performance
•TRAVEL 4.29
•FRONT LIFT HEIGHT 0-2
•BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
•BODY PLATING Clear-anodized for a durable finish
•COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
•SHAFT 5/8" hard chrome plated heat-treated alloy steel
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
•BEARINGS Large diameter, heavy-duty spherical
•EXTENDED LENGTH 17.89
•COMPRESSED LENGTH 13.6
•TOP MOUNT TM
•BOTTOM MOUNT Bar Pin
Fitment:
2007 Chevrolet Avalanche All All All All Front 0"-2"
2008 Chevrolet Avalanche All All All All Front 0"-2"
2009 Chevrolet Avalanche All All All All Front 0"-2"
2010 Chevrolet Avalanche All All All All Front 0"-2"
2011 Chevrolet Avalanche All All All All Front 0"-2"
2012 Chevrolet Avalanche All All All All Front 0"-2"
2013 Chevrolet Avalanche All All All All Front 0"-2"
2007 Chevrolet Silverado 1500 All All All All Front 0"-2"
2008 Chevrolet Silverado 1500 All All All All Front 0"-2"
2009 Chevrolet Silverado 1500 All All All All Front 0"-2"
2010 Chevrolet Silverado 1500 All All All All Front 0"-2"
2011 Chevrolet Silverado 1500 All All All All Front 0"-2"
2012 Chevrolet Silverado 1500 All All All All Front 0"-2"
2013 Chevrolet Silverado 1500 All All All All Front 0"-2"
2014 Chevrolet Silverado 1500 All All All All Front 0"-1"
2015 Chevrolet Silverado 1500 All All All All Front 0"-1"
2016 Chevrolet Silverado 1500 All All All All Front 0"-1"
2017 Chevrolet Silverado 1500 All All All All Front 0"-1"
2018 Chevrolet Silverado 1500 All All All All Front 0"-1"
2019 Chevrolet Silverado 1500 LD All All All All Front 0"-1"
2015 Chevrolet Suburban All All All All Front 0"-1"
2016 Chevrolet Suburban All All All All Front 0"-1"
2017 Chevrolet Suburban All All All All Front 0"-1"
2018 Chevrolet Suburban All All All All Front 0"-1"
2019 Chevrolet Suburban All All All All Front 0"-1"
2020 Chevrolet Suburban All All All All Front 0"-1"
2007 Chevrolet Suburban 1500 All All All All Front 0"-2"
2008 Chevrolet Suburban 1500 All All All All Front 0"-2"
2009 Chevrolet Suburban 1500 All All All All Front 0"-2"
2010 Chevrolet Suburban 1500 All All All All Front 0"-2"
2011 Chevrolet Suburban 1500 All All All All Front 0"-2"
2012 Chevrolet Suburban 1500 All All All All Front 0"-2"
2013 Chevrolet Suburban 1500 All All All All Front 0"-2"
2014 Chevrolet Suburban 1500 All All All All Front 0"-1"
2007 Chevrolet Tahoe All All All All Front 0"-2"
2008 Chevrolet Tahoe All All All All Front 0"-2"
2009 Chevrolet Tahoe All All All All Front 0"-2"
2010 Chevrolet Tahoe All All All All Front 0"-2"
2011 Chevrolet Tahoe All All All All Front 0"-2"
2012 Chevrolet Tahoe All All All All Front 0"-2"
2013 Chevrolet Tahoe All All All All Front 0"-2"
2014 Chevrolet Tahoe All All All All Front 0"-1"
2015 Chevrolet Tahoe All All All All Front 0"-1"
2016 Chevrolet Tahoe All All All All Front 0"-1"
2017 Chevrolet Tahoe All All All All Front 0"-1"
2018 Chevrolet Tahoe All All All All Front 0"-1"
2019 Chevrolet Tahoe All All All All Front 0"-1"
2020 Chevrolet Tahoe All All All All Front 0"-1"
2007 GMC Sierra 1500 All All All All Front 0"-2"
2008 GMC Sierra 1500 All All All All Front 0"-2"
2009 GMC Sierra 1500 All All All All Front 0"-2"
2010 GMC Sierra 1500 All All All All Front 0"-2"
2011 GMC Sierra 1500 All All All All Front 0"-2"
2012 GMC Sierra 1500 All All All All Front 0"-2"
2013 GMC Sierra 1500 All All All All Front 0"-2"
2014 GMC Sierra 1500 All All All All Front 0"-1"
2015 GMC Sierra 1500 All All All All Front 0"-1"
2016 GMC Sierra 1500 All All All All Front 0"-1"
2017 GMC Sierra 1500 All All All All Front 0"-1"
2018 GMC Sierra 1500 All All All All Front 0"-1"
2019 GMC Sierra 1500 Limited All All All All Front 0"-1"
2007 GMC Yukon All All All All Front 0"-2"
2008 GMC Yukon All All All All Front 0"-2"
2009 GMC Yukon All All All All Front 0"-2"
2010 GMC Yukon All All All All Front 0"-2"
2011 GMC Yukon All All All All Front 0"-2"
2012 GMC Yukon All All All All Front 0"-2"
2013 GMC Yukon All All All All Front 0"-2"
2014 GMC Yukon All All All All Front 0"-1"
2015 GMC Yukon All All All All Front 0"-1"
2016 GMC Yukon All All All All Front 0"-1"
2017 GMC Yukon All All All All Front 0"-1"
2018 GMC Yukon All All All All Front 0"-1"
2019 GMC Yukon All All All All Front 0"-1"
2020 GMC Yukon All All All All Front 0"-1"
2015 GMC Yukon XL All All All All Front 0"-1"
2016 GMC Yukon XL All All All All Front 0"-1"
2017 GMC Yukon XL All All All All Front 0"-1"
2018 GMC Yukon XL All All All All Front 0"-1"
2019 GMC Yukon XL All All All All Front 0"-1"
2020 GMC Yukon XL All All All All Front 0"-1"
2007 GMC Yukon XL 1500 All All All All Front 0"-2"
2008 GMC Yukon XL 1500 All All All All Front 0"-2"
2009 GMC Yukon XL 1500 All All All All Front 0"-2"
2010 GMC Yukon XL 1500 All All All All Front 0"-2"
2011 GMC Yukon XL 1500 All All All All Front 0"-2"
2012 GMC Yukon XL 1500 All All All All Front 0"-2"
2013 GMC Yukon XL 1500 All All All All Front 0"-2"
2014 GMC Yukon XL 1500 All All All All Front 0"-1"
Details
- 985-02-018
- 985-02-018
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W2.5000” x H2.5000” x L41.0000”
- Free Shipping
Customer Reviews
Total Reviews (0)
You must login to post a review.
Write the First Review!
