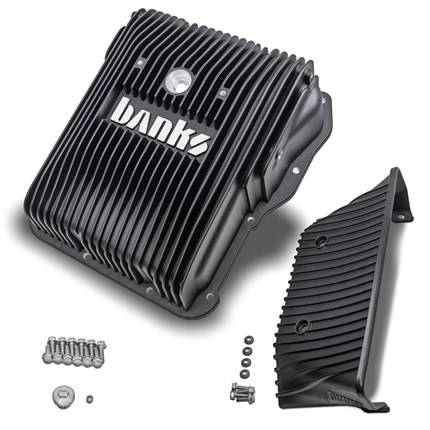

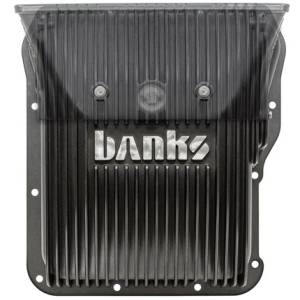

Banks Power Ram-Air Allison 1000 Transmission Pan for Chevy/GMC (2001-19) 2500/3500 6.6L Duramax L5P

Engineered To Run Cool
The Banks Ram Air Transmission Pan for 2001-2019 Duramax trucks with Allison 1000 transmission outperforms and outcools the competition by leveraging decades of Ram-Air technology and thermal management expertise honed in racing and military engine development.

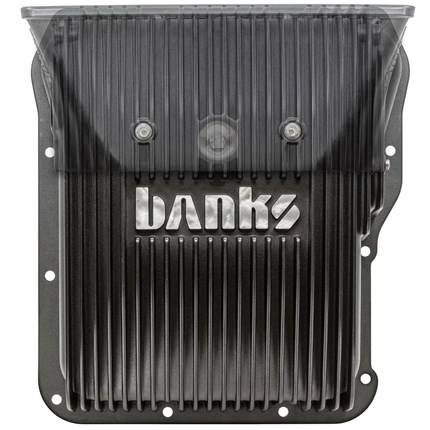

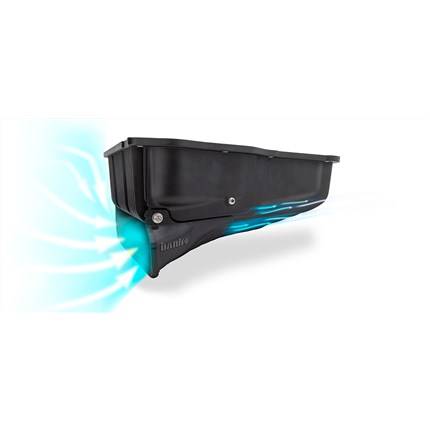

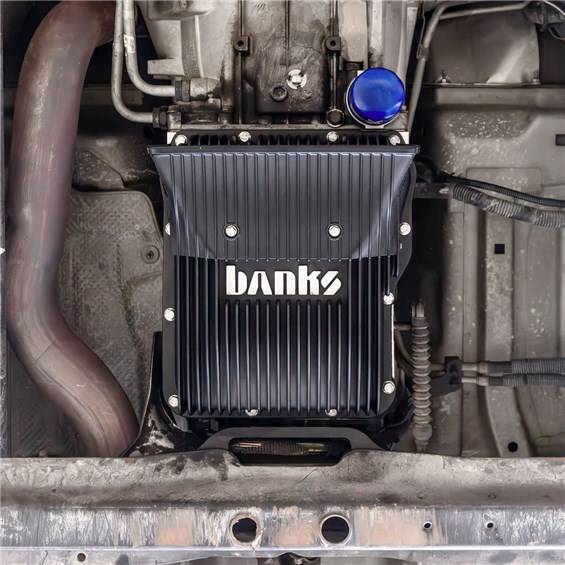

Taking advantage of the fast-moving cool air under your truck, the Ram-Air Transmission Pans' Patent Pending design draws ambient air through the large forward-facing scoop, funneling it through the external heat radiation fins.

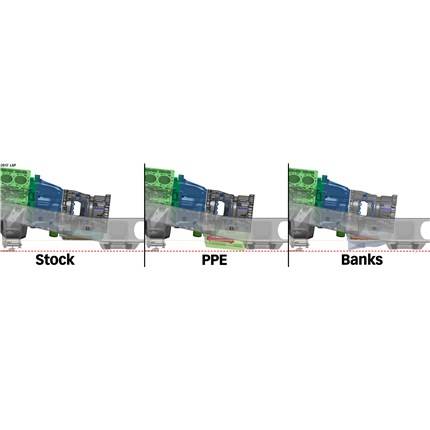

Even with the larger 10 speed Allison transmission tucked between the frame, the Ram-Air Transmission Pan is engineered so that the lowest point is only the sacrificial front scoop while still providing 3 additional quarts of fluid capacity.

The plastic scoop is also designed to break away without causing damage to your pan, just in case. If this happens to you, let us know and we will send a replacement Ram-Air scoop on the house.

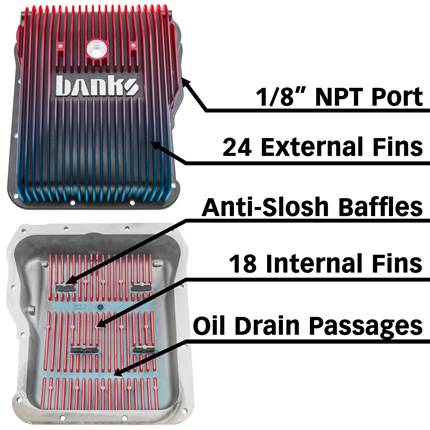

•24 deep-cut external radiator fins provide more exposed surface area to the cool air moving under the truck.
•Integrated support structure for internal filter acts as anti-slosh baffles for fluid in the pan.
•18 internal fins absorb more heat from the oil than a standard or all aftermarket pans.
•Die-cast process provides a smoother, less porous interior surface and improves fluid flow in the pan.

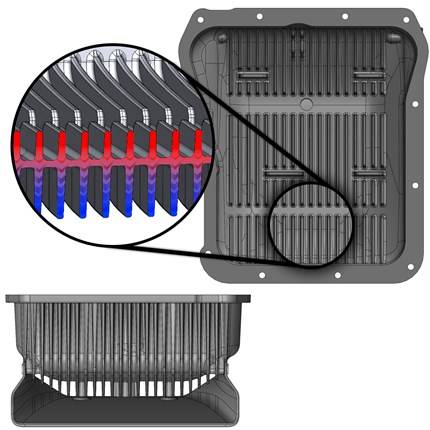

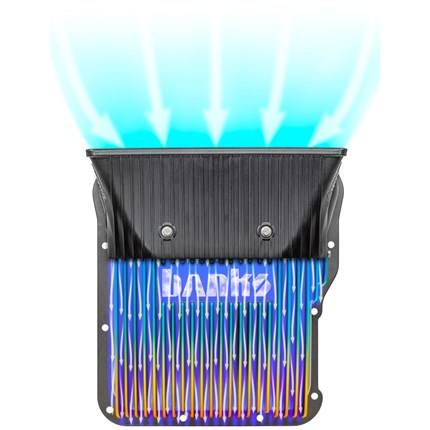

The Banks proprietary FlowThru Fins maximize thermal energy transfer by lining up the internal absorption and external radiator elements with each other.

Transmission fluid heat is efficiently drawn from the fluid, reducing stress on your Duramax's cooling and lubrication systems.

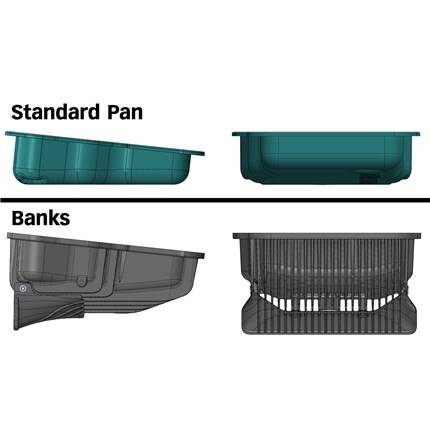

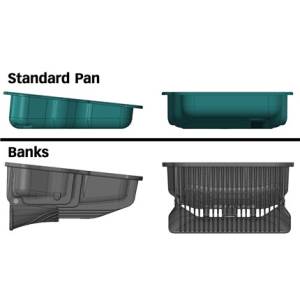

Banks vs Stock
The stock Duramax pan is made from stamped steel which has no internal or external fins to assist in removing heat from the fluid inside.

Without additional means to cool the fluid, it quickly becomes heat soaked with no way to radiate the additional heat load.

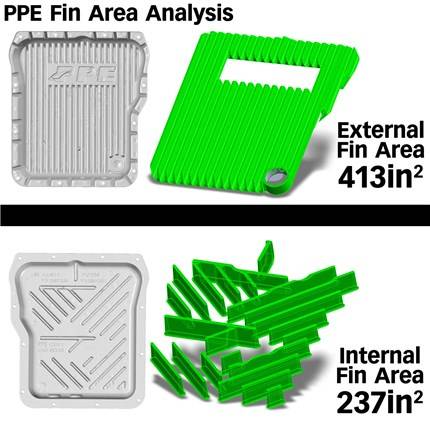

Banks vs The Competition

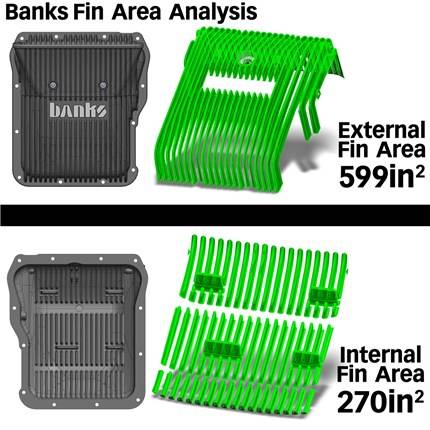

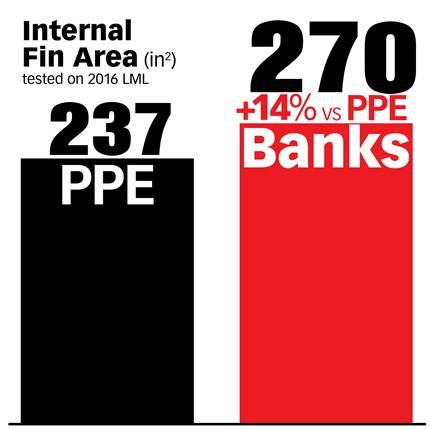

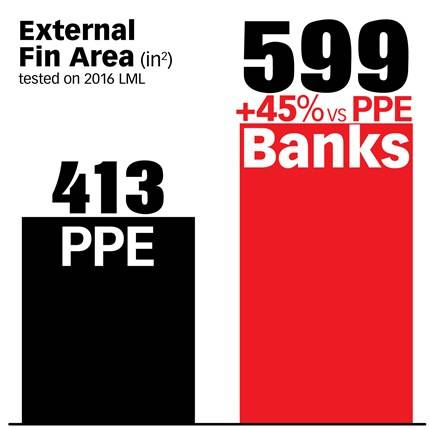

What happens when the Ram-Air goes against the competition? While others claim to have massive cooling ability with their designs featuring fins that cross haphazardly across their surface with no consideration for fluid dynamics, the Banks Ram-Air still comes out on top in total internal and external fin area.

What all others lack though, is the forward-facing Ram-Air scoop to help guide the air under your truck directly through its die-cast FlowThru Fins, which further enhances heat transfer out of your fluid and away from your transmisison. No other pan is as well-engineered.

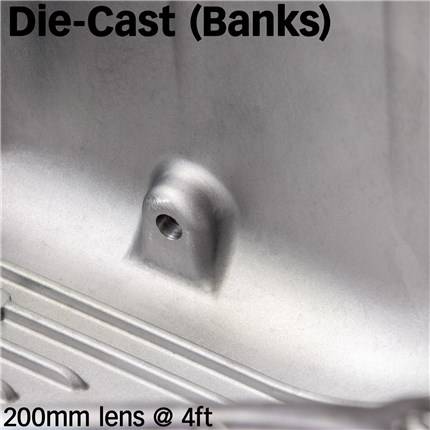

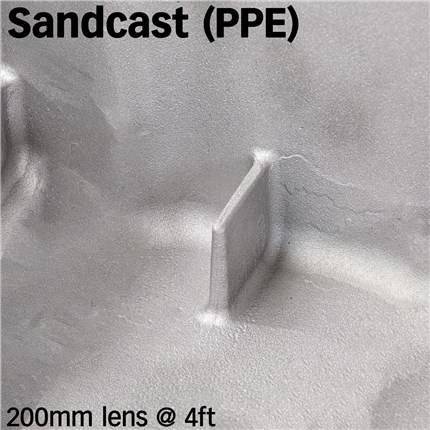

Die-Cast vs Sand-Cast
All Banks lubrication cooling products are die-cast, not sand-cast like competitors. Made with far greater precision, a die-cast part is denser, smoother, and has virtually no porosity compared to the equivalent sand-cast part.

Sand-cast parts often retain the sand they were molded with. Sand is an abrasive material that is bad for bearings and cylinder walls. In other words, you don’t want sand in your oil. Finally, our long, thin cooling fins are only possible with a die-cast process. Although this process costs more, it's worth it.

Fluid Dynamics
•Internal cooling fins run inline with the drain port with streamlined passageways
•Downward-facing port eases oil change process
•Lower aeration means longer fluid life

Technical Specs
•1/8 NPT port for aux temp sensor
•External heat radiation fin count: 24
•Internal heat absorption fin count: 18

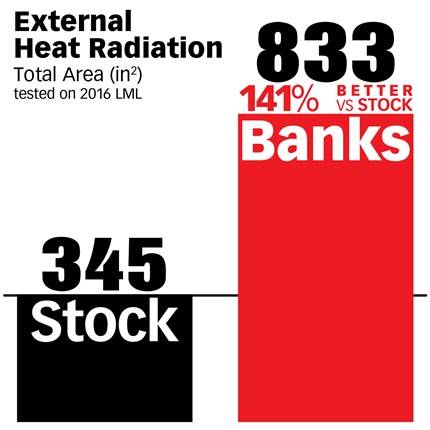

•External heat radiation surface area: 833 in2
•Internal heat absorption surface area: 505 in2
•Fasteners: 12 x stainless steel M6 flange hex bolts
•Material: A380 aluminum diecast with CNC machined surfaces

Oil service
•High temp resistant Ferrite Magnetic Drain Plug
•Fully drains oil pickup tube for quicker oil changes
•Banks recommends Amsoil Synthetic Diesel Oil
•Adds 2 quarts additional capacity

Banks Ram-Air Allison 1000 Transmission Pan Features:
•Engineered for the highest heat rejection, improved oil flow, and full oil drainage
•Adds 2 additional quarts of fluid capacity
•FlowThru Fins efficiently transfer heat from the oil to the cover's exterior

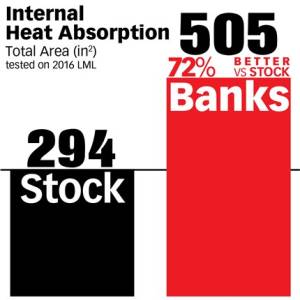

•72% more heat absorption surface area than stock
•141% more cooling surface area than stock
•Breakaway Ram-Air Scoop design prevents pan damage
•Allows full fluid drainage
•Die-Cast not sand-cast like competitors

•Transmission Pan Gasket: 2001-2019 GM Part No: 29549684
•Transmission Fluid Filter: 2001-2005 (5-Speed) GM Part No. 29537965
•2006-2019 (6-Speed) GM Part No: 29542833 or D116010AA

Fitment:
2001 - 2019 Chevy Silverado 2500
2001 - 2019 Chevy Silverado 3500
2001 - 2019 GMC Sierra 2500
2001 - 2019 GMC Sierra 3500
