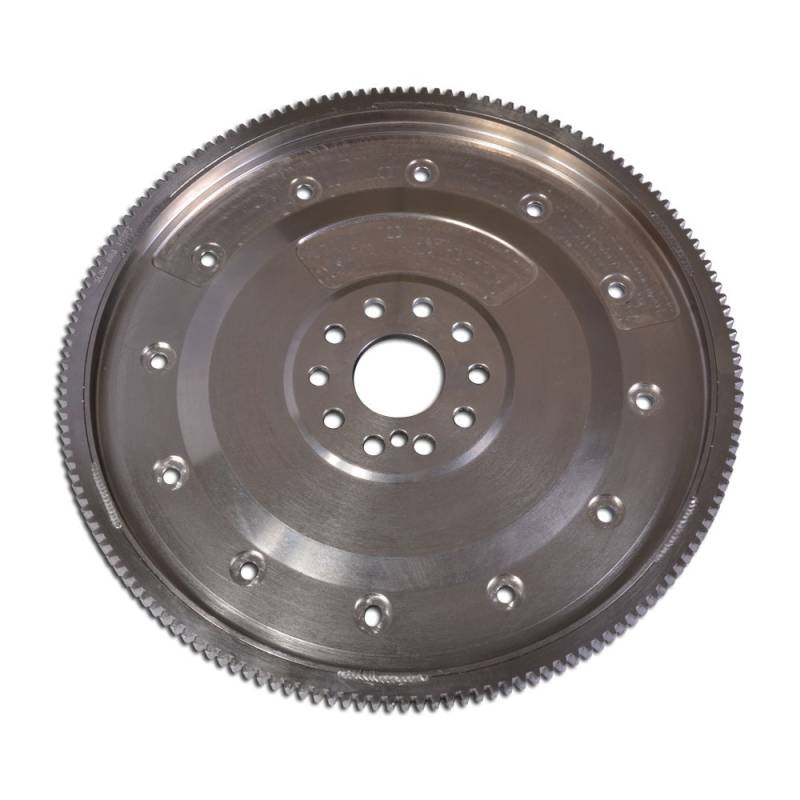

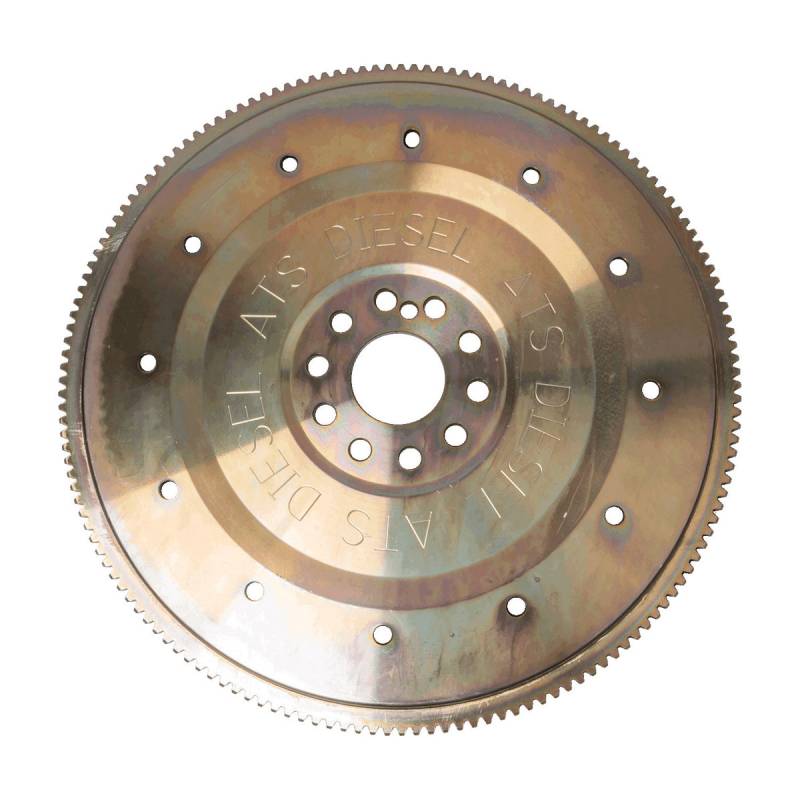

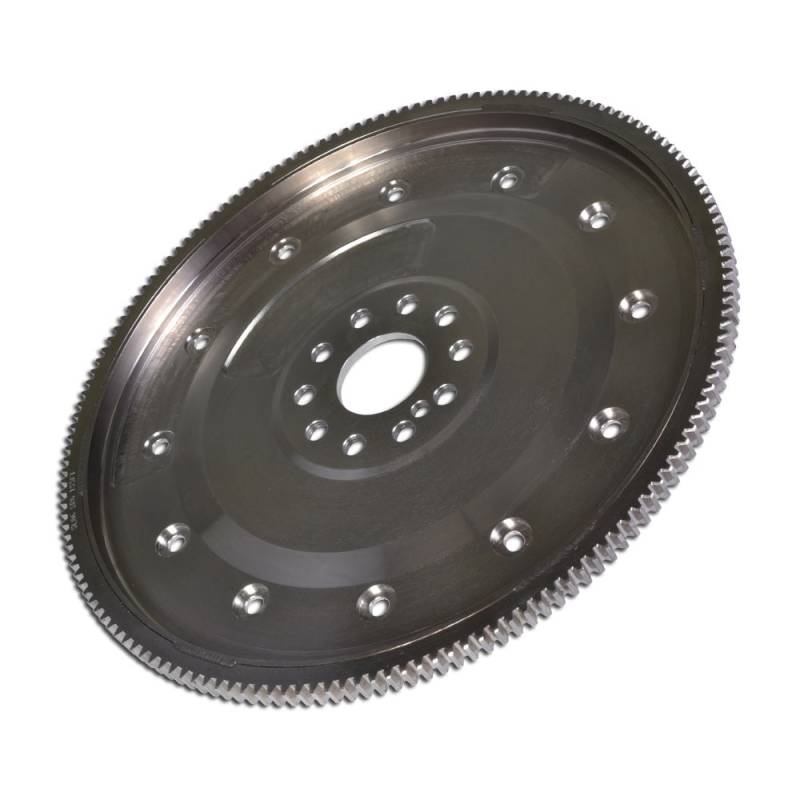

ATS Billet Flex Plate for Ford (1989-03) 7.3L Power Stroke, E4OD 4R100

The ATS Billet Flex Plate for 1989-2003 Ford 7.3L Power Stroke is an ATS Diesel Performance upgrade for trucks that see added power, heat, or heavy towing. ATS designs its parts around the failures it sees in its own transmission and engine work, so each upgrade targets a known weak point.

The flexplate connects the crankshaft to the torque converter, so every bit of engine torque passes through it on the way to the transmission. Factory flexplates are stamped steel, and on a truck with added power and hard launches they can crack around the bolt holes or at the center hub.

ATS Diesel Performance has built diesel transmissions and performance parts since 1993. ATS designs, engineers, and manufactures most of its products in-house at its Arvada, Colorado facility, and tests them at altitude on the same long grades its customers tow on.

Specifications

• Part Number: 305-900-3104
• Product Type: Transmission Flexplate
• Transmission: 4R100
• Engine: 7.3L Power Stroke
• Years: 1989-2003
• Make: Ford
• Application: Competition
• Material: Billet Aluminum
• Sold As: Kit
• Warranty: 5-Year/500,000 Mile Limited
• Country of Origin: USA

Features

• ATS Billet Flex Plate, SFI Certified - Ford Powerstroke 7.3L
• Solves common breakage issues
• Meets SFI standards
• Strong, durable and reliable
• Made From Billet Steel
• Sold As A Kit
• 1989-2003 Ford F250/F350/F450 Truck w/7.3L Powerstroke Engine and Ford E4OD or 4R100 Transmission

Fitment

• 1989-1996 Ford F-250
• 1999-2003 Ford F-250 Super Duty
• 1989-1997 Ford F-350
• 1999-2003 Ford F-350 Super Duty
• 1999-2003 Ford F-450 Super Duty

Resources

• Installation instructions (PDF)
