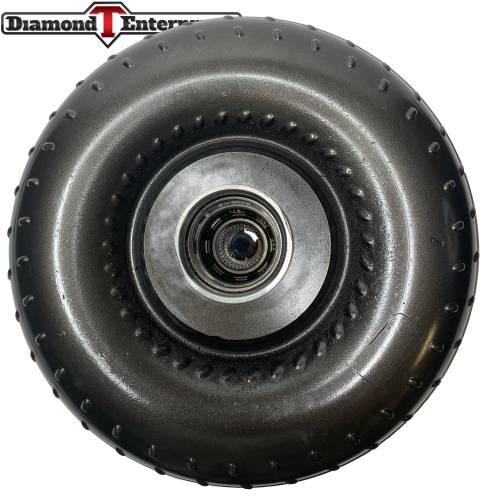

Diamond T Torque Converter for GM (2006-18) 4.8/5.3/6.0/6.2L Gas 6L80 & 6L90
GS066L
These Torque Converters are built in the USA with the highest grade components and come with a Lifetime Non-Transferable Warranty for defects in material and workmanship under normal and proper use. They are designed to improve acceleration, pulling power, and efficiency of your vehicle to the max. Unlike other "mass produced" re-manufactured torque converters, Diamond T technicians keep all of the original parts together during the re-manufacturing process to assure a matched set of components. Other re-manufacturers disassemble hundreds of torque converters and mix all of the parts in large bins. Keeping the parts together results in improved quality. All parts are inspected thoroughly and any marginal parts are replaced. They take the TIME to build quality into each and every Torque Converter. Many other companies do not measure the thickness of the housing and when they machine the surface it makes the metal too thin and leads to early failure. If your housing is less than the OEM specs, they replace it with a new one. The torque converters are precision balanced with a computerized balancer. Only the best clutch materials are used. The torque converters are pre-charged with transmission fluid. This helps to prevent rust on the internal components leading to early failure in case it is exposed to any humidity before installation. Quality testing is performed on each and every Torque Converter before it leaves the facility.
Torque Converter Information:
-Updated Clutch Design
-Direct Stock Replacement **(see fitment details below)
-Stock Stall Speed
-Upgraded Billet Front Cover
-Lifetime Warranty!
Torque Converter Information:
-Updated Clutch Design
-Direct Stock Replacement **(see fitment details below)
-Stock Stall Speed
-Upgraded Billet Front Cover
-Lifetime Warranty!
Free Shipping
Was:
$1022.00
Sale:
$729.99
Save:
29%
Save:
$292.01
Verify it fits
Description
This warranty will be null and void if repair or replacement is required because of improper installation, accident, physical and, or, neglect, misuse or any other cause other than the ordinary and intended use for which the Product was designed, or if the Product has been dismantled, altered and, or, repaired by the customer or any third party.
Diameter: 12.5"
Spline: 36 Spline
Pilot: 1.703" Diameter
Hub: Non-Flanged, 1.834" Slots
Mounting: 3 Stepped Mounting Pads, 10mm x 1.5 Threads, 11" Bolt Circle
Metal Stamp: 24230191, 24234544, 24236469, 24239789, 24243222, 24245963, 24245964 , 24247371
2006 - 2015 Cadillac Escalade 6.0L, 6.2L
2012 - 2015 Chevrolet Camaro 6.2L
2006 - 2007 Chevrolet Corvette 6.0L
2009 - 2018 Chevrolet Express 2500 4.8L
2009 - 2018 Chevrolet Express 3500 4.8L, 6.0L
2013 - 2014 Chevrolet Silverado 5.3L
2008 - 2017 Chevrolet Silverado 1500 5.3L
2007 - 2013 Chevrolet Silverado 2500-3500 HD 6.0L
2008 - 2011 Chevrolet Suburban 1500 / 2500 6.0L
2008 - 2015 Chevrolet Suburban 1500 HD 6.0L
2008 - 2013 Chevrolet Suburban 5.3L
2008 - 2018 Chevrolet Tahoe 5.3L, 6.2L
2008 - 2011 GMC Denali 6.2L
2008 - 2011 GMC Savana 3500 6.0L
2006 - 2015 GMC Sierra Denali 6.2L
2007 - 2013 GMC Sierra 2500 6.0L
2007 - 2013 GMC Sierra 3500 6.0L
2008 - 2018 GMC Yukon 5.3L, 6.2L
2012 - 2015 ISUZU NPR Box Truck 6.0L
2008 - 2010 Pontiac G8 6.0L
Diameter: 12.5"
Spline: 36 Spline
Pilot: 1.703" Diameter
Hub: Non-Flanged, 1.834" Slots
Mounting: 3 Stepped Mounting Pads, 10mm x 1.5 Threads, 11" Bolt Circle
Metal Stamp: 24230191, 24234544, 24236469, 24239789, 24243222, 24245963, 24245964 , 24247371
2006 - 2015 Cadillac Escalade 6.0L, 6.2L
2012 - 2015 Chevrolet Camaro 6.2L
2006 - 2007 Chevrolet Corvette 6.0L
2009 - 2018 Chevrolet Express 2500 4.8L
2009 - 2018 Chevrolet Express 3500 4.8L, 6.0L
2013 - 2014 Chevrolet Silverado 5.3L
2008 - 2017 Chevrolet Silverado 1500 5.3L
2007 - 2013 Chevrolet Silverado 2500-3500 HD 6.0L
2008 - 2011 Chevrolet Suburban 1500 / 2500 6.0L
2008 - 2015 Chevrolet Suburban 1500 HD 6.0L
2008 - 2013 Chevrolet Suburban 5.3L
2008 - 2018 Chevrolet Tahoe 5.3L, 6.2L
2008 - 2011 GMC Denali 6.2L
2008 - 2011 GMC Savana 3500 6.0L
2006 - 2015 GMC Sierra Denali 6.2L
2007 - 2013 GMC Sierra 2500 6.0L
2007 - 2013 GMC Sierra 3500 6.0L
2008 - 2018 GMC Yukon 5.3L, 6.2L
2012 - 2015 ISUZU NPR Box Truck 6.0L
2008 - 2010 Pontiac G8 6.0L
