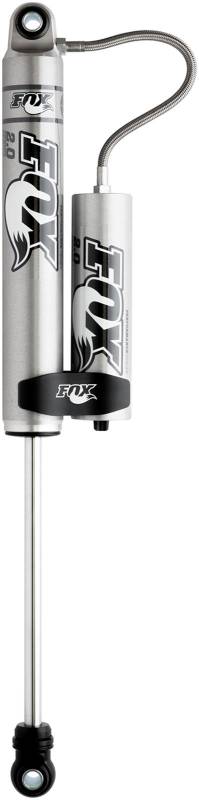

Fox Racing Shox 2.0 Performance Series Reservoir Smooth Body Shock for Chevy/GMC (2001-19) 2500HD/3500HS 2WD/4WD (Rear, Lifted 4"-6")
980-24-956
Fox Racing Shox 2.0 Performance Series reservoir smooth body shocks deliver race-dominating performance in hassle-free, bolt-on packages. Their heat-reducing design includes metal-impacted aluminum shock bodies that dissipate heat faster than conventional steel. The external reservoirs allow for increased oil and nitrogen capacity, while delivering a striking race look. And the shock's race-developed, high-flow damping piston is matched with application-specific valving to provide a predicable ride quality capable of handling the roughest road conditions. Performance Series shocks are available for front and/or rear applications from 1984 and up.
Pricing:
$356.99
Description
Features:
* One-piece 2.0 in. impact-extruded, CNC-machined 6061-T6 clear anodized aluminum bodies
* Body plating is hard-anodized for a durable finish
* Smooth bore 6061-T6 aluminum and hard-anodized reservoirs
* Black anodized, CNC-machined 6061-T6 billet aluminum components
* Hard-chrome plated heat-treated alloy steel shafts
* Race-developed high-flow piston design
* Application-specific valving to maximize performance
* Redundant sealing pack system main seal, wiper seal, scraper seal
* JM92 Advanced Suspension Fluid for improved performance at variable temperatures
* Quiet nitrile rubber bushings allow for increased suspension articulation
* Direct replacement for stock and aftermarket lifts kits
Specifications:
•Ride Height: Lifted
•Ride Height Note: Additional ride height information may be available for your vehicle, please refer to the app tab.
•Lifted Amount Range (in.): 4.00-6.00 in.
•Extended Length (in.): 29.45
•Collapsed Length (in.): 17.35
•Internal Design: Monotube
•Adjustable Valving: No
•Gas Charged: Yes
•Upper Mount: Eyelet
•Lower Mount: Eyelet
•Bushing Material: Nitrile rubber
•Bushing Color: Black
•Boot Included: No
•Body Diameter (in.): 2.000
•Remanufactured: No
•Quantity: Sold individually.
•Notes: Fits models with a 4-6 inch lift. Top mount ID is 0.560 inches. Bottom mount hole size is 0.560 inches.
* One-piece 2.0 in. impact-extruded, CNC-machined 6061-T6 clear anodized aluminum bodies
* Body plating is hard-anodized for a durable finish
* Smooth bore 6061-T6 aluminum and hard-anodized reservoirs
* Black anodized, CNC-machined 6061-T6 billet aluminum components
* Hard-chrome plated heat-treated alloy steel shafts
* Race-developed high-flow piston design
* Application-specific valving to maximize performance
* Redundant sealing pack system main seal, wiper seal, scraper seal
* JM92 Advanced Suspension Fluid for improved performance at variable temperatures
* Quiet nitrile rubber bushings allow for increased suspension articulation
* Direct replacement for stock and aftermarket lifts kits
Specifications:
•Ride Height: Lifted
•Ride Height Note: Additional ride height information may be available for your vehicle, please refer to the app tab.
•Lifted Amount Range (in.): 4.00-6.00 in.
•Extended Length (in.): 29.45
•Collapsed Length (in.): 17.35
•Internal Design: Monotube
•Adjustable Valving: No
•Gas Charged: Yes
•Upper Mount: Eyelet
•Lower Mount: Eyelet
•Bushing Material: Nitrile rubber
•Bushing Color: Black
•Boot Included: No
•Body Diameter (in.): 2.000
•Remanufactured: No
•Quantity: Sold individually.
•Notes: Fits models with a 4-6 inch lift. Top mount ID is 0.560 inches. Bottom mount hole size is 0.560 inches.
Details
- 980-24-956
- 980-24-956
- 714686856867
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W2.5000” x H2.5000” x L41.0000”
