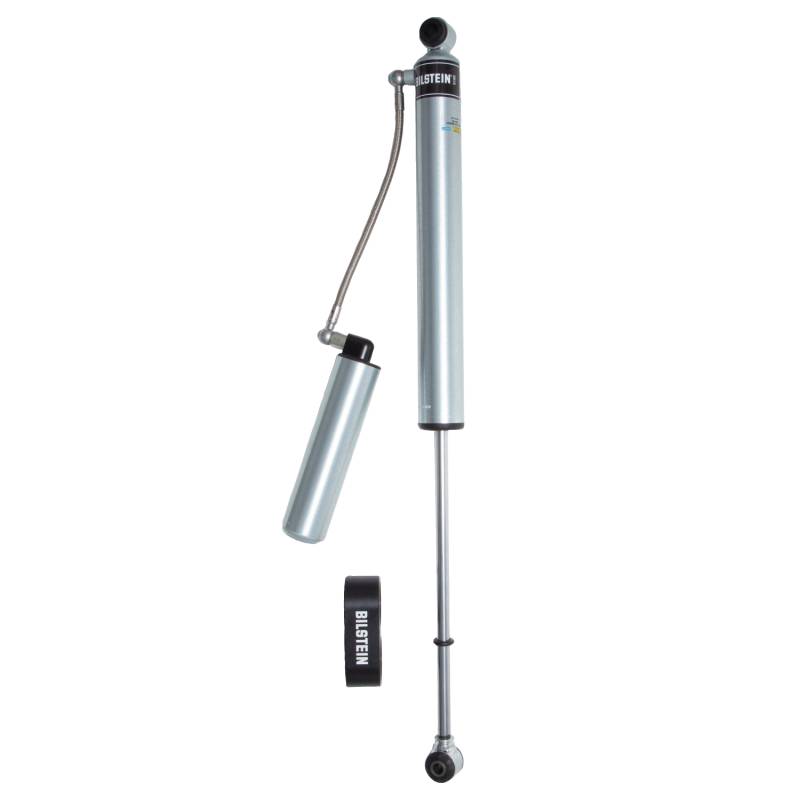

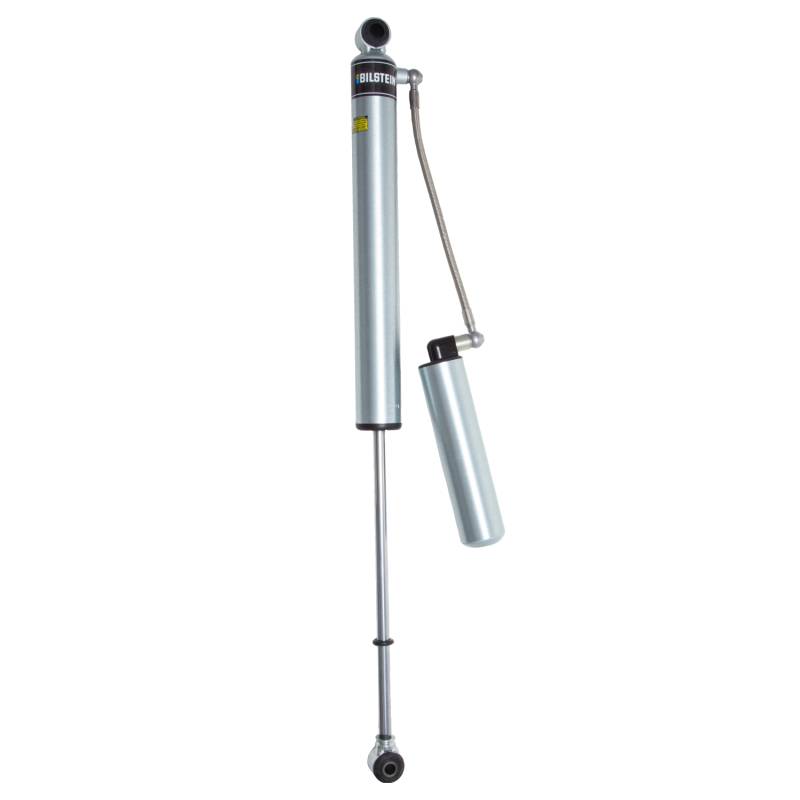

BILSTEIN B8 5160 Series Suspension Shock Absorber for Ford (2005-16) F-250/F-350
25-311785
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
Pricing:
$299.99
Description
Specifications:
•Collapsed Length (in): 18.03
•Extended Length (in): 31.27
•Collapsed Length (mm): 458.0
•Extended Length (mm): 794.2
•Stroke/travel Length (in): 13.24
•Lower Mount Type: Eye 12mm
•Upper Mount Type: Eye 16mm
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Ford F-250 Super Duty 2005-2016, F-350 Super Duty 2005-2016
Interchange Numbers
•Bilstein 25-187786
Bilstein BR5-H076
Bilstein F4-BR5-H076-H0
BQNV 25311785
FOX Offroad Shocks 985-24-104
•Collapsed Length (in): 18.03
•Extended Length (in): 31.27
•Collapsed Length (mm): 458.0
•Extended Length (mm): 794.2
•Stroke/travel Length (in): 13.24
•Lower Mount Type: Eye 12mm
•Upper Mount Type: Eye 16mm
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Ford F-250 Super Duty 2005-2016, F-350 Super Duty 2005-2016
Interchange Numbers
•Bilstein 25-187786
Bilstein BR5-H076
Bilstein F4-BR5-H076-H0
BQNV 25311785
FOX Offroad Shocks 985-24-104
Details
- 25-311785
- 25-311785
- 651860911120
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 8.2 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
