AVP Water Pump for Ford (2004.5-10) 6.0L Power Stroke (100mm Impeller)

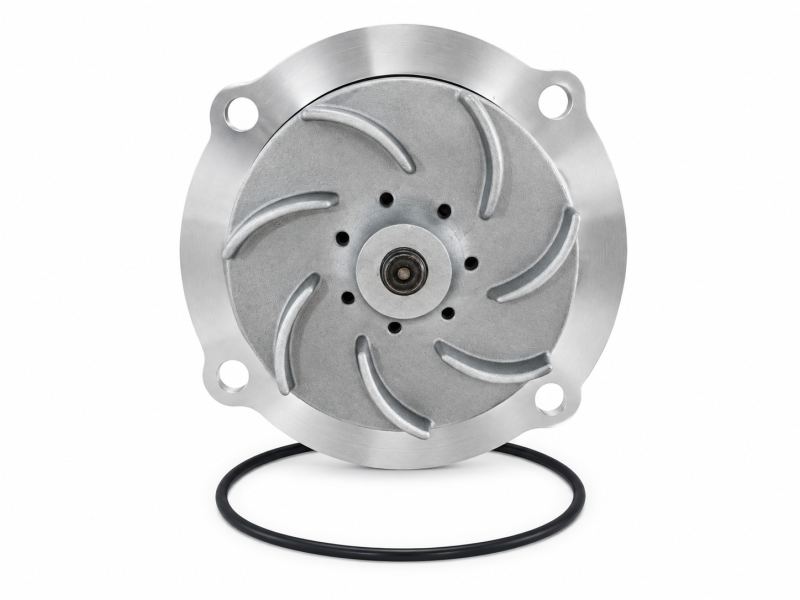

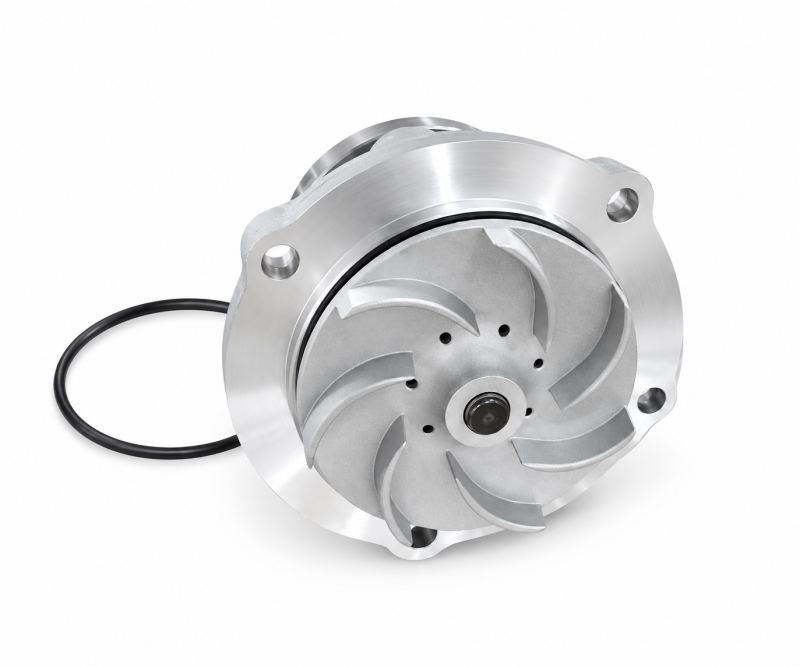

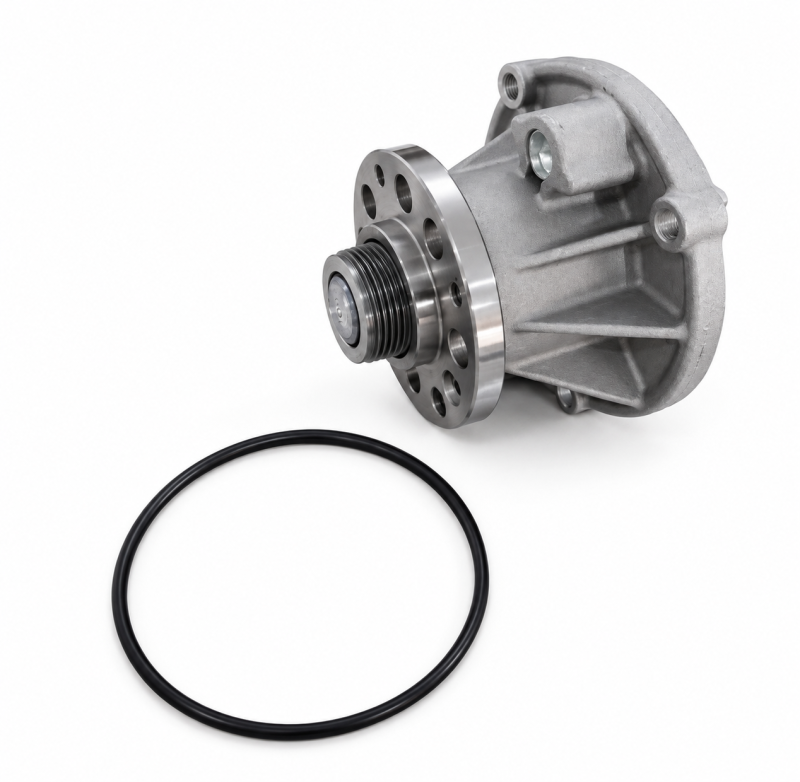

The AVP WTRPF60-100 Water Pump is a direct-fit replacement for 2004.5–2010 Ford 6.0L Power Stroke diesel engines equipped with the later 100mm water-pump/front-cover configuration. It uses an aluminum housing and a cast-aluminum 100mm impeller, providing a durable replacement for the later-style 6.0L cooling-system layout.

Ford transitioned the 6.0L Power Stroke from an early 90mm water-pump arrangement to the later 100mm configuration during the 2004 model year. Later-production trucks commonly use the 100mm pump, while early trucks can use this water pump only if their engine has been converted to a compatible 100mm front cover. Compatible cover references include Ford 4C3Z-6019-C and 5C3Z-6019-BB, AVP 5C3Z6019D, and compatible EFCIK-F60 or EFCK-F60 conversion kits.

The water pump is responsible for circulating coolant throughout the engine and cooling system. A pump with a failing bearing, leaking seal, damaged impeller, or reduced flow can contribute to overheating, coolant loss, noise from the front of the engine, or reduced cooling-system performance. Replacing a worn pump during front-cover, coolant-system, belt-drive, or major engine service is a practical preventive-maintenance step.

This AVP pump cross-references 4C3Z-8501-A, 4C3Z-8501-B, 4C3Z-8501-C, AP63503, PW491, SWF-63503, 300980, WP02201, BOTWP02201, WP0560B, and WP:WP60-S. Confirm that your truck has the 100mm front cover and 100mm pump opening before ordering. Early 6.0L engines with their original 90mm front cover require the corresponding 90mm water pump instead.
