AVP Camshaft/Timing Front Cover Complete Kit for Ford (2003-07) 6.0L Power Stroke 4x4 F-Series (100mm Water Pump)

The AVP Complete Engine Front Cover Kit provides a coordinated replacement package for 2003-2007 Ford F-Series 4x4 trucks equipped with the 6.0L Power Stroke. All components are brand new, making this kit a practical option for front cover repairs, low-pressure oil pump replacement, or engine rebuilds.

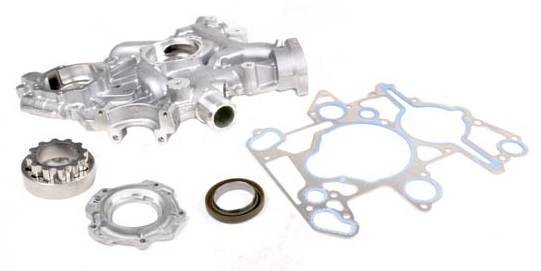

Each kit includes the engine front cover, cover gasket, low-pressure oil pump (LPOP), oil pump gear cover, oil pressure relief valve, 100mm water pump, upper and lower radiator hoses, and installation hardware. The supplied AVP radiator hoses are Kevlar reinforced.

This kit also upgrades earlier trucks originally equipped with a 90mm water pump to the 100mm water pump configuration. Because the water pump must match the front cover, the conversion uses the supplied cover and 100mm pump together. The included lower radiator hose accommodates the updated cover's coolant outlet arrangement, while the upper radiator hose completes the radiator hose replacement.

Kit Contents

• Engine front cover
• Front cover gasket
• Low-pressure oil pump (LPOP)
• Oil pump gear cover
• Oil pressure relief valve
• 100mm water pump
• AVP Kevlar-reinforced upper radiator hose
• AVP Kevlar-reinforced lower radiator hose
• Installation hardware

Fitment and Upgrade Notes

• Fits 2003-2007 Ford F-Series 4x4 trucks with the 6.0L Power Stroke.
• Suitable for earlier trucks with the original 90mm water pump when installed as the complete supplied conversion package.
• Use the supplied 100mm water pump with the supplied front cover; do not reinstall an earlier 90mm pump.

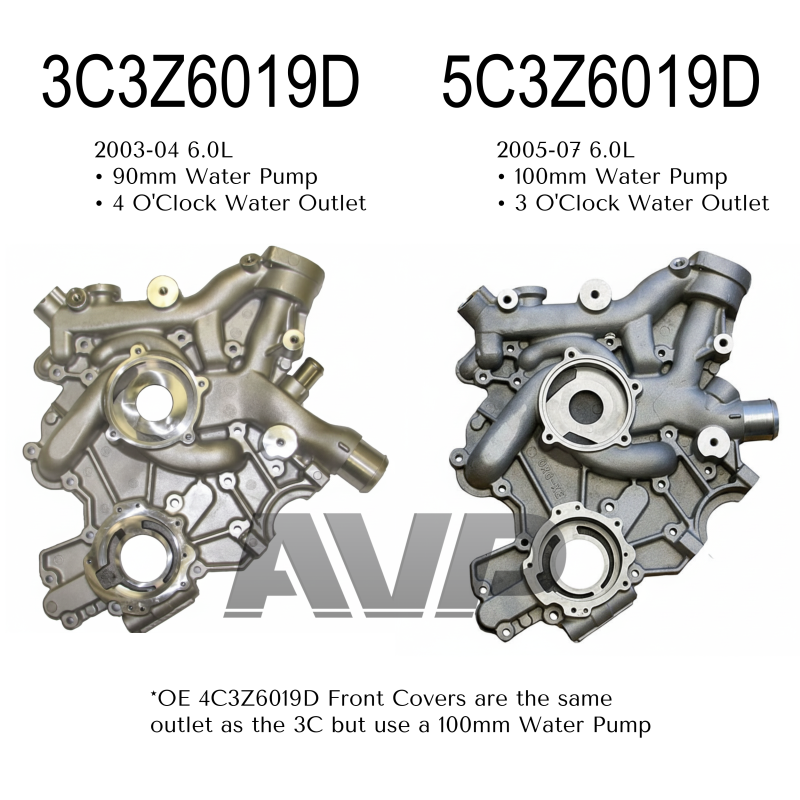

• Earlier and later front covers have different coolant outlet configurations. Use the supplied radiator hoses for this kit's configuration.
• Previously modified trucks should have their existing cooling-system layout checked before installation.

Ford OE Component Reference Numbers

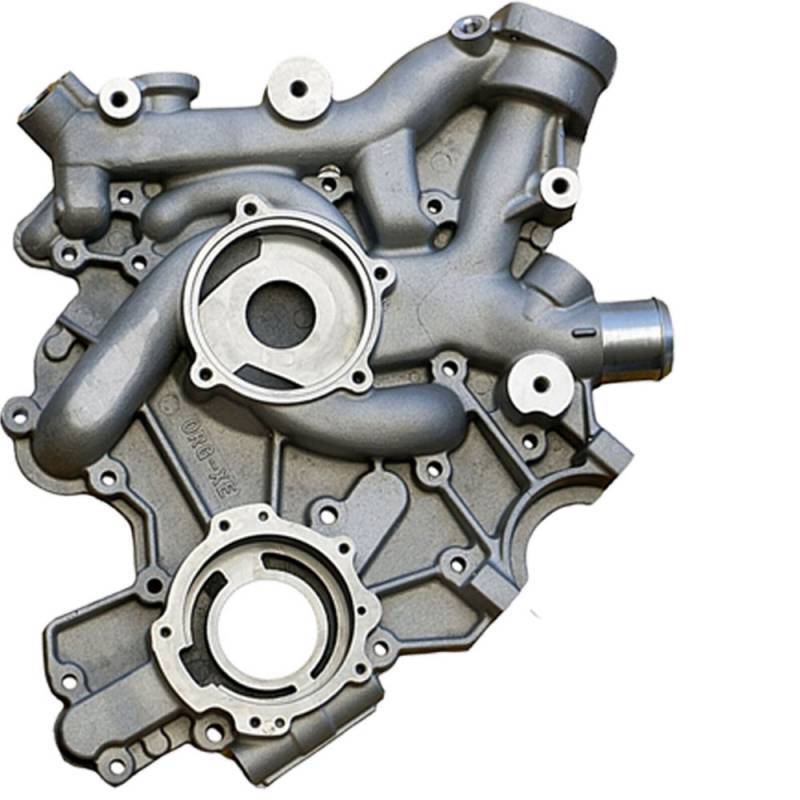

• Later-style front cover assembly: 5C3Z-6608-B
• Later-style front cover housing: 5C3Z-6019-BB
• Front cover gasket kit: 3C3Z-6020-CA
• Low-pressure oil pump gear set: 3C3Z-6608-BA
• Oil pump gear cover: 3C3Z-6616-BA
• Oil pressure relief valve: 3C3Z-6C751-A
• 100mm water pump references: 4C3Z-8501-AC, 4C3Z-8501-C
• Upper radiator hose: 3C3Z-8260-AG
• Later-style lower radiator hose: 5C3Z-8286-DH

Earlier Front Cover Assembly References

3C3Z-6608-B and 4C3Z-6608-B identify earlier front cover assemblies. This AVP kit provides a complete conversion/replacement package for the specified 4x4 F-Series applications. These earlier numbers should not be interpreted as confirming that an individual later-style cover is interchangeable without the matching water pump and hose configuration.
