Fox 2.0 Performance Series Reservoir Smooth Body Shocks for Ford (2005-16) F-250/F-350 Super Duty 4WD (Rear, Lifted 4"-6")
985-24-106

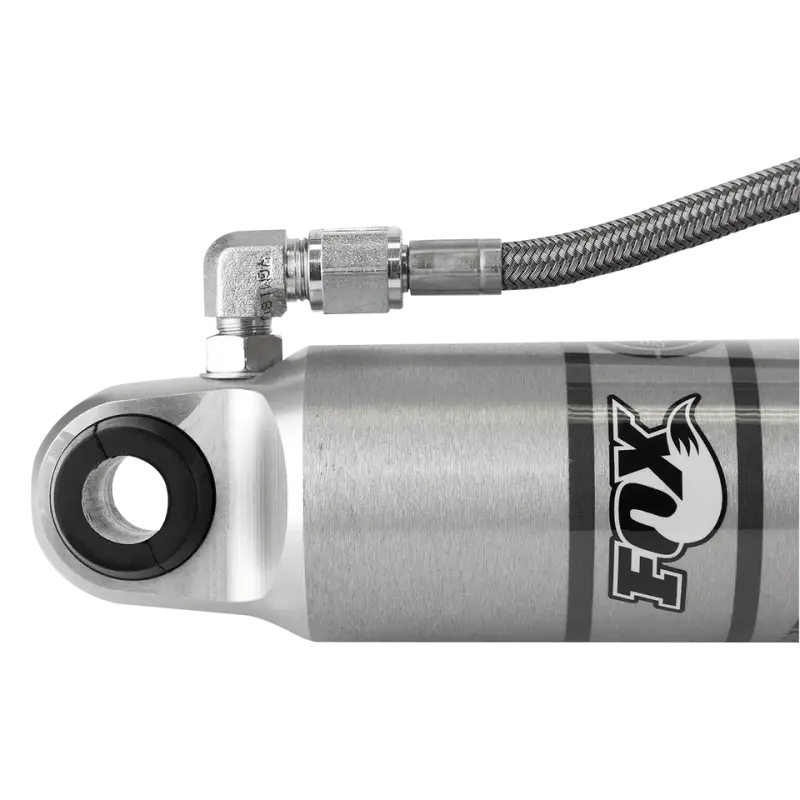

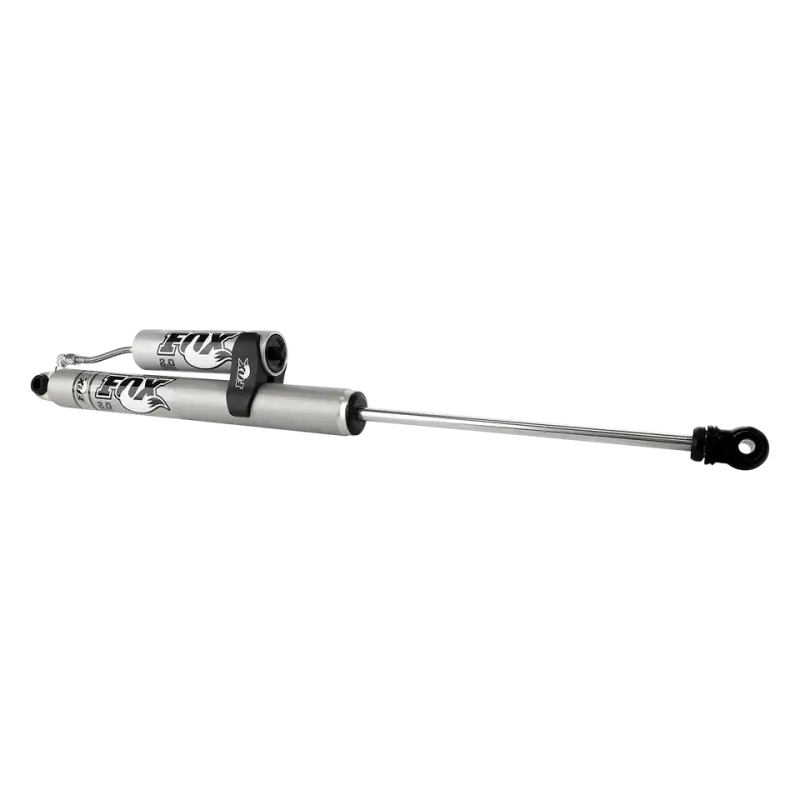

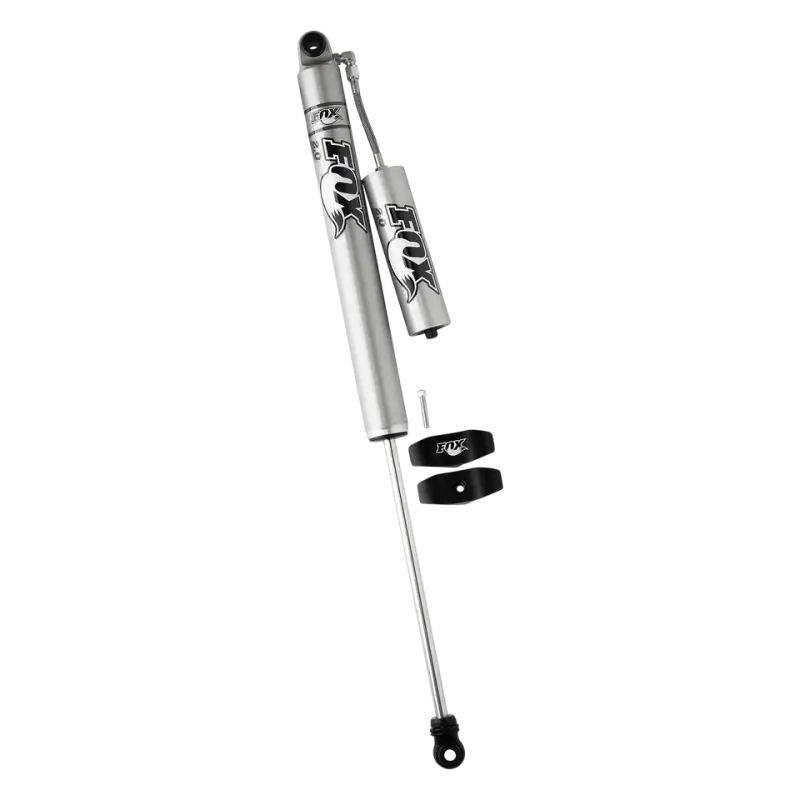

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Pricing:
$356.99
Description
Specifications:
•SERIES Performance
•TRAVEL 14.12
•BODY 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
•BODY PLATING Clear-anodized for a durable finish
•COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
•SHAFT 5/8" hard chrome plated heat-treated alloy steel
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
•EXTENDED LENGTH 35.02
•COMPRESSED LENGTH 20.9
•TOP MOUNT Eyelet
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Includes Billet Reservoir Clamp
Fitment:
2005 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2006 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2007 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2008 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2009 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2010 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2011 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2012 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2013 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2014 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2015 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2016 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2005 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2006 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2007 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2008 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2009 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2010 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2011 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2012 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2013 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2014 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2015 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2016 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
•SERIES Performance
•TRAVEL 14.12
•BODY 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
•BODY PLATING Clear-anodized for a durable finish
•COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
•SHAFT 5/8" hard chrome plated heat-treated alloy steel
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
•EXTENDED LENGTH 35.02
•COMPRESSED LENGTH 20.9
•TOP MOUNT Eyelet
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Includes Billet Reservoir Clamp
Fitment:
2005 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2006 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2007 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2008 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2009 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2010 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2011 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2012 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2013 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2014 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2015 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2016 Ford F-250 Super Duty All 4WD All All Rear 4"-6"
2005 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2006 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2007 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2008 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2009 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2010 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2011 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2012 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2013 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2014 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2015 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
2016 Ford F-350 Super Duty All 4WD All All Rear 4"-6"
Details
- 985-24-106
- 985-24-106
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 4.8 lbs.
- W6.0000” x H3.0000” x L42.0000”
- Free Shipping
