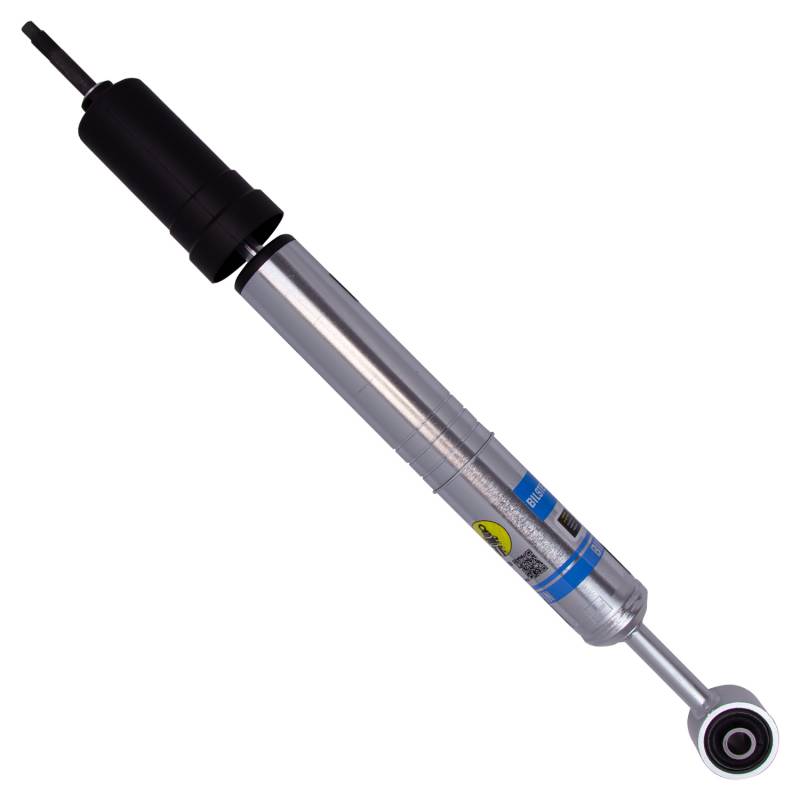

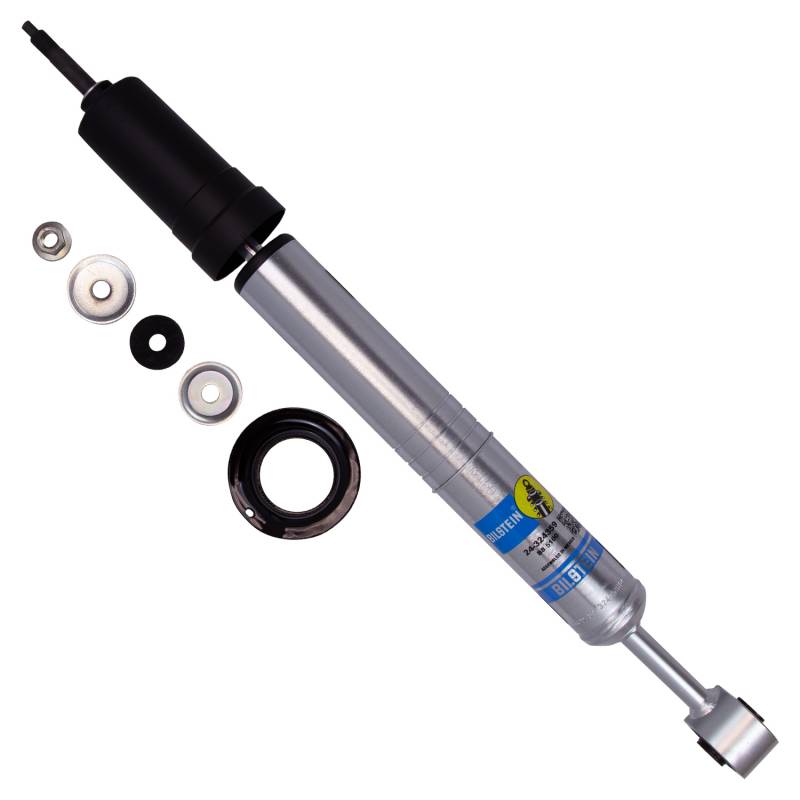

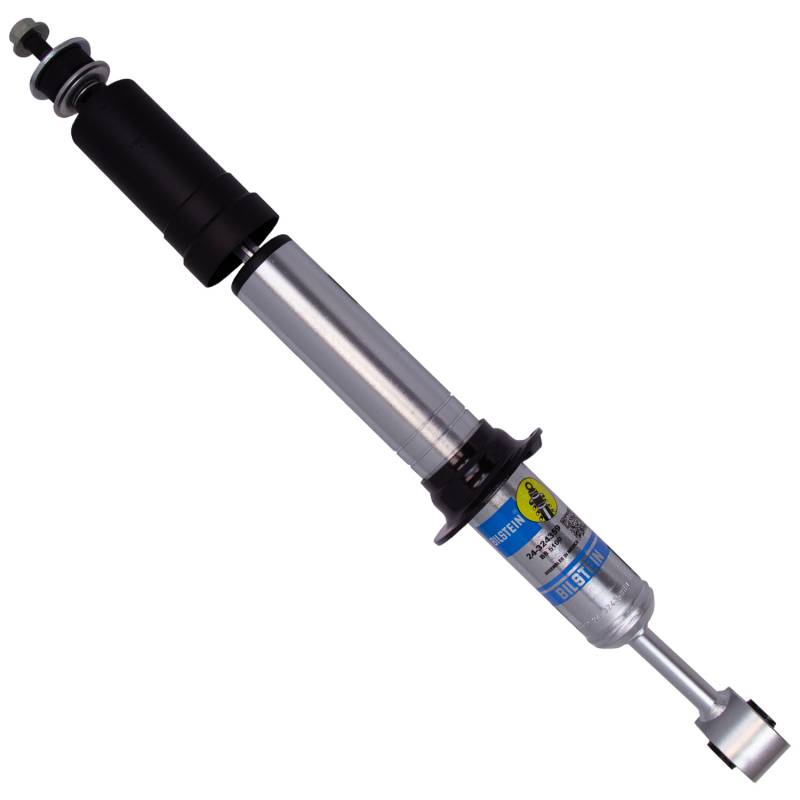

BILSTEIN B8 5100 Series (Ride Height Adjustable) - Suspension Shock Absorber for Lexus (2003-09) GX470 | Toyota (2003-09) 4-Runner / (2007-09) FJ Cruiser / (2005-15) Tacoma
24-324359
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Pricing:
$246.99
Description
Specifications:
•Collapsed Length (in): 17.03
•Extended Length (in): 22.59
•Collapsed Length (mm): 432.5
•Extended Length (mm): 573.7
•Stroke/travel Length (in): 5.56
•Lower Mount Type: Eye 14.2mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Straight

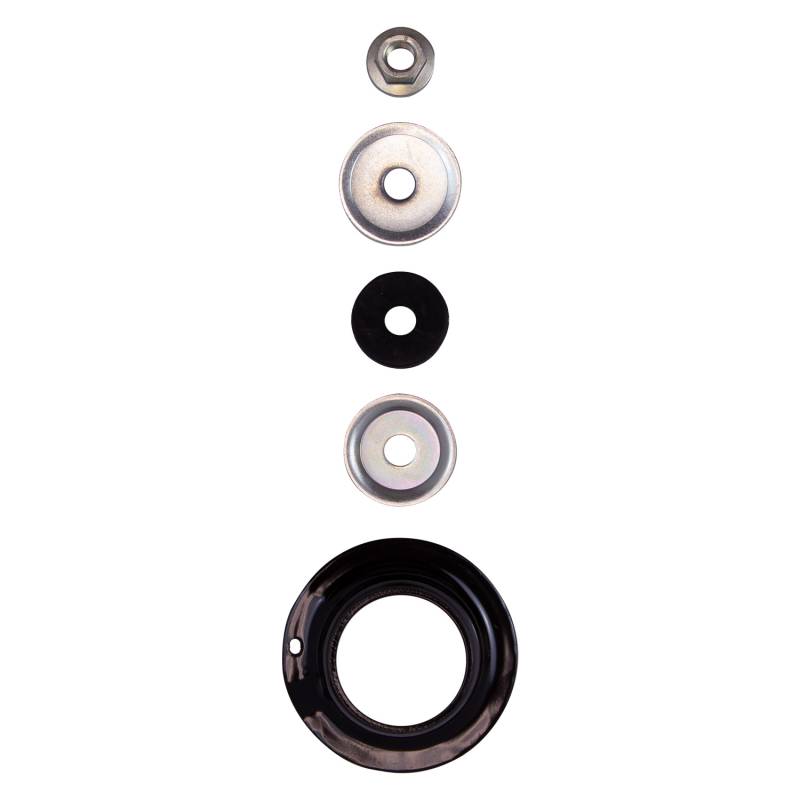

•Replacement Mounting Kit: B4-KT1-Z333A01
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Lexus GX470 2003-2009
Toyota 4Runner 2003-2009
Toyota FJ Cruiser 2007-2009
Toyota Tacoma 2005-2015
Interchange Numbers
•Bilstein 24-186711
•Bilstein 24-239370
•Bilstein BE5-C475
•Bilstein F4-BE5-C475-H1
•BQNV 24324359
•FOX Offroad Shocks 985-62-010
•Rancho RS77777
•Collapsed Length (in): 17.03
•Extended Length (in): 22.59
•Collapsed Length (mm): 432.5
•Extended Length (mm): 573.7
•Stroke/travel Length (in): 5.56
•Lower Mount Type: Eye 14.2mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Straight
•Replacement Mounting Kit: B4-KT1-Z333A01
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Lexus GX470 2003-2009
Toyota 4Runner 2003-2009
Toyota FJ Cruiser 2007-2009
Toyota Tacoma 2005-2015
Interchange Numbers
•Bilstein 24-186711
•Bilstein 24-239370
•Bilstein BE5-C475
•Bilstein F4-BE5-C475-H1
•BQNV 24324359
•FOX Offroad Shocks 985-62-010
•Rancho RS77777
Details
- 24-324359
- 24-324359
- 651860887005
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 6.0 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
