BILSTEIN B8 5100 Series (Ride Height Adjustable) - Suspension Shock Absorber for Lexus (2010-23) GX460 | Toyota (2010-24) 4-Runner / (2010-14) FJ Cruiser
24-328258

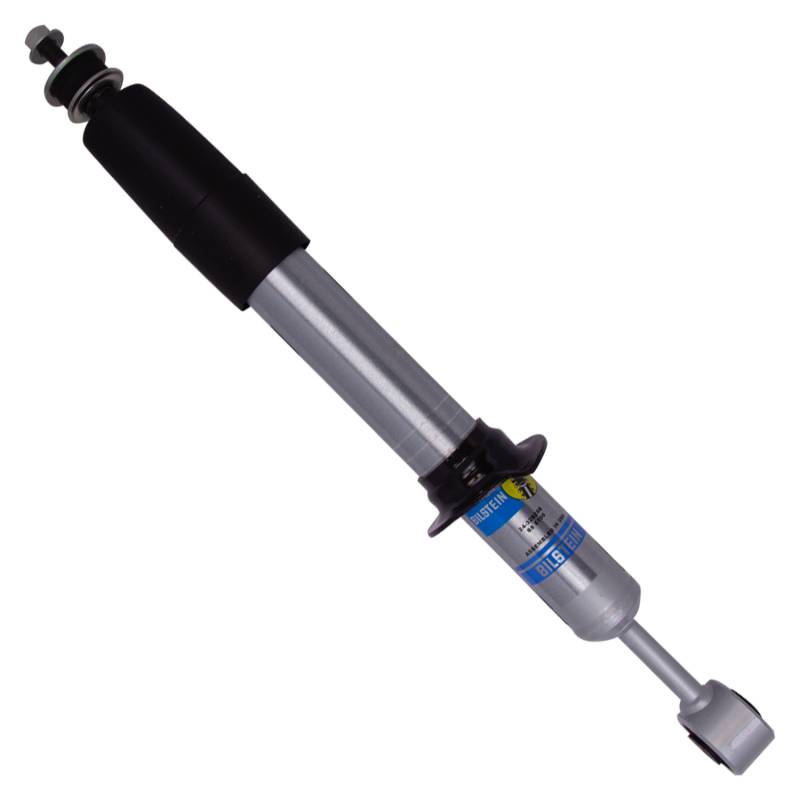

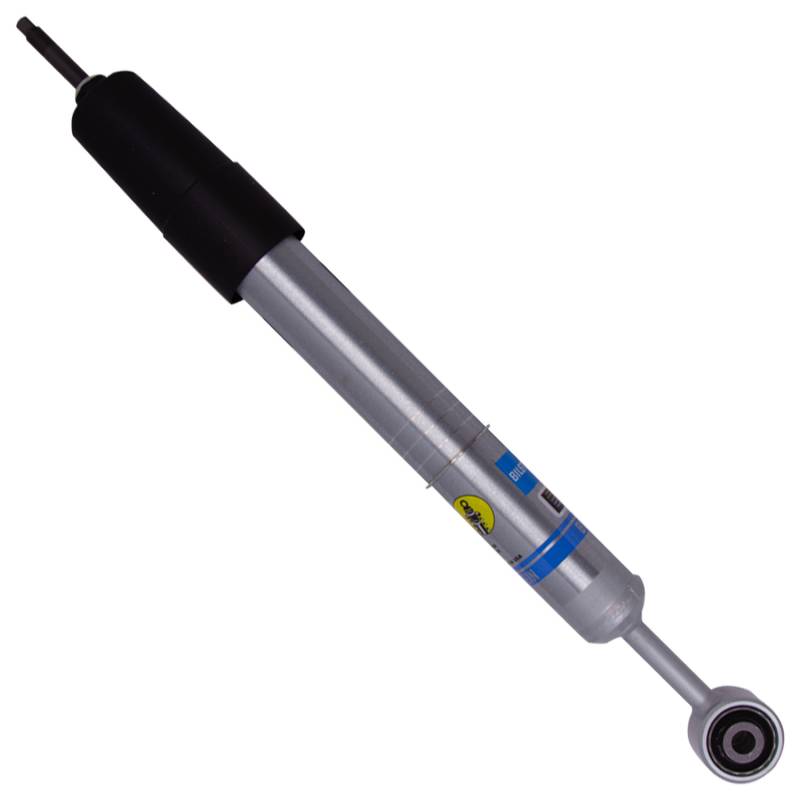

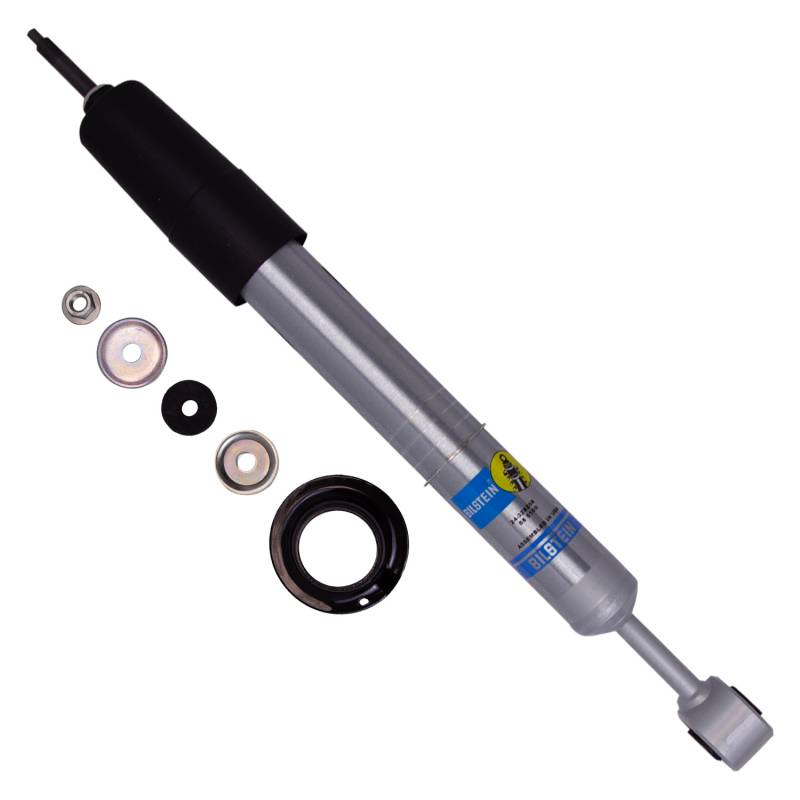

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Pricing:
$246.99
Description
Specifications:
•Collapsed Length (in): 13.46
•Extended Length (in): 21.20
•Collapsed Length (mm): 342.0
•Extended Length (mm): 538.5
•Stroke/travel Length (in): 7.76
•Lower Mount Type: Eye 14.4mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows

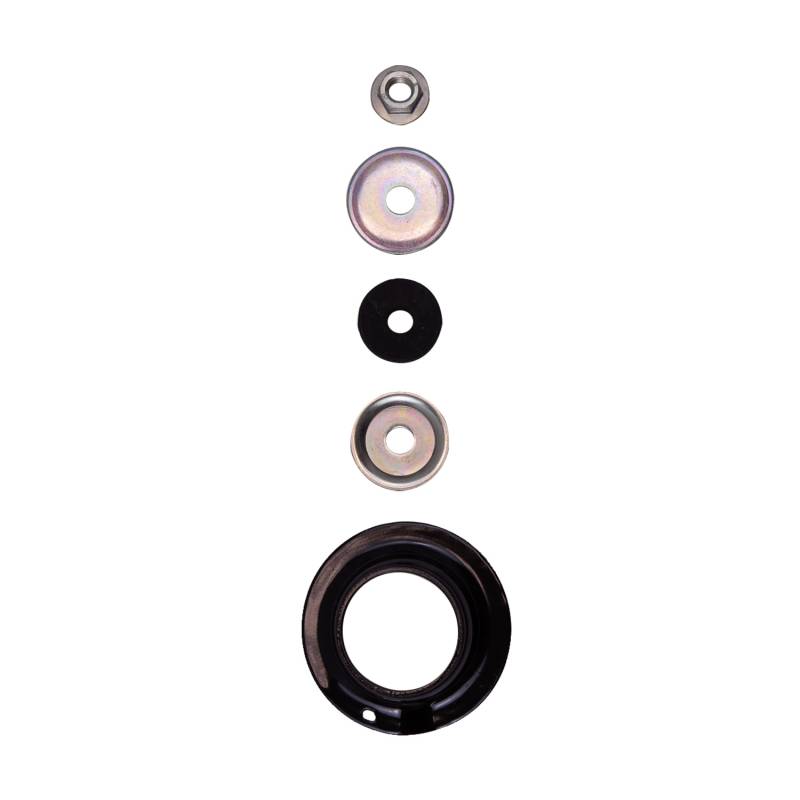

•Replacement Mounting Kit: B4-KT1-Z223A02
•Spring Seat Included: No
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Lexus GX460 2010-2023,
Toyota 4Runner 2010-2024, FJ Cruiser 2010-2014
Interchange Numbers
•AutoZone 595295
•BQNV 24274951
•FOX Offroad Shocks 985-24-155
•Rancho RS77043
•Collapsed Length (in): 13.46
•Extended Length (in): 21.20
•Collapsed Length (mm): 342.0
•Extended Length (mm): 538.5
•Stroke/travel Length (in): 7.76
•Lower Mount Type: Eye 14.4mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows
•Replacement Mounting Kit: B4-KT1-Z223A02
•Spring Seat Included: No
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Lexus GX460 2010-2023,
Toyota 4Runner 2010-2024, FJ Cruiser 2010-2014
Interchange Numbers
•AutoZone 595295
•BQNV 24274951
•FOX Offroad Shocks 985-24-155
•Rancho RS77043
Details
- 24-328258
- 24-328258
- 651860896977
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 5.2 lbs.
- W3.0000” x H3.0000” x L23.0000”
