MAHLE Clevite Pistons w/ Rings, Chevy/GMC (2001-05) 6.6L Duramax, 0.000 over (standard size) Left Bank (MUST ORDER SET OF 4)
224-3451WR
MAHLE Clevite Pistons w/ Rings, Chevy/GMC 6.6L Duramax, 0.000 over (standard size) Left Bank (MUST ORDER SET OF 4)
•Material: Aluminum
•Head Type: Flat w/Combustion Chamber
•Engine Side: Left Bank
•Bore: 4.055" (103mm)
•Compression Height: 1.961"
•Pin Diameter: 1.3580"
•Minimum Skirt Clearance: 0.0018"
•Measure Skirt Clearance at Rings: 0.670" from the bottom of skirt
•Ring Sizes:
•-3.00mm
•-2.00mm
•-3.00mm
•Material: Aluminum
•Head Type: Flat w/Combustion Chamber
•Engine Side: Left Bank
•Bore: 4.055" (103mm)
•Compression Height: 1.961"
•Pin Diameter: 1.3580"
•Minimum Skirt Clearance: 0.0018"
•Measure Skirt Clearance at Rings: 0.670" from the bottom of skirt
•Ring Sizes:
•-3.00mm
•-2.00mm
•-3.00mm
Availability:
Was:
$193.00
Sale:
$167.83
Save:
13%
Save:
$25.17
Description
Interchanges
General Motors: 97226116, 97303755

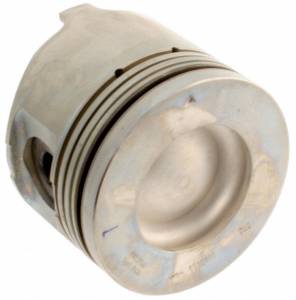

*Image is not of this piston.
*Must order 4 for Complete Left Bank*
General Motors: 97226116, 97303755
*Image is not of this piston.
*Must order 4 for Complete Left Bank*
Details
- 224-3451WR
- 224-3451WR
- Mahle
- New
Categories
Shipping Information
- Item Requires Shipping
- 16.0 lbs.
- W7.0000” x H7.5000” x L15.0000”
- Free Shipping
