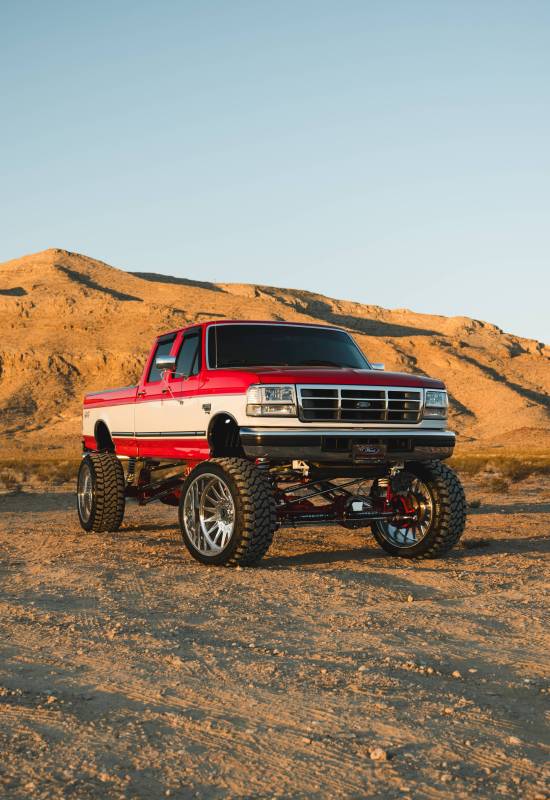

RYD 4-8 Inch Front & Rear Coilover Kit for Ford (1987-97) F-150/F-250/F-350 (OBS to 05-16 Superduty Axle Swap)

The RYD 4–8" Front and Rear Coilover Kit is designed for 1987–1997 Ford F-150, F-250, and F-350 OBS trucks on 2WD or 4WD frames that are being built around 2005–2016 Super Duty axles. It is offered for regular cab, super cab, and crew cab trucks and brings both ends of the truck onto coilover suspension in a single, coordinated package.

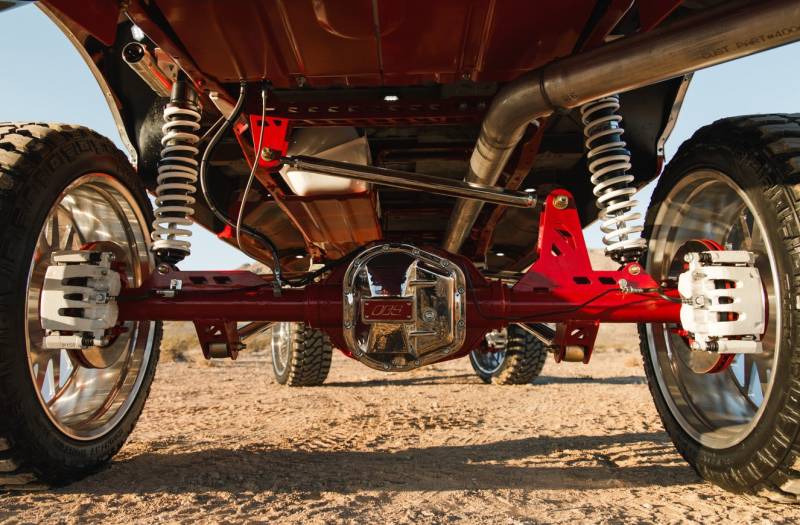

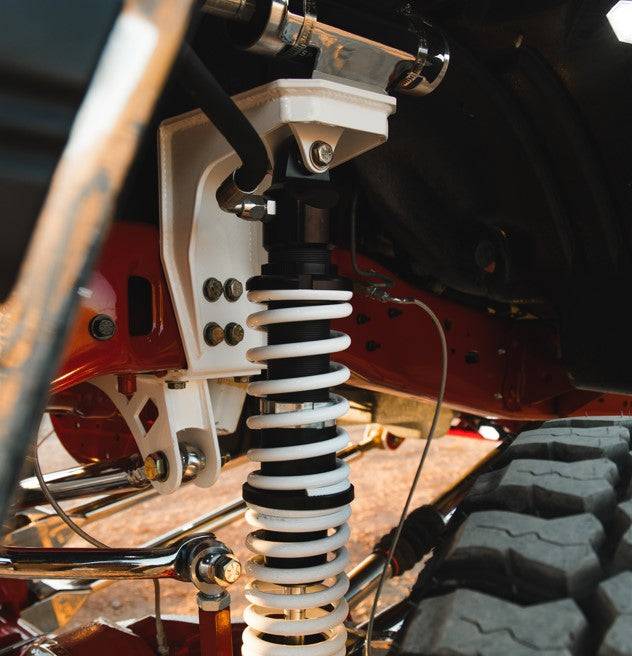

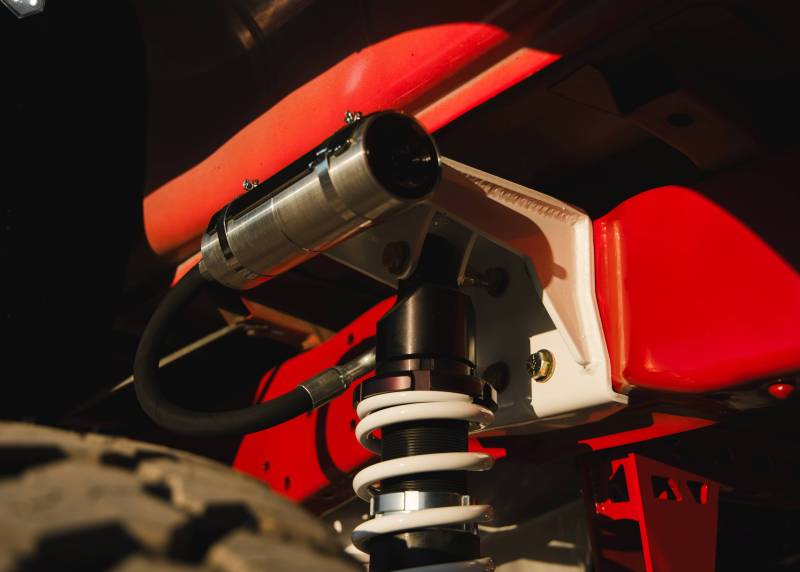

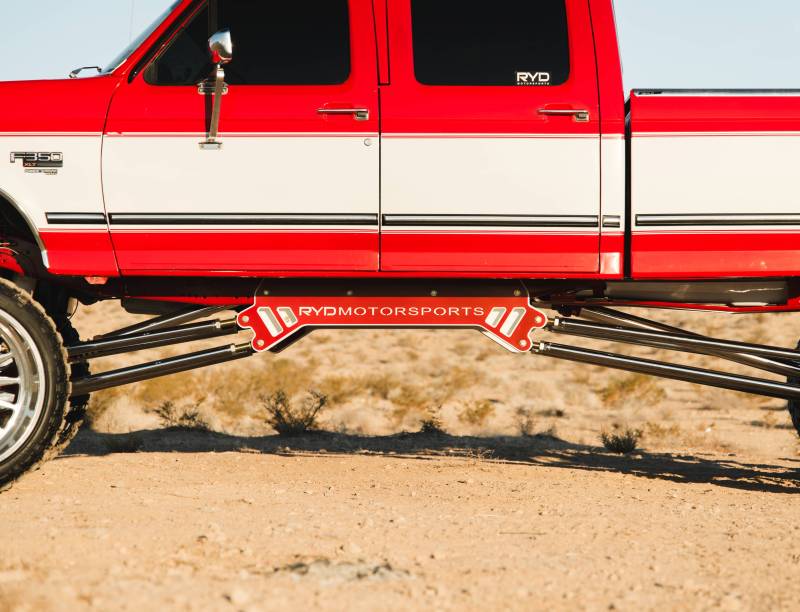

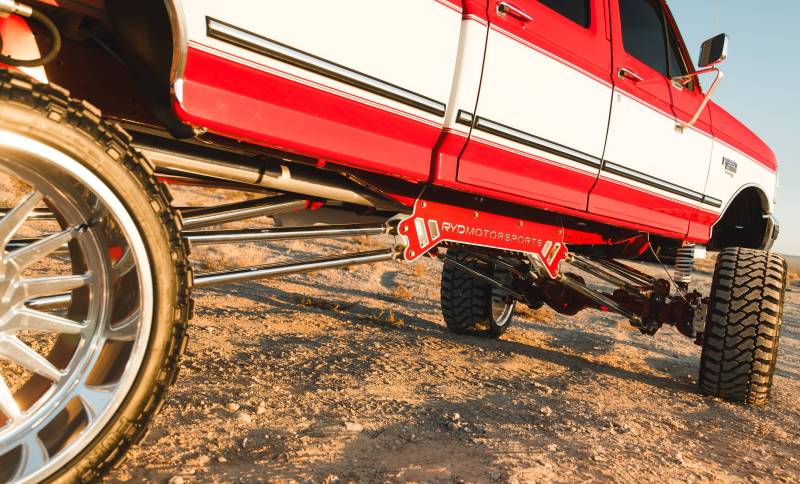

At the heart of the kit are front and rear 2" DOM 4 link bars mounted to center cradles with overlays. Coilover buckets and axle mounts are supplied for the front and rear, along with front and rear trac bar kits sized for the 4–8" lift range. Front and rear mini trusses are also part of the package to reinforce the axle side of the setup.

RYD rounds the kit out with the supporting pieces that a swap like this usually needs: front sway bar brackets with end links, brake lines, conversion U-joints and a rear flange, and a transmission crossmember for either the E4OD automatic or the ZF5 manual. Having these in one kit cuts down on the parts sourcing that normally slows a full Super Duty axle conversion.

Coilovers are not part of this kit. RYD specifies them for the build and sells them separately, so plan on adding them, along with the 2005–2016 Super Duty axles themselves, to complete the truck.

This is a made-to-order, off-road-only system intended for heavily modified OBS trucks.

**This kit is to be used with 2005–2016 Superduty axles. Coilovers are not included (spec'd and sold separately)**

**Specify cab style (regular, super or crew cab) and E4OD or ZF5 transmission when ordering**

**NOTE THAT ALL SALES ARE FINAL AND WE DO NOT ACCEPT RETURNS OR CANCEL ORDERS FOR ANY REASON**
