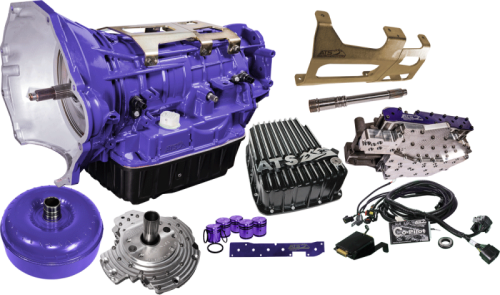

ATS Transmission Package for Dodge/Ram (2007.5-11) 68RFE 6.7L Cummins 2WD, Stage 2

This ATS Stage 2 68RFE transmission package is a complete, matched drivetrain upgrade for 2007.5-2011 6.7L Cummins 2WD. Everything in the package is built by ATS to work together, so you are not mixing a built transmission with a stock converter or controller. Higher stages are built for more horsepower and heavier use, so match the stage to your power level and how you use the truck.

ATS Diesel Performance has built diesel transmissions and performance parts since 1993. ATS designs, engineers, and manufactures most of its products in-house at its Arvada, Colorado facility, and tests them at altitude on the same long grades its customers tow on.

Stage Comparison

• Stage 1: ATS 2WD 68RFE Performance Automatic Transmission Assembly, ATS 68RFE Workhorse Performance Torque Converter, ATS Co-Pilot Transmission Controller
• Stage 2: ATS 2WD 68RFE Performance Automatic Transmission Assembly, ATS Billet Input Shaft, ATS 68RFE Workhorse Performance Torque Converter, ATS Co-Pilot Transmission Controller
• Stage 3: ATS 2WD 68RFE Performance Automatic Transmission Assembly, ATS Billet Input Shaft, ATS 68RFE Workhorse Performance Torque Converter, ATS Co-Pilot Transmission Controller, ATS Billet Flexplate
• Stage 4: ATS 2WD 68RFE Performance Automatic Transmission Assembly, ATS Billet Input Shaft, ATS 68RFE Workhorse Performance Torque Converter, ATS Co-Pilot Transmission Controller, ATS Billet Flexplate, Heavy-Duty Overdrive Clutch Drum

Specifications

• Part Number: 309-522-2326
• Product Type: Transmission Package
• Transmission: 68RFE
• Stage: 2
• Engine: 6.7L Cummins
• Years: 2007.5-2011
• Drive: 2WD
• Series: Stage 2
• Sold As: Kit
• Warranty: 1 Year/100,000 Mile
• Country of Origin: USA

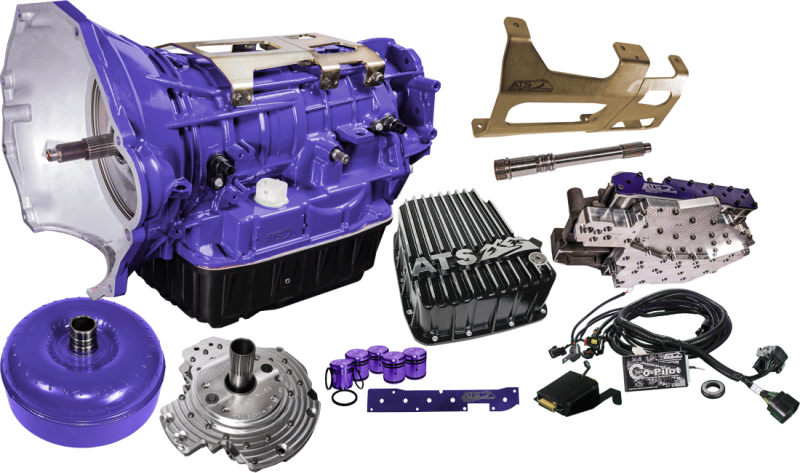

What's Included

• ATS 2WD 68RFE Performance Automatic Transmission Assembly
• ATS Billet Input Shaft
• ATS 68RFE Workhorse Performance Torque Converter
• ATS Co-Pilot Transmission Controller
• ATS Billet Input Shaft Upgrade
• ATS Deep Transmission Pan w/ Drain Plug (increases capacity by 5 quarts)
• ATS Transmission Case Brace (strengthens the transmission case)
• ATS Billet Channel Plate Valve Body (will not warp or crack like the stock cast channel plate)
• ATS Billet Accumulator Pistons w/ Advanced Sealing Design
• ATS Separator Plate and Gaskets
• ATS Extra-Thick Accumulator Cover Plate
• New OEM Solenoid Pack
• ATS Billet Pump Assembly
• Oversized Pump Gears
• Updated Pressure Regulator Valve
• Heavy Duty Stator Bolts
• Reinforced Underdrive and Overdrive Clutch Hubs
• Upgraded Lower Roller Clutch Replaces Weak One-Way Sprag
• Performance Forward Clutch Pack w/ ATS Design Allowing an Additional 21 percent of Surface Are
• Performance Overdrive Clutch Pack w/ ATS Design Allowing an Additional 17 percent of Surface Area

Features

• 68RFE Transmission Package 2WD 2007.5-2018 Dodge RAM 6.7L Cummins
• Stage: Stage 2

Fitment

• 2007-2010 Dodge Ram 2500
• 2007-2010 Dodge Ram 3500
• 2011 Ram 2500
• 2011 Ram 3500

Resources

• ATS product video
