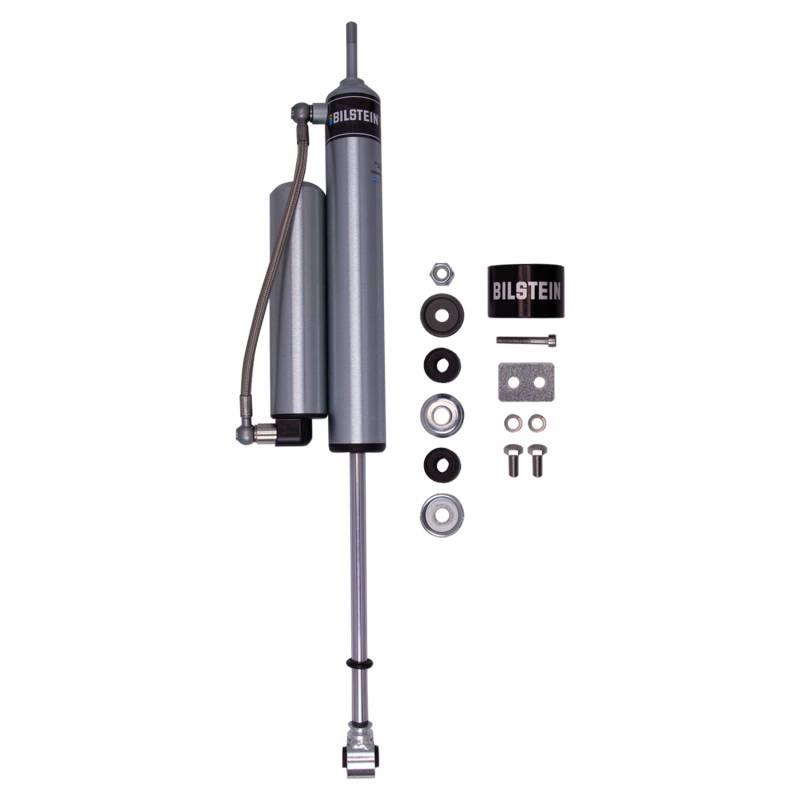

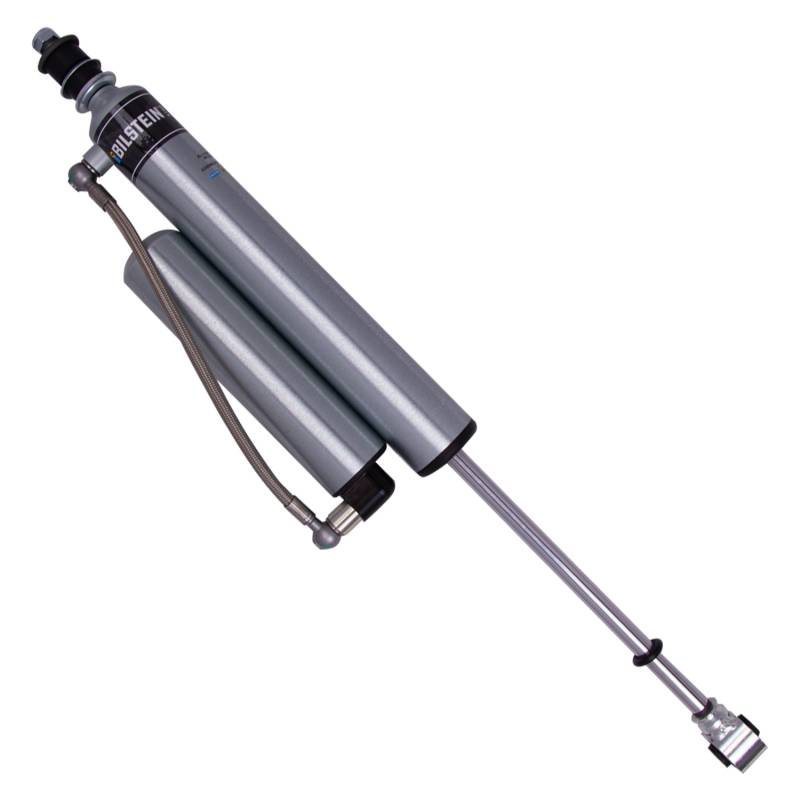

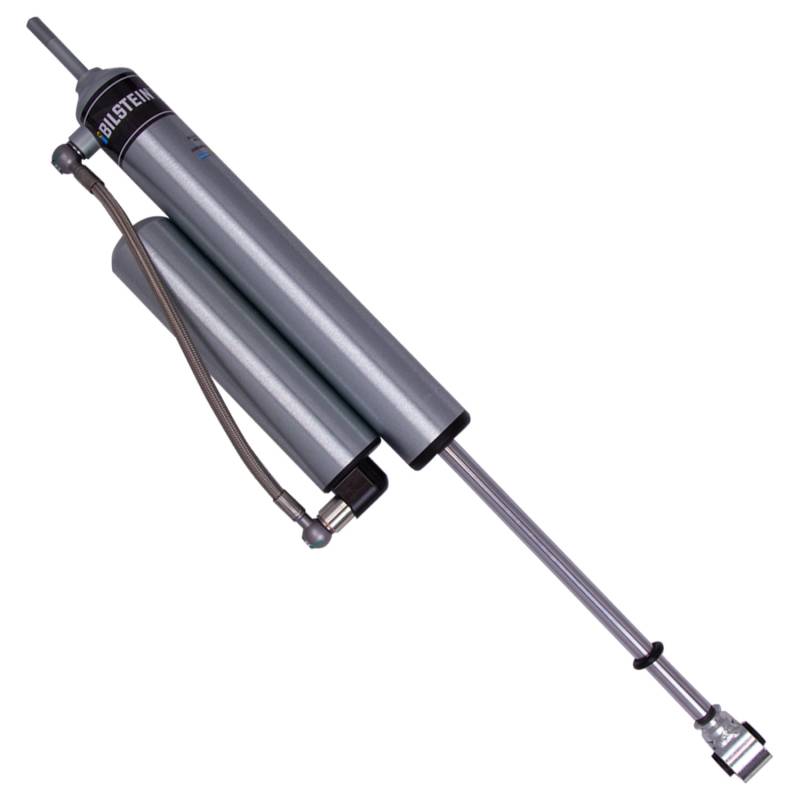

BILSTEIN B8 5160 Series Suspension Shock Absorber for Toyota (2005-23) Tacoma

25-311259
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
Pricing: $299.99

Qty:
Free Shipping

Description

Specifications:
•Collapsed Length (in): 14.22
•Extended Length (in): 23.63
•Collapsed Length (mm): 361.1
•Extended Length (mm): 600.3
•Stroke/travel Length (in): 9.41
•Lower Mount Type: Eye 12mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No

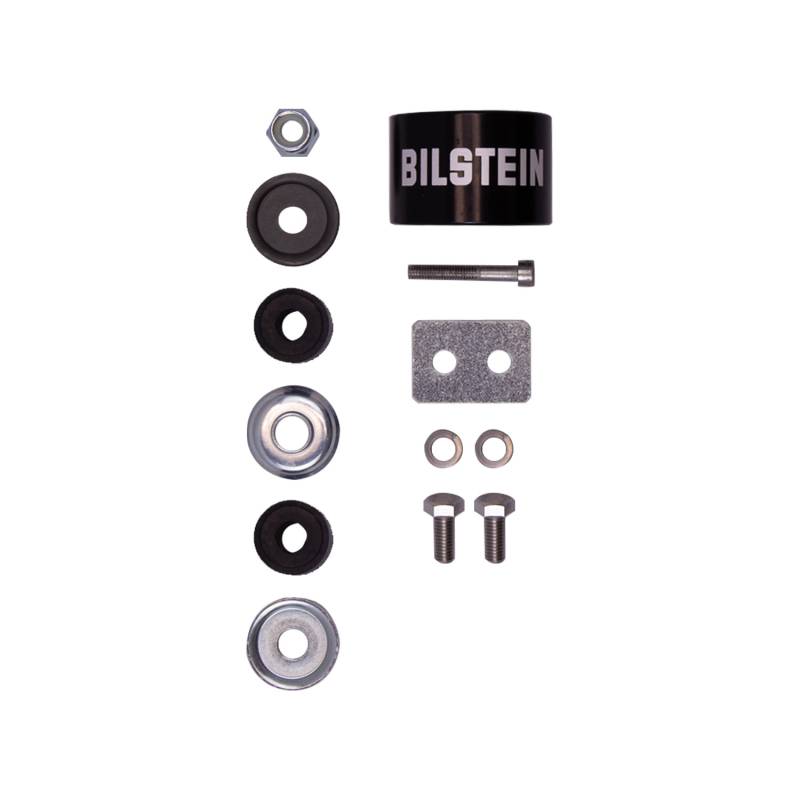

•Replacement Mounting Kit: B4-KT1-Z008A00
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable



Fitment:
Toyota Tacoma 2005-2023

Interchange Numbers
•Bilstein 25-242379
•Bilstein 25-242539
•BQNV 25311259
•FOX Offroad Shocks 985-24-116
•ICON Vehicle Dynamics 56503R

Details

Shipping Information

  • Item Requires Shipping
  • 7.3 lbs.
  • W3.0000” x H3.0000” x L23.0000”
  • Free Shipping
