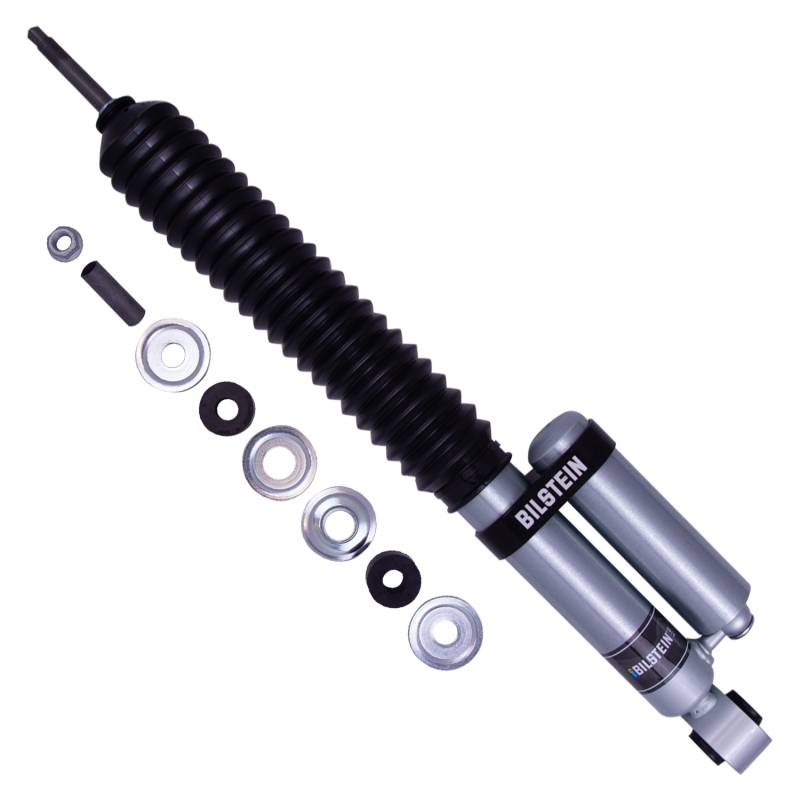

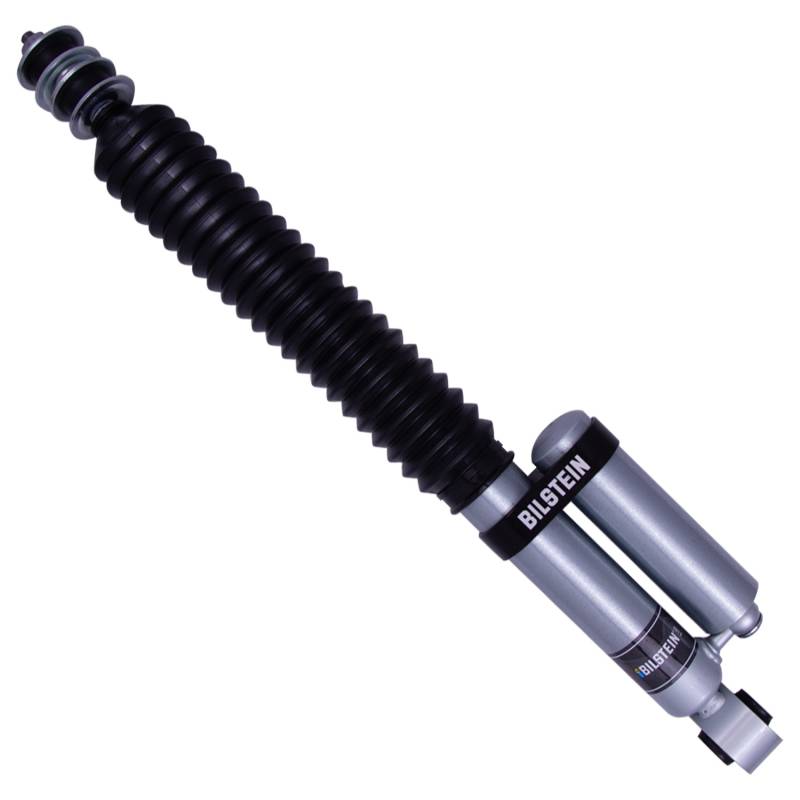

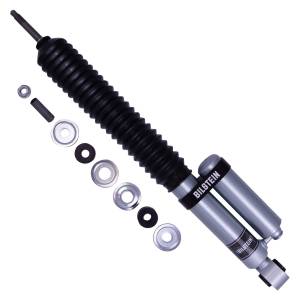

BILSTEIN B8 5160 Series Suspension Shock Absorber for Toyota (2008-11 & 2013-21) Land Cruiser
25-311419
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
Pricing:
$310.99
Description
Specifications:
•Collapsed Length (in): 14.61
•Extended Length (in): 24.17
•Collapsed Length (mm): 371.0
•Extended Length (mm): 614.0
•Stroke/travel Length (in): 9.56
•Lower Mount Type: Eye 19.25mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 18mm
•Adjustable Damping: Non-Adjustable
Fitment:
Toyota Land Cruiser 2008-2011
Toyota Land Cruiser 2013-2021
Interchange Numbers
•Bilstein 25-285529
•BQNV 25311419
•Collapsed Length (in): 14.61
•Extended Length (in): 24.17
•Collapsed Length (mm): 371.0
•Extended Length (mm): 614.0
•Stroke/travel Length (in): 9.56
•Lower Mount Type: Eye 19.25mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: Yes
•Body Design: Smooth Body (Non-Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows
•Spring Seat Included: No
•Billet Reservoir Clamp Included: Yes
•Shaft Diameter: 18mm
•Adjustable Damping: Non-Adjustable
Fitment:
Toyota Land Cruiser 2008-2011
Toyota Land Cruiser 2013-2021
Interchange Numbers
•Bilstein 25-285529
•BQNV 25311419
Details
- 25-311419
- 25-311419
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 8.9 lbs.
- W3.0000” x H3.0000” x L23.0000”
