PPE Aisin AS69RC Heavy-Duty Cast Aluminum Transmission Pan for Dodge/Ram (2013-24) 2500/3500 6.7L Cummins (Black)
228053220
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 4 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

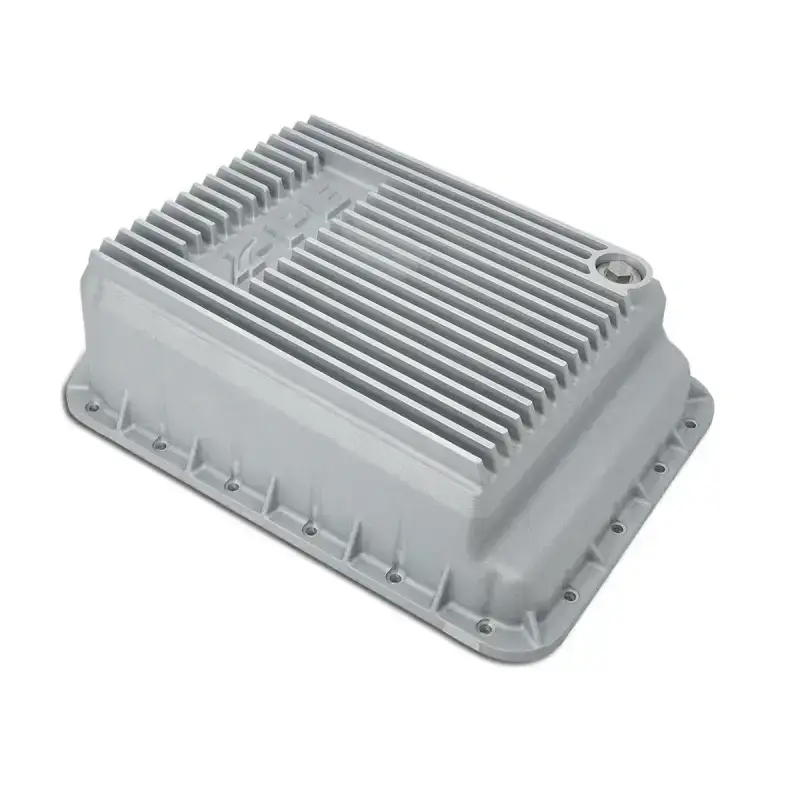

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

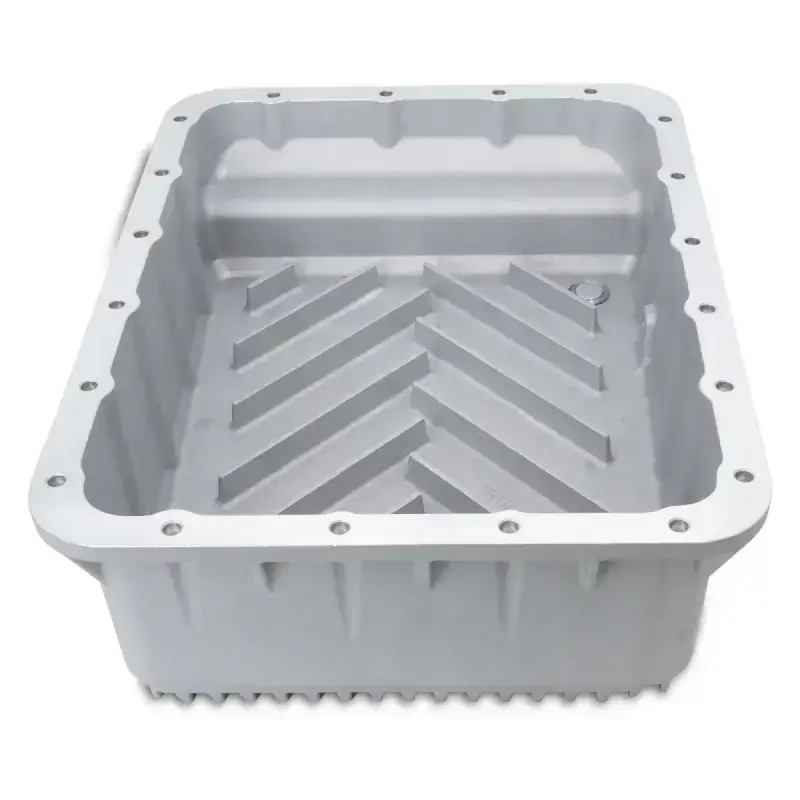

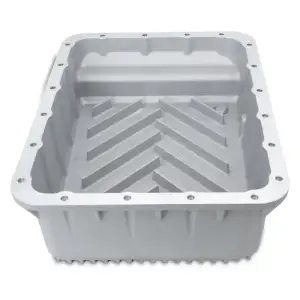

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your Aisin transmission running longer, healthier, and cooler with PPE.
PPE replacement gasket SKU 228053204
OEM P/N REFERENCE: CHRYSLER 68214905AA
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 4 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your Aisin transmission running longer, healthier, and cooler with PPE.
PPE replacement gasket SKU 228053204
OEM P/N REFERENCE: CHRYSLER 68214905AA
Was:
$349.99
Sale:
$314.99
Save:
10%
Save:
$35.00
Description
Features:
•Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
•Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
•Increases fluid capacity by 4 quarts for higher thermal capacity
•Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
•Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
•External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
•Cast-in gussets for additional transmission housing flange support and increased rigidity
•304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
•Equipped with a 1/8-inch NPT port with pre-installed NPT plug
•Compatible with OEM gasket and filter
Fitment:
2024 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2024 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2024 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2024 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2023 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2023 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2023 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2023 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2022 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2022 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2022 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2022 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2021 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2021 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2021 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2021 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2020 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2020 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2020 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2020 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2019 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2019 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2019 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2019 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2018 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2018 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2018 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2018 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2017 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2017 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2017 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2017 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2016 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2016 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2016 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2016 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2015 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2015 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2015 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2015 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2014 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2014 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2014 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2014 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2013 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2013 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2013 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2013 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
•Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
•Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
•Increases fluid capacity by 4 quarts for higher thermal capacity
•Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
•Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
•External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
•Cast-in gussets for additional transmission housing flange support and increased rigidity
•304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
•Equipped with a 1/8-inch NPT port with pre-installed NPT plug
•Compatible with OEM gasket and filter
Fitment:
2024 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2024 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2024 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2024 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2023 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2023 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2023 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2023 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2022 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2022 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2022 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2022 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2021 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2021 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2021 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2021 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2020 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2020 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2020 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2020 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2019 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2019 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2019 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2019 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2018 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2018 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2018 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2018 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2017 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2017 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2017 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2017 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2016 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2016 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2016 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2016 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2015 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2015 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2015 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2015 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2014 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2014 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2014 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2014 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2013 Ram Pickup 3500 6 Cyl 6.7 Liter Turbo
2013 Ram Pickup 2500 6 Cyl 6.7 Liter Turbo
2013 Ram 5500 Chassis Cab 6 Cyl 6.7 Liter Turbo
2013 Ram 4500 Chassis Cab 6 Cyl 6.7 Liter Turbo
Product Videos
Details
- 228053220
- 228053220
- 840171214697
- Pacific Performance Engineering
- New
Categories
Shipping Information
- Item Requires Shipping
- 17.0 lbs.
- W14.0000” x H7.1250” x L18.2500”
- Free Shipping
- This item ships in its own box.
