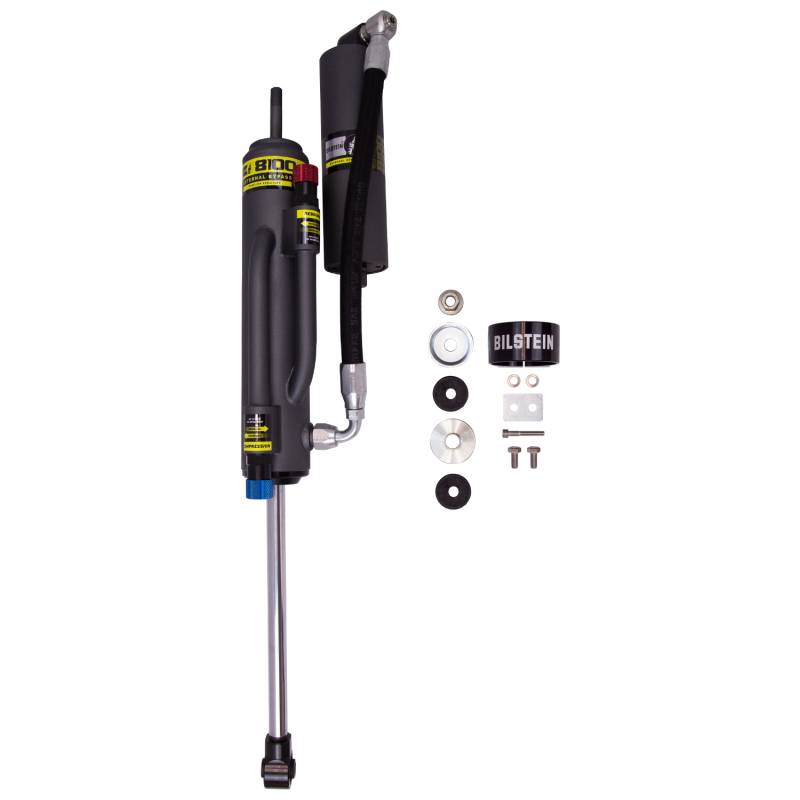

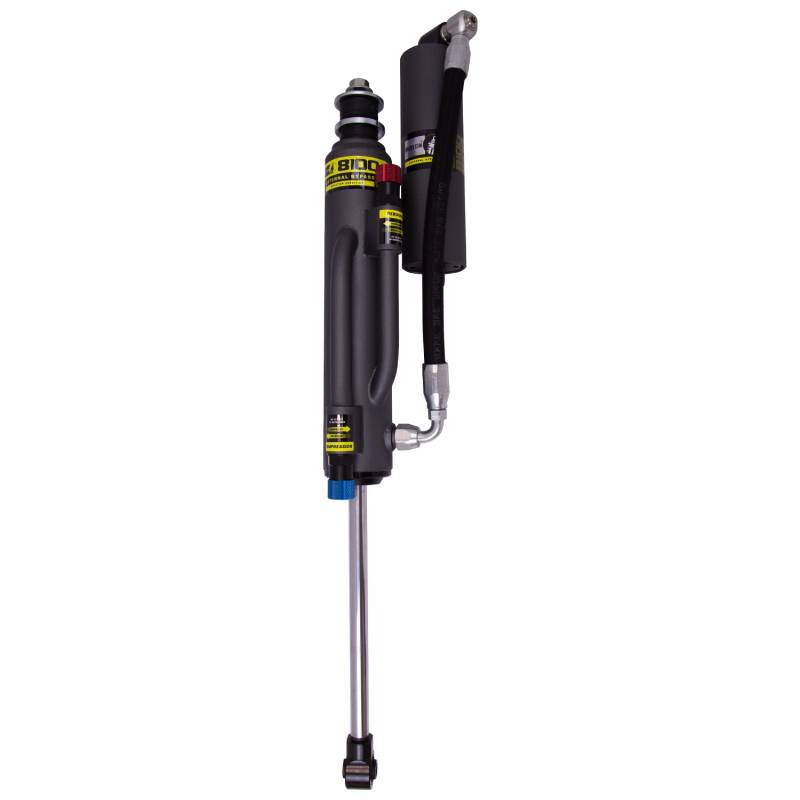

BILSTEIN B8 8100 (Bypass) - Suspension Shock Absorber for Toyota (2005-23) Tacoma
25-320459

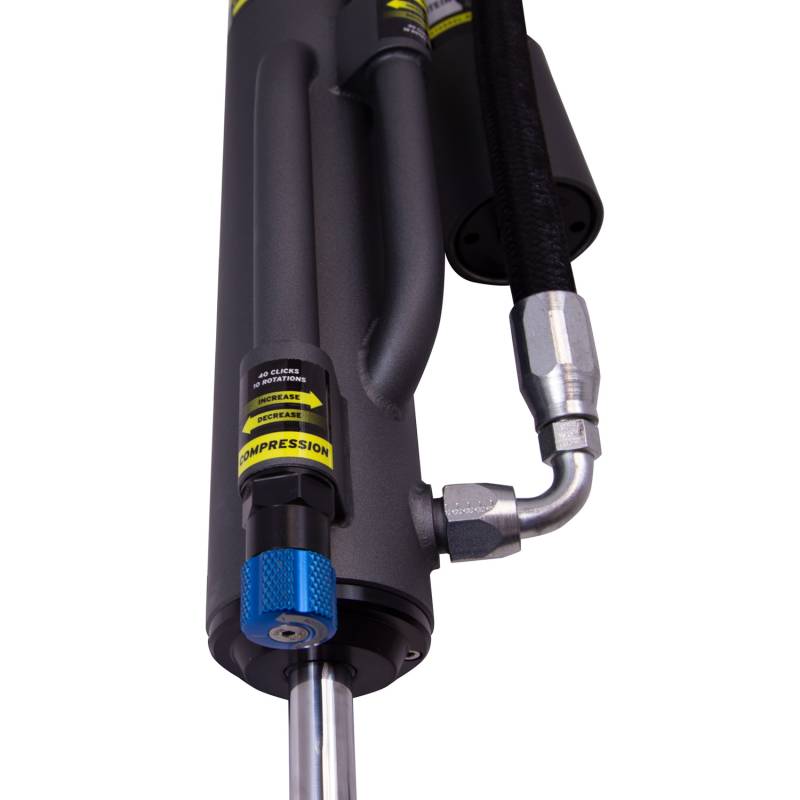

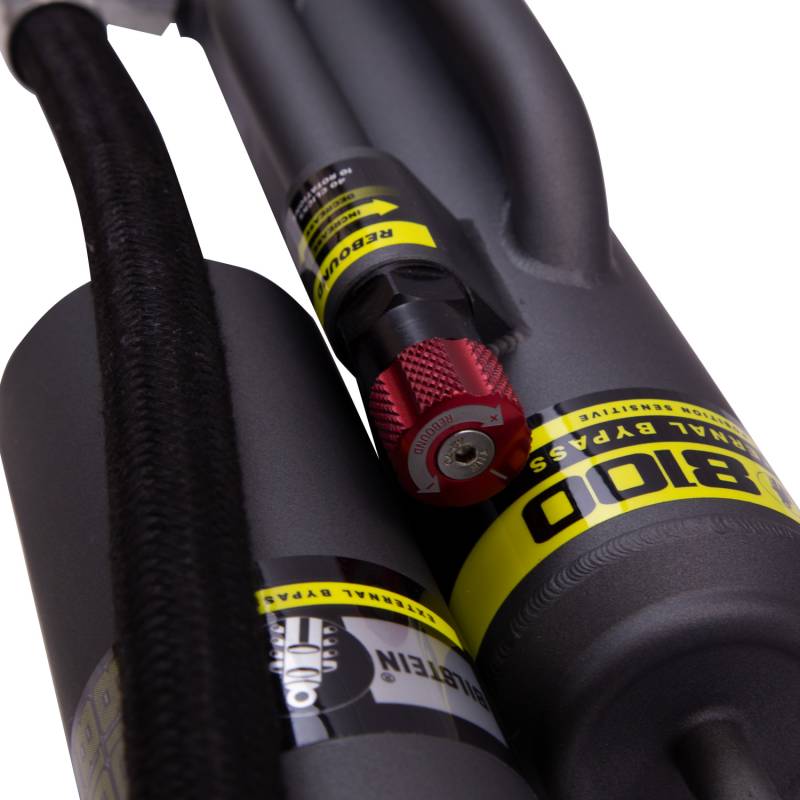

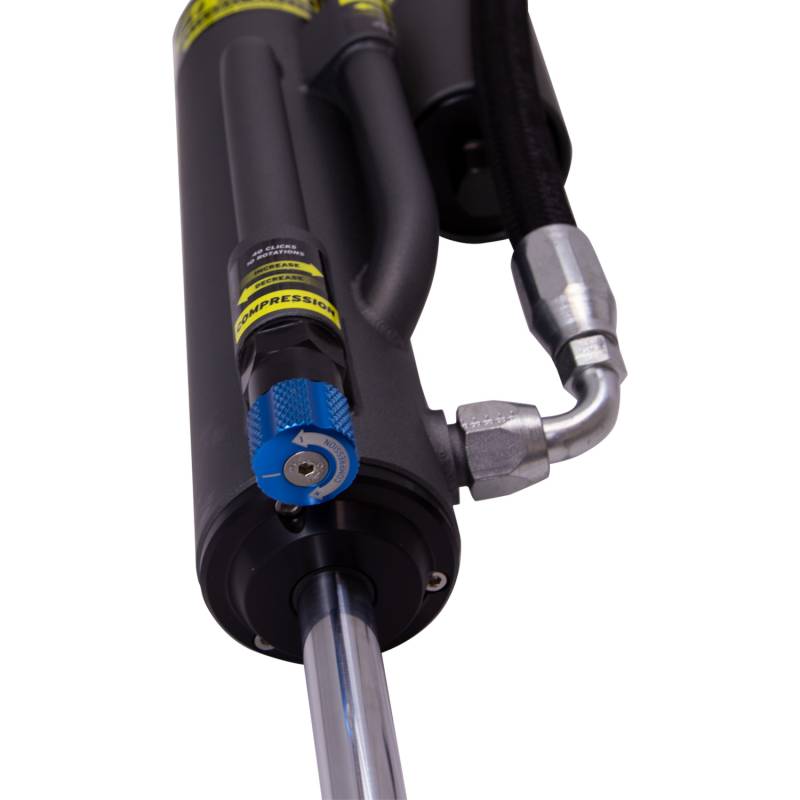

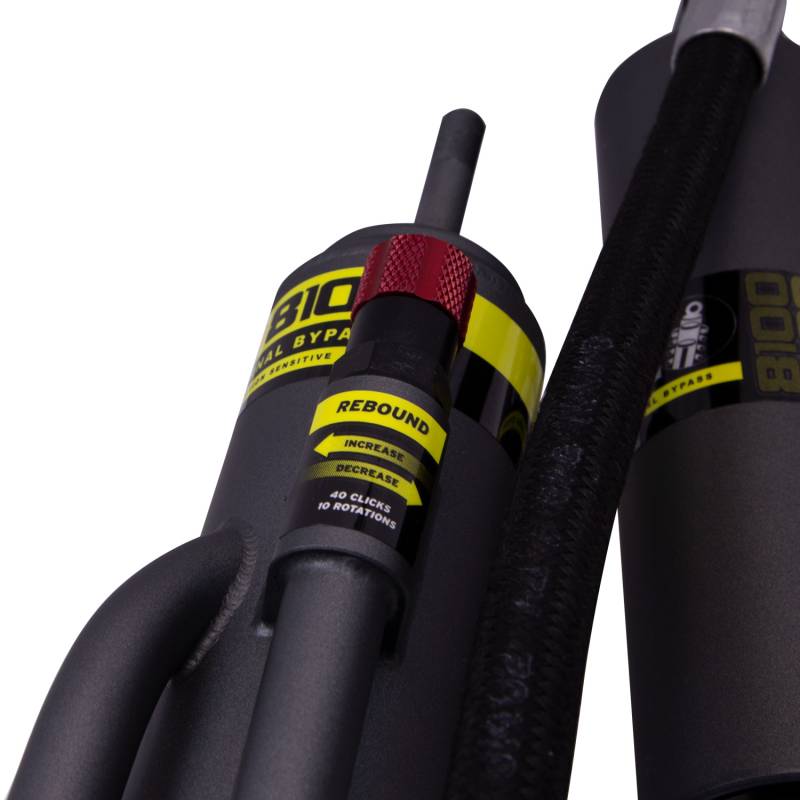

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
Pricing:
$1,328.99
Description
Specifications:
•Collapsed Length (in): 14.25
•Extended Length (in): 23.94
•Collapsed Length (mm): 362.0
•Extended Length (mm): 608.0
•Lower Mount Type: Eye 12mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: EVO Grey
•Reservoir: Yes
•Body Design: Bypass Body (Non-Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Boot Included: No
•Spring Seat Included: No
•Shaft Diameter: 18mm
•Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
Fitment:
Toyota Tacoma 2005-2023
Interchange Numbers
•Bilstein 25-269819
•BQNV 25320459
•Old Man Emu BP5160011R
•Collapsed Length (in): 14.25
•Extended Length (in): 23.94
•Collapsed Length (mm): 362.0
•Extended Length (mm): 608.0
•Lower Mount Type: Eye 12mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: EVO Grey
•Reservoir: Yes
•Body Design: Bypass Body (Non-Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Boot Included: No
•Spring Seat Included: No
•Shaft Diameter: 18mm
•Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
Fitment:
Toyota Tacoma 2005-2023
Interchange Numbers
•Bilstein 25-269819
•BQNV 25320459
•Old Man Emu BP5160011R
Details
- 25-320459
- 25-320459
- 651860885261
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 19.6 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
