BILSTEIN B8 6112 - Suspension Kit for Ford (2004-08) F-150 | Lincoln (2006-08) Mark LT

47-310995

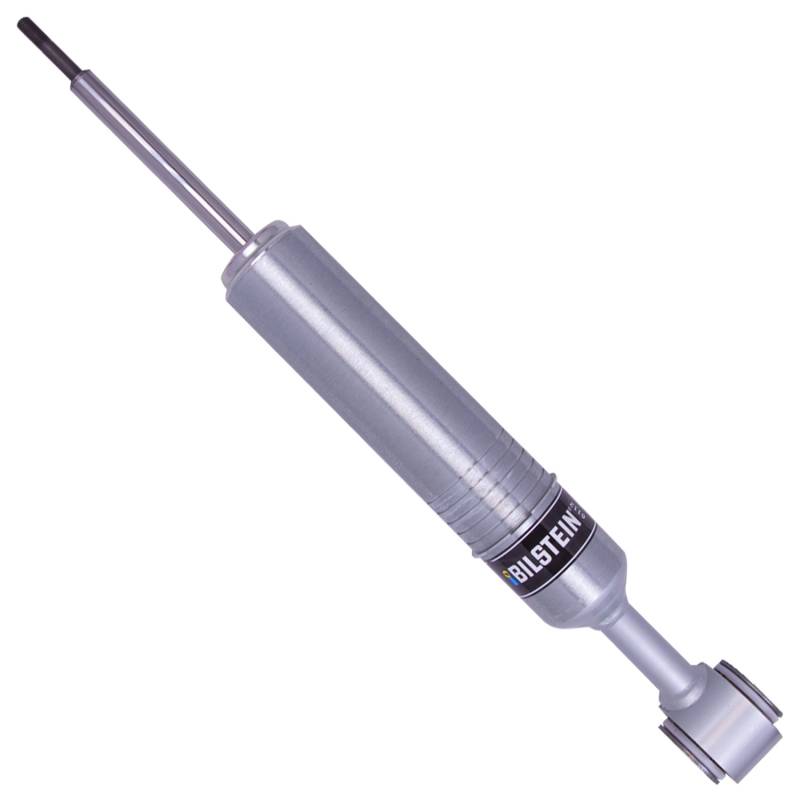

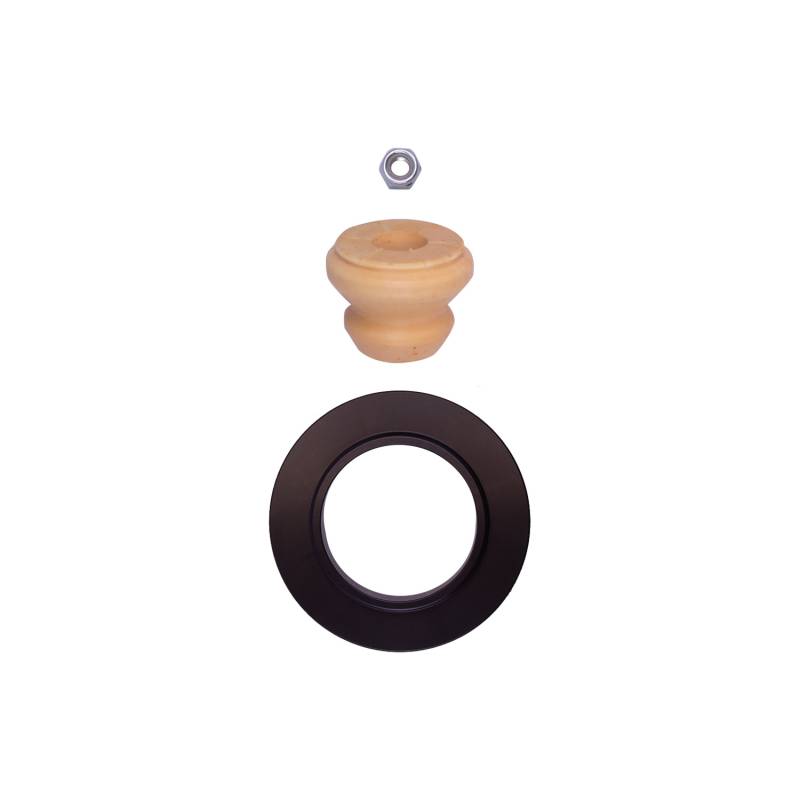

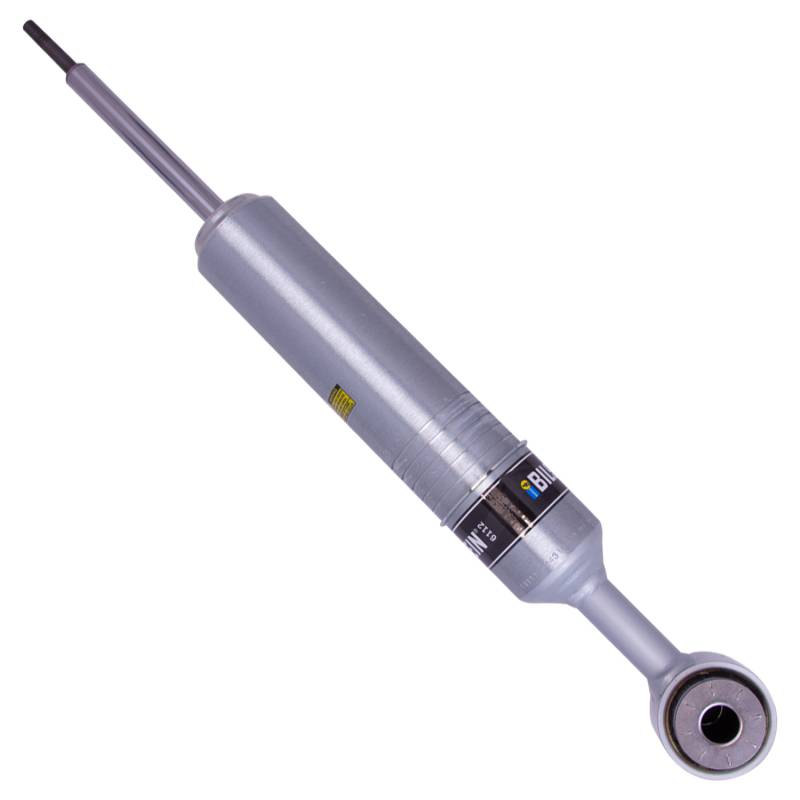

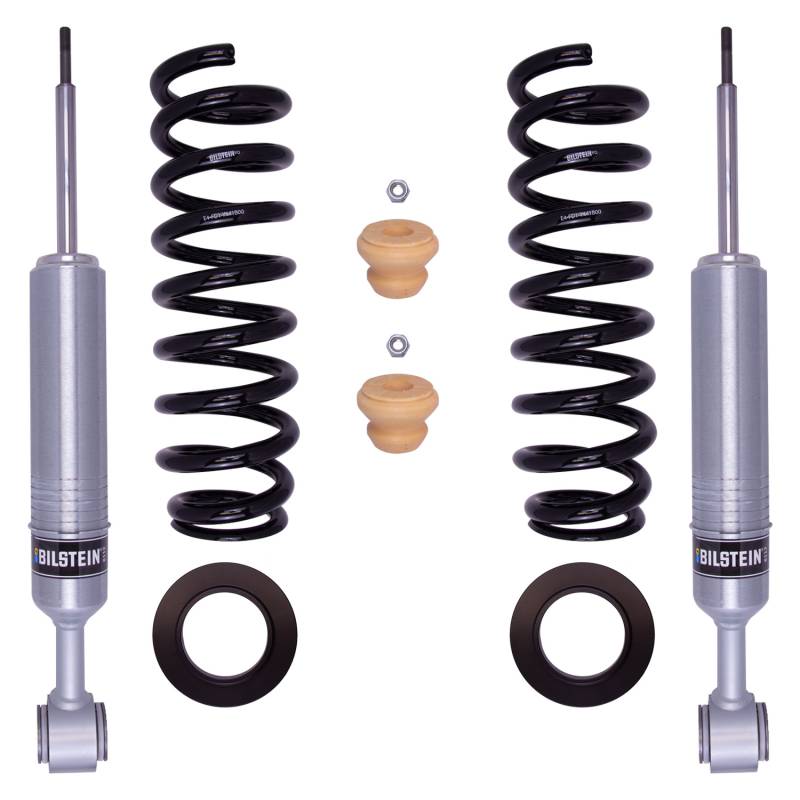

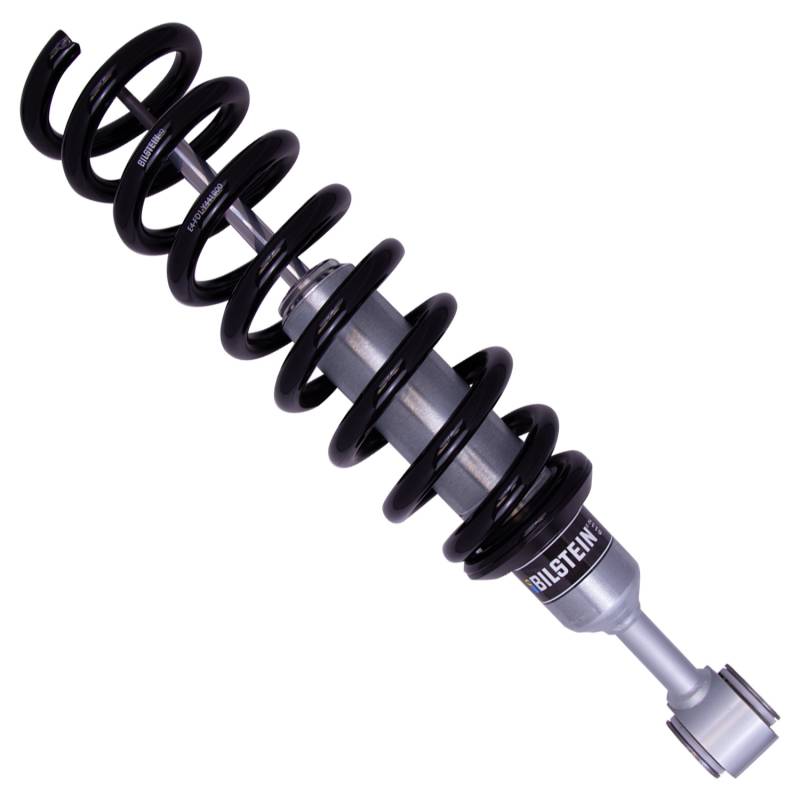

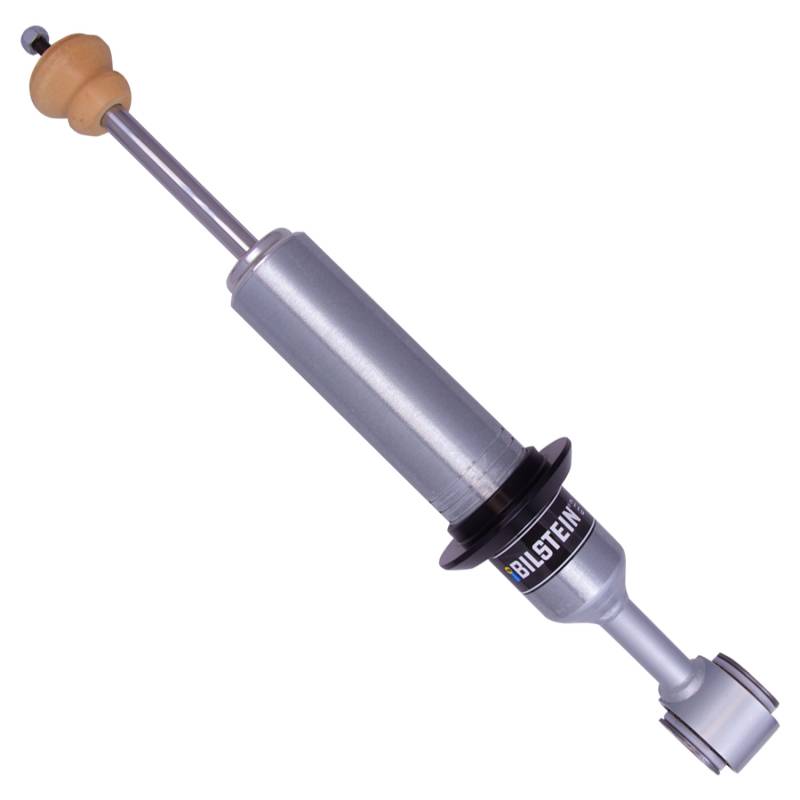

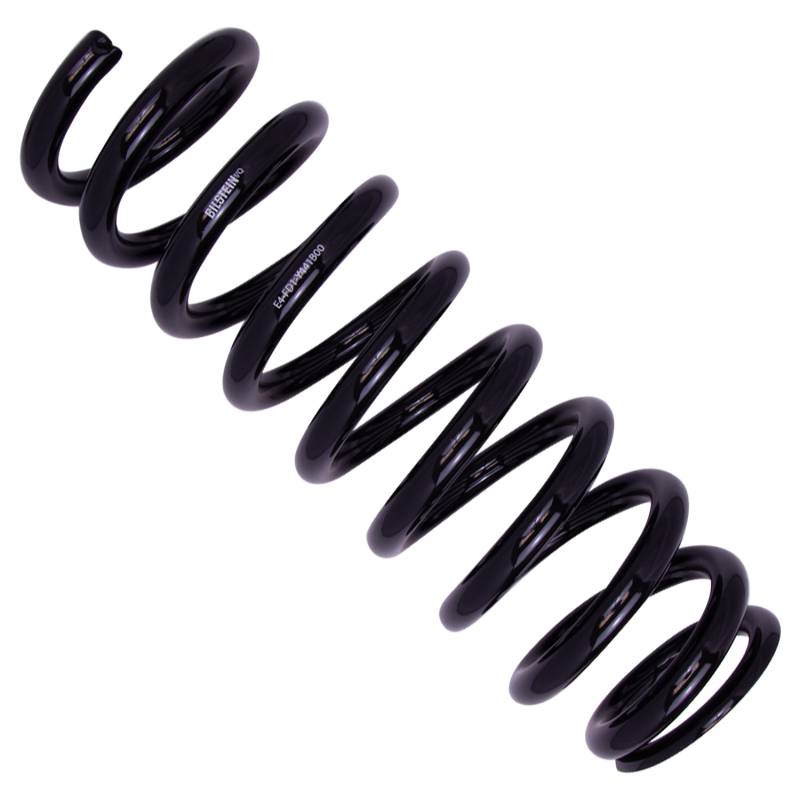

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited Lifetime Warranty
Pricing: $965.99

Qty:
Free Shipping

Description

Specifications:
•Collapsed Length (in): 16.61
•Extended Length (in): 22.36
•Collapsed Length (mm): 422.0
•Extended Length (mm): 568.0
•Stroke/travel Length (in): 5.75
•Internal Design: Monotube
•Finish: Dampers: Zinc Plated/Springs: Black
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Boot Included: No
•Spring Seat Included: Yes
•Front Main Spring Rate (lbs/in): 500
•Shaft Diameter: 18mm

Fitment:
Ford F-150 2004-2008, Lincoln Mark LT 2006-2008

Interchange Numbers
•Bilstein 24-310772
•Bilstein 47-244566
•BQNV 47310780
•ICON Vehicle Dynamics 91000

Details

Shipping Information

  • Item Requires Shipping
  • 51.3 lbs.
  • W3.0000” x H3.0000” x L23.0000”
  • Free Shipping
