Flight Diesel Fuel Injector for Dodge/Ram (2010-12) 6.7L Cummins, Cab and Chassis Only
R986435574

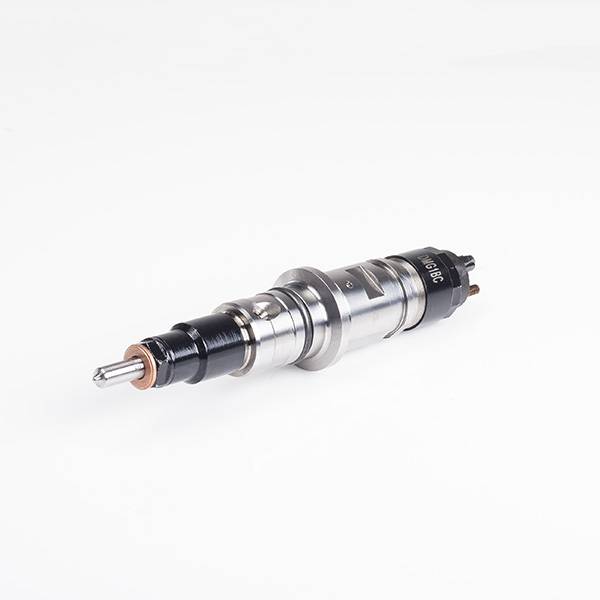

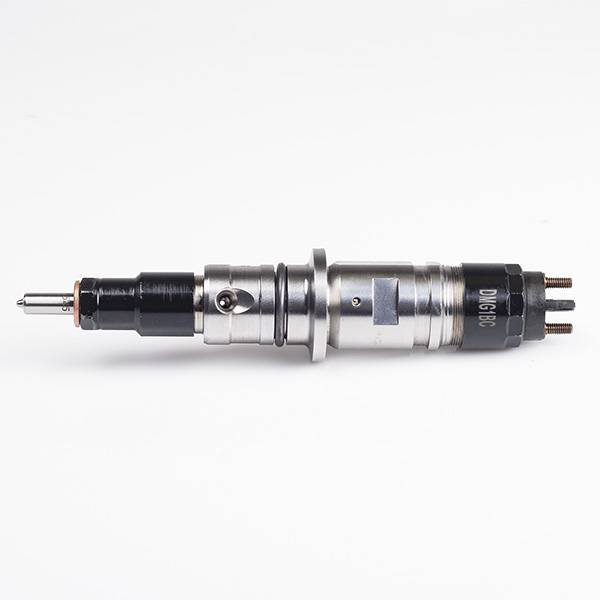

This is a Remanufactured Dodge 6.7L Cummins common rail fuel injector.
•Comes with New Combustion Seal and O-rings for installation.
•Every injector is individually tested on a state of the art test bench to ensure they meet OE specifications.
•Every injector test consists of: solenoid performance, response time, back leak flow test, full load test, mid load test, idle test, pre-injection test, and emission test points.
•After the testing the injector, a code is produced based on flow values and etched onto the injector. This code is used during the installation of the injectors. It must be programmed into the ECU to the specific cylinder it was installed in, which then uses the information to set parameters specific to each injector. Please contact us if you have any questions regarding the process.
•A scan tool is needed to program trim codes.
•Comes with New Combustion Seal and O-rings for installation.
•Every injector is individually tested on a state of the art test bench to ensure they meet OE specifications.
•Every injector test consists of: solenoid performance, response time, back leak flow test, full load test, mid load test, idle test, pre-injection test, and emission test points.
•After the testing the injector, a code is produced based on flow values and etched onto the injector. This code is used during the installation of the injectors. It must be programmed into the ECU to the specific cylinder it was installed in, which then uses the information to set parameters specific to each injector. Please contact us if you have any questions regarding the process.
•A scan tool is needed to program trim codes.
Availability: ***Order 6 to make a complete set***
Pricing:
$569.99
Description
•New o-rings and seals
•New Control valves and Nozzles are flow tested 100%
•Each Injector individually tested on state-of-the-art test equipment
•Proudly Remanufactured in the USA
•Trim code is etched on the solenoid nut
***It is recommended that you replace the injector connecting tubes with new tubes to prevent any damage to the new injectors from debris trapped in the old tubes. Failure to replace the connecting tubes could result in voiding the warranty.
TIPS FOR SUCCESSFUL INJECTOR INSTALLATION:
•Follow manufacturer installation procedure and torque specifications.
•Thoroughly clean and inspect injector bores (in cylinder head).
•Verify copper combustion seals are installed on new injectors and the old combustion seals were removed with previous injectors.
•Replace fuel filter.
•Flush and inspect all fuel lines between filter and injectors. Replace any fuel line with corrosion or damage.
>Cummins Applications:
•New OE Fuel Inlet Tubes are recommended. FS01001
•Aftermarket Fuel Inlet Tubes are lower quality and should NOT be used.
•Inspect connector tubes for damage and corrosion before installation.
Injector Trim Codes
•Trim Code - A unique 6 digit alphanumeric code assigned to each injector based on injector flow data at production. The trim codes allow the ECM to correctly balance injector performance by adjusting the signal to each injector.

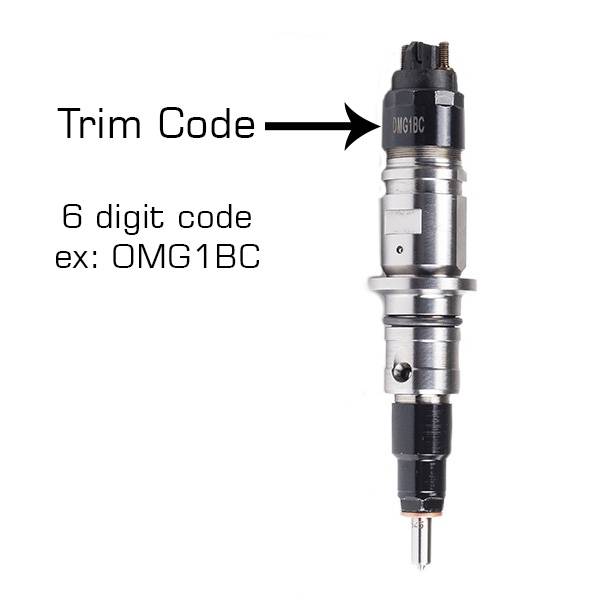

•Location (physical) - Injector Trim Codes can be found on the injector solenoid nut (See photo).
•Location (ECM) - Injector Trim Codes can be found using OE or similar scan tool.
Fitment:
2010-2012 DODGE RAM CAB & CHASSIS CUMMINS DIESEL 6.7L
•OE# 0445120188
•Alt# 0986435574, 68086182, 4994928
Warranty:
•1 Year
•Unlimited Mileage
•New Control valves and Nozzles are flow tested 100%
•Each Injector individually tested on state-of-the-art test equipment
•Proudly Remanufactured in the USA
•Trim code is etched on the solenoid nut
***It is recommended that you replace the injector connecting tubes with new tubes to prevent any damage to the new injectors from debris trapped in the old tubes. Failure to replace the connecting tubes could result in voiding the warranty.
TIPS FOR SUCCESSFUL INJECTOR INSTALLATION:
•Follow manufacturer installation procedure and torque specifications.
•Thoroughly clean and inspect injector bores (in cylinder head).
•Verify copper combustion seals are installed on new injectors and the old combustion seals were removed with previous injectors.
•Replace fuel filter.
•Flush and inspect all fuel lines between filter and injectors. Replace any fuel line with corrosion or damage.
>Cummins Applications:
•New OE Fuel Inlet Tubes are recommended. FS01001
•Aftermarket Fuel Inlet Tubes are lower quality and should NOT be used.
•Inspect connector tubes for damage and corrosion before installation.
Injector Trim Codes
•Trim Code - A unique 6 digit alphanumeric code assigned to each injector based on injector flow data at production. The trim codes allow the ECM to correctly balance injector performance by adjusting the signal to each injector.
•Location (physical) - Injector Trim Codes can be found on the injector solenoid nut (See photo).
•Location (ECM) - Injector Trim Codes can be found using OE or similar scan tool.
Fitment:
2010-2012 DODGE RAM CAB & CHASSIS CUMMINS DIESEL 6.7L
•OE# 0445120188
•Alt# 0986435574, 68086182, 4994928
Warranty:
•1 Year
•Unlimited Mileage
Details
- R986435574
- R986435574
- Flight Diesel
- ***Order 6 to make a complete set***
- Remanufactured
Shipping Information
- Item Requires Shipping
- 14.0 lbs.
- W13.0000” x H6.0000” x L12.0000”
- Free Shipping
