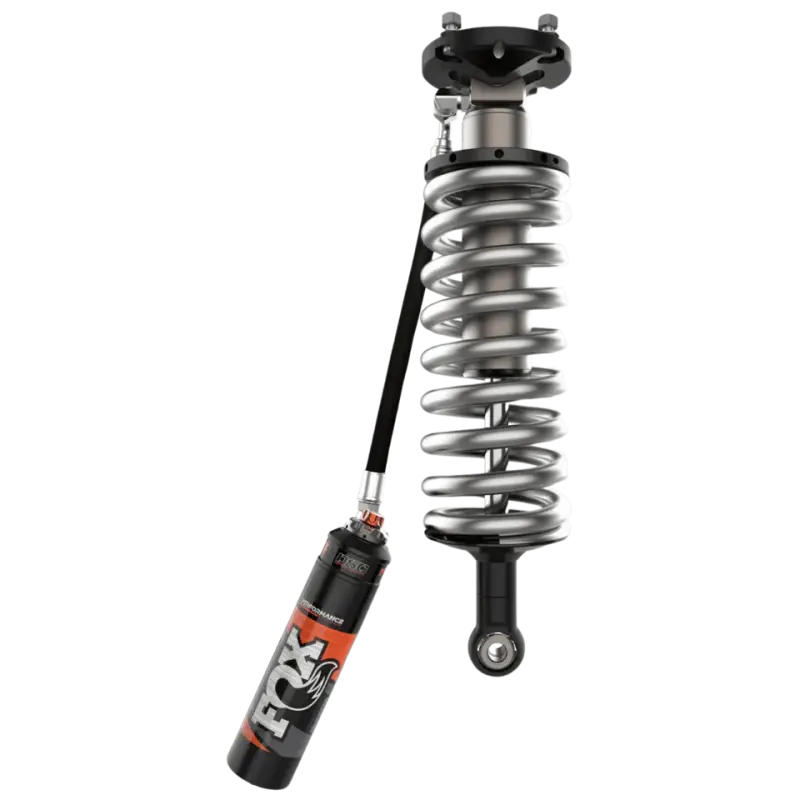

Fox 2.5 Performance Elite Series Shocks for Toyota (2022-26) Tundra (Front, Lifted 0"-3")
883-06-218
FOX Performance Elite Series 2.5 shocks improve the LC250, GX550, and 4Runner chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation.
Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
Pricing:
$2,679.99
Description
Features:
•2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body
•2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster
•Application-specific springs
•7/8" hard chrome-plated steel shafts
•Vehicle-specific valving to maximize performance
•Redundant sealing pack system: main seal, wiper seal, scraper seal
Specifications:
•SERIES Performance Elite
•TRAVEL 5.37
•FRONT LIFT HEIGHT 0-3
•EXTENDED LENGTH 21.68
•COMPRESSED LENGTH 15.64
•TOP MOUNT OEM
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Requires Upper Control Arm | Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle)
Fitment:
2022 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2023 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2024 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2025 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2026 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3 TRD Lift Kit silver axle) Front 0"-3"
•2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body
•2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster
•Application-specific springs
•7/8" hard chrome-plated steel shafts
•Vehicle-specific valving to maximize performance
•Redundant sealing pack system: main seal, wiper seal, scraper seal
Specifications:
•SERIES Performance Elite
•TRAVEL 5.37
•FRONT LIFT HEIGHT 0-3
•EXTENDED LENGTH 21.68
•COMPRESSED LENGTH 15.64
•TOP MOUNT OEM
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Requires Upper Control Arm | Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle)
Fitment:
2022 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2023 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2024 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2025 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle) Front 0"-3"
2026 Toyota Tundra All All All All Requires Upper Control Arm , Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3 TRD Lift Kit silver axle) Front 0"-3"
