BILSTEIN B8 6112 - Suspension Kit for Toyota (1996-04) Tacoma

47-310896

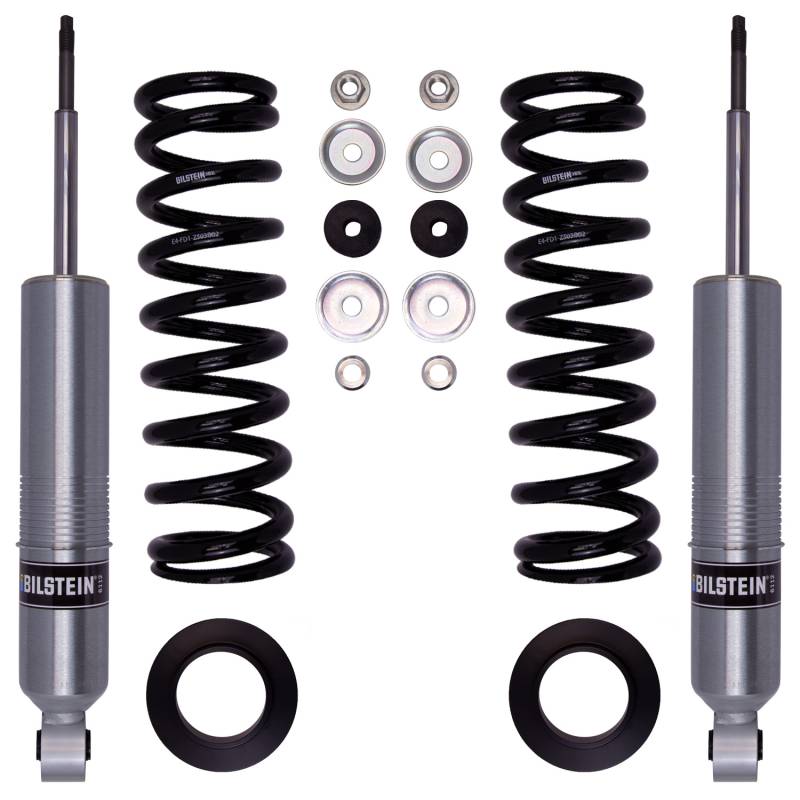

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited Lifetime Warranty
Pricing: $1,007.99

Qty:
Free Shipping

Description

Specifications:
•Collapsed Length (in): 13.56
•Extended Length (in): 18.54
•Collapsed Length (mm): 344.5
•Extended Length (mm): 471.0
•Stroke/travel Length (in): 4.98
•Internal Design: Monotube
•Finish: Dampers: Zinc Plated/Springs: Black
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Boot Included: No
•Spring Seat Included: Yes
•Front Main Spring Rate (lbs/in): 450
•Shaft Diameter: 18mm

Fitment:
Toyota Tacoma 1996-2004

Interchange Numbers
•Bilstein 24-310901
•Bilstein 47-267558
•BQNV 47310896
•ICON Vehicle Dynamics 58610

Details

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W3.0000” x H3.0000” x L23.0000”
  • Free Shipping
