BILSTEIN B8 6112 - Suspension Kit for Toyota (2003-09) 4-Runner / (2007-09) FJ Cruiser / (2005-23) Tacoma | Lexus (2003-09) GX470
47-309975

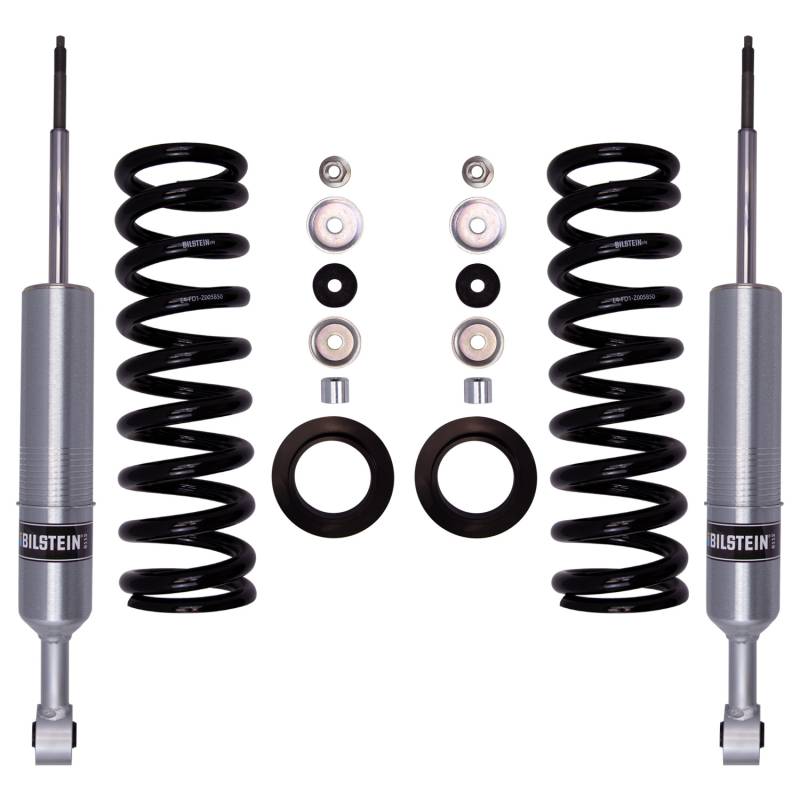

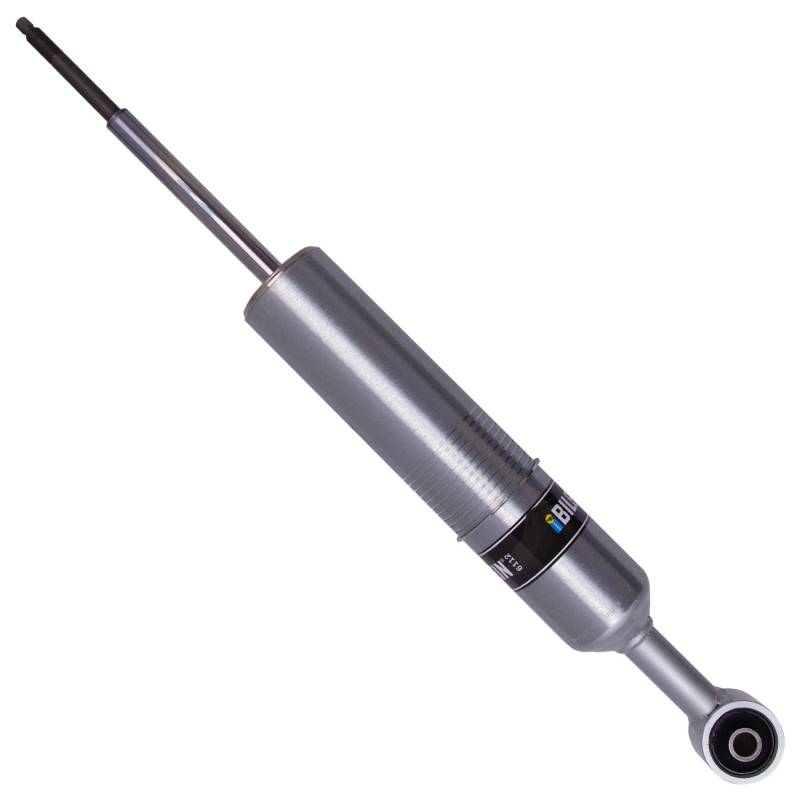

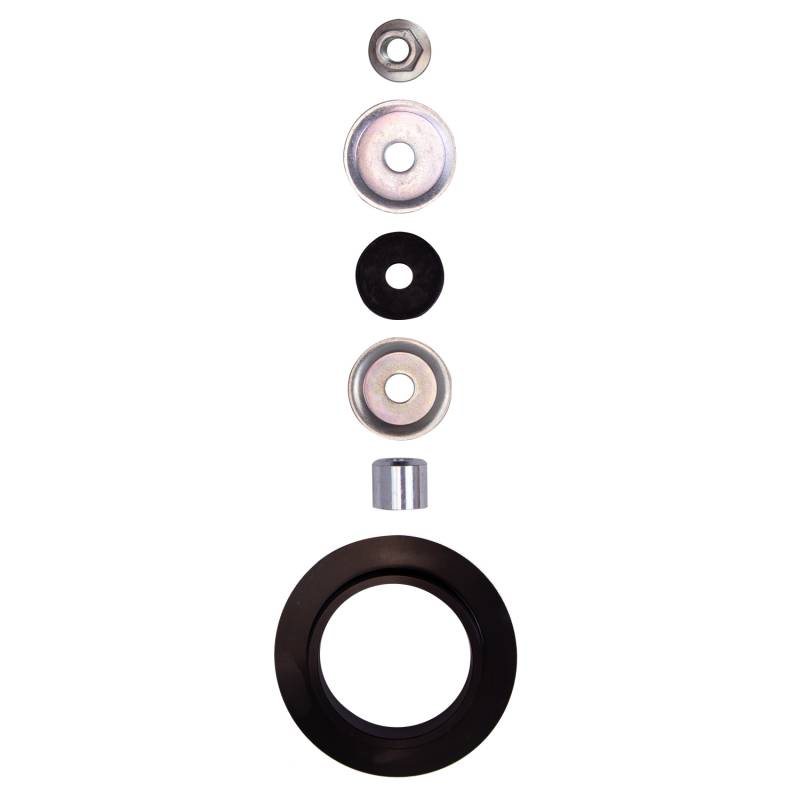

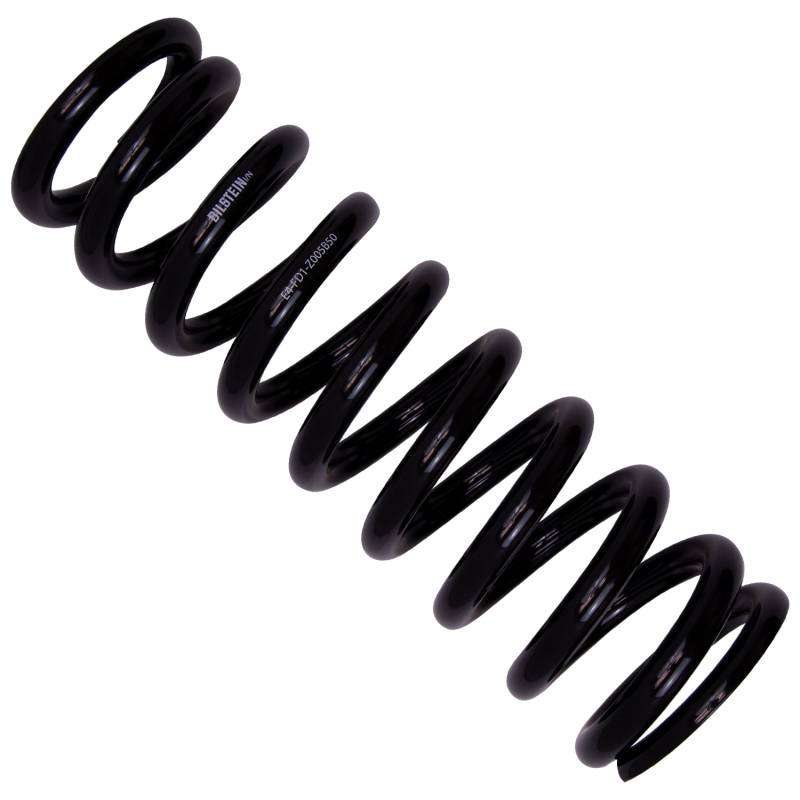

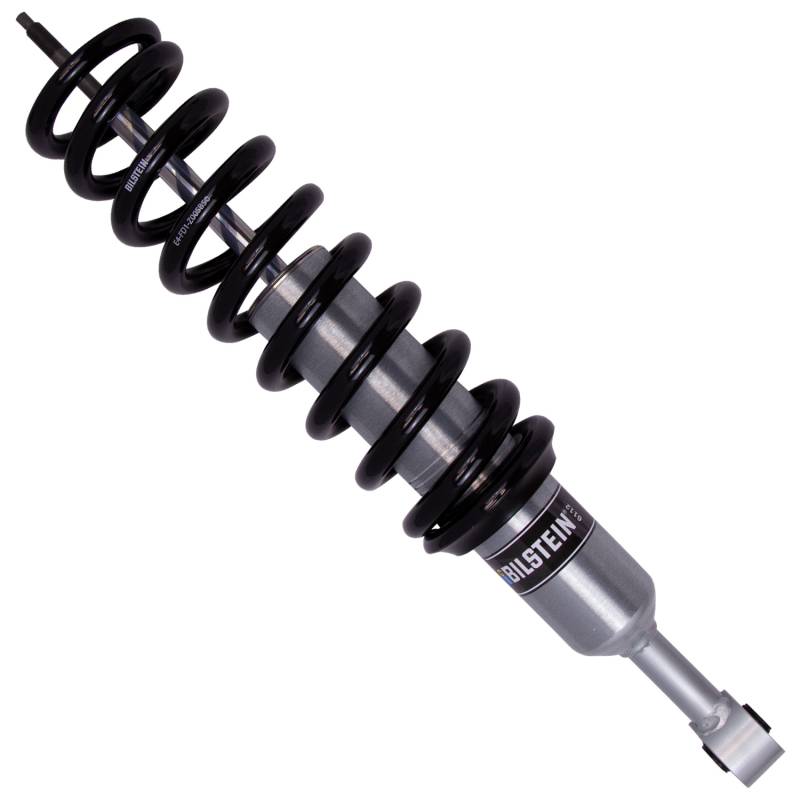

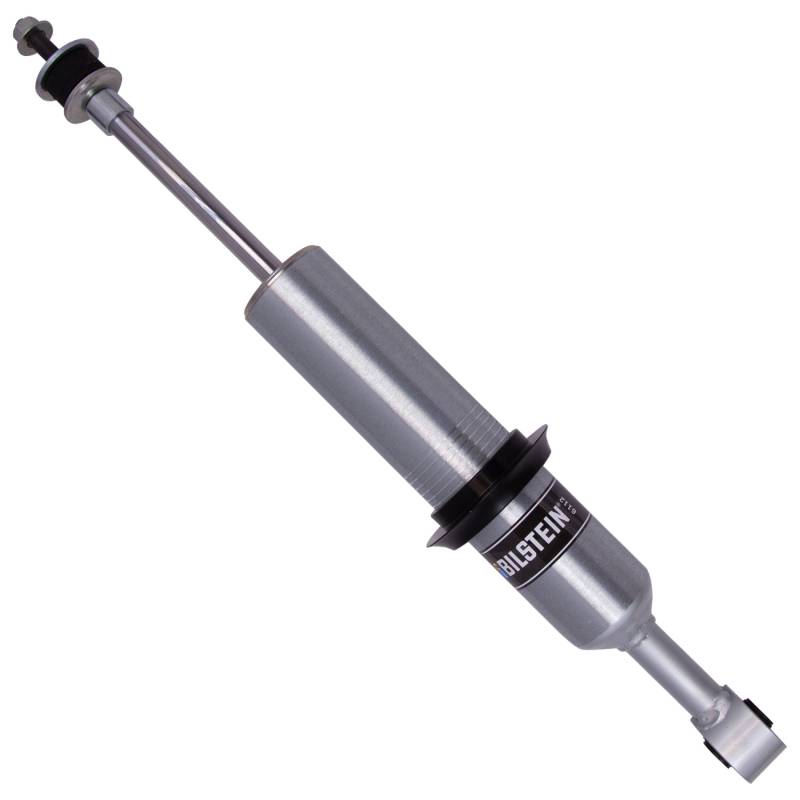

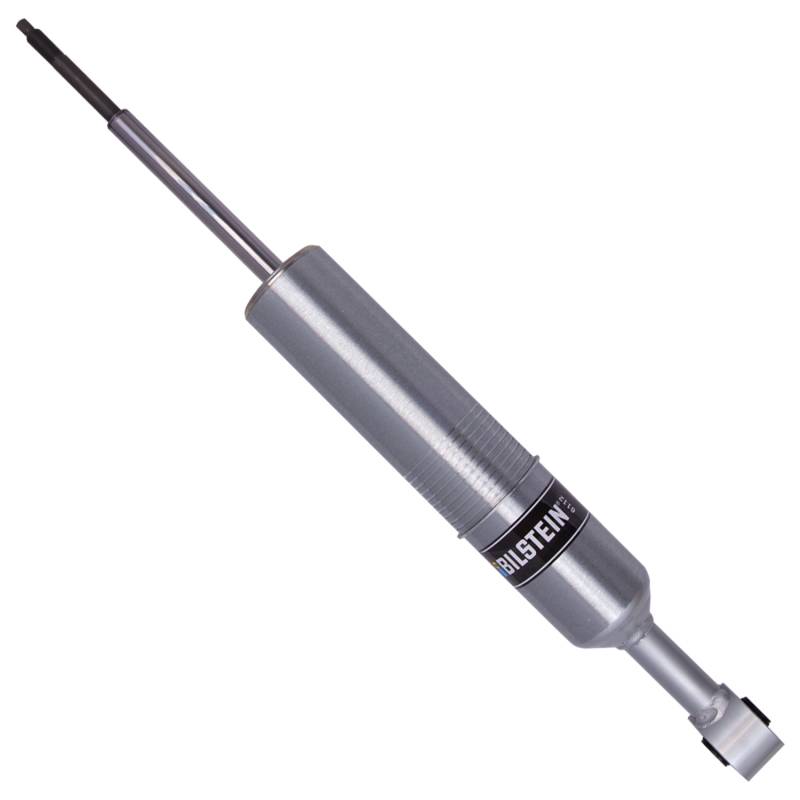

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited Lifetime Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited Lifetime Warranty
Pricing:
$1,007.99
Description
Specifications:
•Collapsed Length (in): 16.82
•Extended Length (in): 21.61
•Collapsed Length (mm): 427.3
•Extended Length (mm): 549.0
•Stroke/travel Length (in): 4.79
•Internal Design: Monotube
•Finish: Dampers: Zinc Plated/Springs: Black
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Boot Included: No
•Replacement Mounting Kit: B4-KT1-Z452A00
•Spring Seat Included: Yes
•Front Main Spring Rate (lbs/in): 600
•Shaft Diameter: 18mm
Fitment:
Lexus GX470 2003-2009
Toyota 4Runner 2003-2009
Toyota FJ Cruiser 2007-2009
Toyota Tacoma 2005-2023
Interchange Numbers
•Bilstein 24-309981
•Bilstein 46-227287
•Bilstein 46-241627
•Bilstein 47-234413
•Bilstein 47-260153
•BQNV 47309975
•FOX Offroad Shocks 880-02-361
•ICON Vehicle Dynamics 58630
•Collapsed Length (in): 16.82
•Extended Length (in): 21.61
•Collapsed Length (mm): 427.3
•Extended Length (mm): 549.0
•Stroke/travel Length (in): 4.79
•Internal Design: Monotube
•Finish: Dampers: Zinc Plated/Springs: Black
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Boot Included: No
•Replacement Mounting Kit: B4-KT1-Z452A00
•Spring Seat Included: Yes
•Front Main Spring Rate (lbs/in): 600
•Shaft Diameter: 18mm
Fitment:
Lexus GX470 2003-2009
Toyota 4Runner 2003-2009
Toyota FJ Cruiser 2007-2009
Toyota Tacoma 2005-2023
Interchange Numbers
•Bilstein 24-309981
•Bilstein 46-227287
•Bilstein 46-241627
•Bilstein 47-234413
•Bilstein 47-260153
•BQNV 47309975
•FOX Offroad Shocks 880-02-361
•ICON Vehicle Dynamics 58630
Details
- 47-309975
- 47-309975
- 651860868899
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 41.4 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
