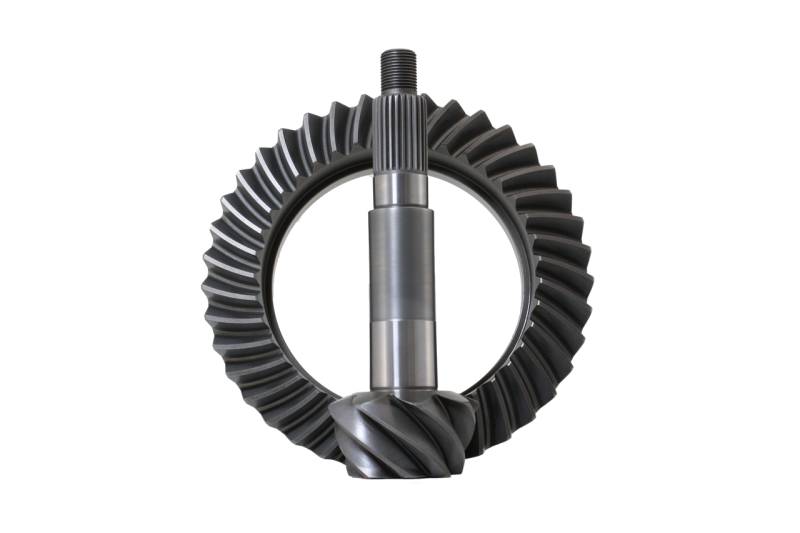

Revolution Gear & Axle Ring & Pinion Set for Dana 44 (3.73 Ratio, Standard Rotation)

This is a 3.73 ratio standard-rotation ring and pinion gear set for the Dana 44 axle. It is the gear set itself, suited to a mild regear or replacing a worn factory gear set.

The set uses a standard-rotation 26-spline pinion on an 8.5-inch ring gear with a 10-bolt cover pattern. Carrier break is listed at 3.73/3.92, so confirm your carrier matches when running a 3.73 ratio. Gears are machined from 8620 steel, heat treated and lapped for a smooth, quiet setup.

A 3.73 ratio works well for a Dana 44 rig running slightly larger tires that still spends most of its time on the street, or for refreshing a high-mileage axle. Because this fits by axle, it suits a range of Dana 44 applications.

This listing is the gear set only. Pinion and carrier bearings, crush sleeve, shims, pinion seal and cover sealant are not included, and a carrier or locker is separate. Add a Revolution Dana 44 master install kit for the bearings, and have an experienced installer set the pattern and backlash.

Re-gearing with a quality Revolution set restores drivability and protects the drivetrain. Match the opposite axle to the same ratio for balanced gearing front to rear.
