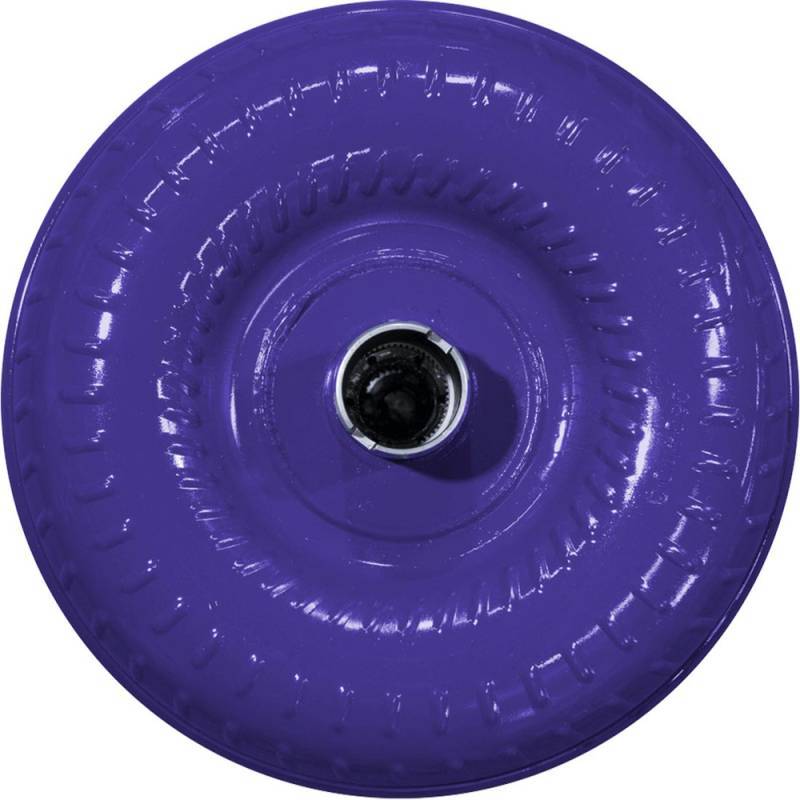

ATS Five Star Torque Converter High Stall for the 5.9L Cummins to 4R100 Conversion

(0) Reviews: Write first review
3029555164

The ATS Five-Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.

Was: $1,766.99
Sale: $1,471.75
Save: 17%
Save: $295.24

Customize Your Item

- $400 Core Charge -
 * required
Qty:
Free Shipping

Description

ATS Diesel Performance

Features:
Patented Viskus Clutch Drive System for increased efficiency
Billet Cover with Patented Square Flank Drive
Square Tab Construction (Not Round)
Viskus Disc CNC Laser Cut Clutch Plates
Billet Piston with Patented Flank Drive Tab design
Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)
Redesigned Spring Dampener supports increased torque loads
4340 hardened turbine splines provide longevity and reliability
Fully welded turbine and impeller vanes
CNC Stator with high flow windows increase oil flow, providing increased efficiency
Full roller bearing construction between high load areas
4340 CNC cut pump drive hub locked into impeller housing
Plasma welded for unsurpassed strength

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 89.0 lbs.
  • W15.0000” x H11.0000” x L15.0000”
  • Free Shipping
