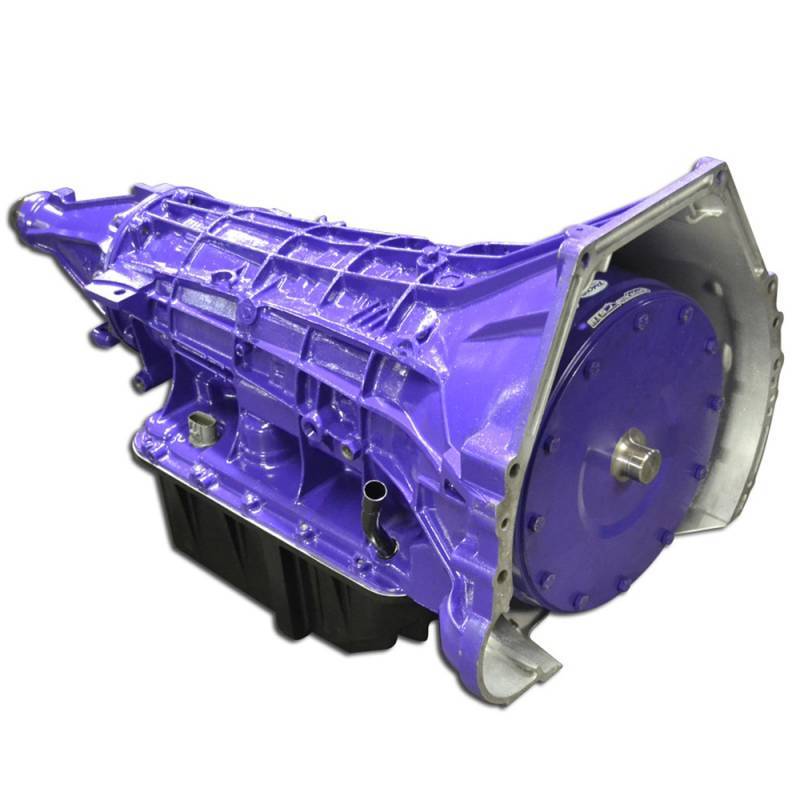

ATS E4OD Automatic Transmission for Ford (1992-94) 7.3L Diesel 4WD, Stage 1

This ATS Stage 1 E4OD transmission package is a complete, matched drivetrain upgrade for 1992-1994 Ford Power Stroke 4WD. Everything in the package is built by ATS to work together, so you are not mixing a built transmission with a stock converter or controller. It is set up for heavy towing, where heat and sustained load are what kill a stock transmission.

ATS Diesel Performance has built diesel transmissions and performance parts since 1993. ATS designs, engineers, and manufactures most of its products in-house at its Arvada, Colorado facility, and tests them at altitude on the same long grades its customers tow on.

Stage Comparison

• Stage 1: ATS Five Star Torque Converter, High performance overdrive, intermediate and forward clutch packs, Modified transmission pump, Modified valve body that focuses around precise shifts, increase line , New bearings, seals and gaskets, New low roller clutch, heavy duty intermediate sprag, bonded coast and, ATS Deep Transmission Pan which adds 5 quarts of fluid over stock
• Stage 2: E4OD Stage 2 Package 1992-1994 Ford 4WD, ATS Five Star Torque Converter, ATS billet input shaft, High performance overdrive, intermediate and forward clutch packs, Modified transmission pump, Modified valve body that focuses around precise shifts, increase line , New bearings, seals and gaskets, New low roller clutch, heavy duty intermediate sprag, bonded coast and
• Stage 3: ATS Five Star Torque Converter, ATS billet input shaft, ATS Commander Lock-Up Controller, High performance overdrive, intermediate and forward clutch packs, Modified transmission pump, Modified valve body that focuses around precise shifts, increase line , New bearings, seals and gaskets, New low roller clutch, heavy duty intermediate sprag, bonded coast and
• Stage 6: ATS Five Star Torque Converter, ATS billet input shaft, ATS Commander Lock-Up Controller, ATS billet flex plate, ATS billet intermediate shaft, ATS billet output shaft, High performance overdrive, intermediate and forward clutch packs, Modified transmission pump

Specifications

• Part Number: 309-914-3140
• Product Type: Transmission Package
• Transmission: E4OD
• Stage: 1
• Engine: Power Stroke
• Years: 1992-1994
• Make: Ford
• Drive: 4WD
• Application: Towing
• Sold As: Kit
• Warranty: 5 Year/500,000 Mile
• Country of Origin: USA

Features

• ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations
• High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section
• Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs
• Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD
• New bearings, seals and gaskets
• New low roller clutch, heavy duty intermediate sprag, bonded coast and overdrive pistons
• ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool
• Models: F-250/F-350/F-450

Fitment

• 1992-1994 Ford F-250
• 1992-1994 Ford F-350
