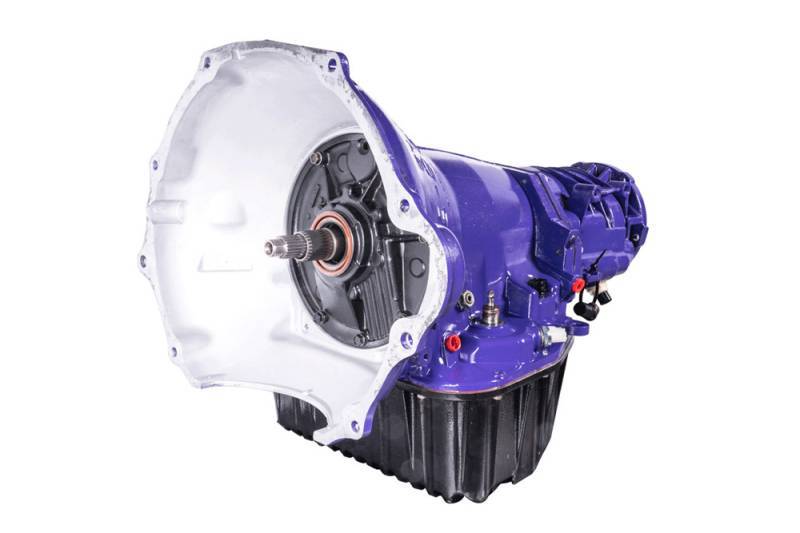

ATS Automatic Transmission for Dodge (1990-93) 5.9L Cummins 2WD, Stage 1
- Stage 1 package matched to your power level and how you use the truck
- Freight charge covers shipping both ways, including your core return
- Includes: New performance forward clutch pack and steels with 1 added friction, New performance direct clutch pack and steels with 1 added friction, Low/reverse band replaced with Borg Warner Red Lining performance band, Intermediate/2nd gear band replaced with Borg Warner Red Lining perfor, 1:5.0 band apply lever, Billet Band strut, Billet accumulator piston
- Step up to Stage 2 to add: ATS Built 618 Auto Trans, ATS Billet Torque Converter, ATS Extra Deep Transmission Pan
- New performance forward clutch pack and steels with 1 added friction
- New performance direct clutch pack and steels with 1 added friction
A $2,600 core charge applies and is refunded when your core is returned.
Description
This ATS Stage 1 618 transmission package is a complete, matched drivetrain upgrade for 1990-1993 Dodge/Ram Cummins 2WD. Everything in the package is built by ATS to work together, so you are not mixing a built transmission with a stock converter or controller. It is built for high-horsepower and competition trucks that put far more load through the drivetrain than stock parts are designed for.
ATS Diesel Performance has built diesel transmissions and performance parts since 1993. ATS designs, engineers, and manufactures most of its products in-house at its Arvada, Colorado facility, and tests them at altitude on the same long grades its customers tow on.
Stage Comparison
- Stage 1: New performance forward clutch pack and steels with 1 added friction, New performance direct clutch pack and steels with 1 added friction, Low/reverse band replaced with Borg Warner Red Lining performance band, Intermediate/2nd gear band replaced with Borg Warner Red Lining perfor, 1:5.0 band apply lever, Billet Band strut, Billet accumulator piston, Precision machined forward pressure plate (machined step)
- Stage 2: ATS Built 618 Auto Trans, ATS Billet Torque Converter, ATS Extra Deep Transmission Pan
Specifications
- Part Number: 309-912-2116
- Product Type: Transmission Package
- Transmission: 618
- Stage: 1
- Engine: Cummins
- Years: 1990-1993
- Make: Dodge/Ram
- Drive: 2WD
- Application: Competition
- Sold As: Kit
- Warranty: 5 Year/500,000 Mile
- Country of Origin: USA
Features
- New performance forward clutch pack and steels with 1 added friction
- New performance direct clutch pack and steels with 1 added friction
- Low/reverse band replaced with Borg Warner Red Lining performance band
- Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
- 1:5.0 band apply lever
- Billet Band strut
- Billet accumulator piston
- Precision machined forward pressure plate (machined step)
- Precision machined lower forward pressure plate (machined flat)
- Precision machined overdrive brake pressure plate (machined flat)
- New direct pressure plate
- Performance low/reverse one-way clutch
- Machined TV valve sleeve (prevents sticking TV valve)
- Ability to circulate fluid to the torque converter in park/reverse/neutral
- Increase line pressure
Fitment
- 1990-1993 Dodge D250
- 1990-1993 Dodge D350
Resources
Details
- 3099122116
- 3099122116
- 840440593331
- ATS Diesel Performance
- Large item. Ships by truck freight.
- New
Shipping Information
- Item Requires Shipping
- 400.0 lbs.
- W42.0000” x H40.0000” x L48.0000”
- $500.00
- This item will require a special quote for shipping charges.
