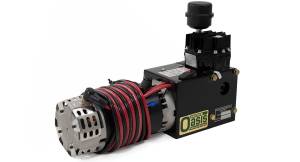

Oasis Continuous-Duty Air Compressor System, 12 Volt
XD4000-12V
Oasis Continuous-Duty Air Compressor System, 12 Volt
The new model is the ultimate for extensive compressed air performance. This unit features an exclusive, forced air, motor and compressor cooling system. The specially designed deep-finned head, and compressor body is cooled by a 100 cfm fan built into a housing shroud, which also adds protection to the unit. An internal fan also cools the modified 5 hp electric motor. This cooling combination provides superior operating temperature reduction resulting in an unrivaled 100% duty-cycle @ 200 psi.
The new model is the ultimate for extensive compressed air performance. This unit features an exclusive, forced air, motor and compressor cooling system. The specially designed deep-finned head, and compressor body is cooled by a 100 cfm fan built into a housing shroud, which also adds protection to the unit. An internal fan also cools the modified 5 hp electric motor. This cooling combination provides superior operating temperature reduction resulting in an unrivaled 100% duty-cycle @ 200 psi.
Pricing:
$2,444.99
Description
Specifications
Nominal Operating Voltage 12 Vdc
Dimensions(L x W x H) 21" x 7" x 11"
Net Weight (Lbs) 65
Motor Type Series Wound
Operating Temperature Range -20℃ (-4℉) to 65℃ (150℉)
Max Pressure 200 psi
Max Restart Pressure 150 psi
Current at Max Pressure (200 psi) ≤190 amps
Flow Rate @ 100 psi ≥8 cfm
Duty Cycle @ 100psi @ 21℃ (70℉) 100% continuous
Typical Performance (cold, at sea level)
PSI CFM Current
0 15 110
50 10 140
100 9 170
Flow rate decreases as operating temperature and/or altitude increase.
Exclusive Features •Direct Port Intake Design - Stabilizes airflow for maximum performance.
•Dual-Ring, Oil Control Pistons - Significantly reduces oil by into air supply.
•Oil Reservoir Chamber - Provides relief for crankcase oil transfer and expansion.
•Oil Reservoir Baffle - Acts as an air/lubrication separator.
•Oil Sight Glass - Offers a quick visual check of crankcase lubrication.
•Motor Cooling Fan - (XD3000) airflow through the motor reduces extended use heat build-up.
•Control Wire - Connection point for optional pressure switch and/or dash switch.
•Low Voltage Cut-off - "Smart" technology turns compressor off if voltage drops to protect motor.
•Power Switch - With indicator light.
•Low Voltage Indicator - Alerts when battery or system voltage is low.
•High Flow - Swedish Steel valves.
•Air Filter - High-flow, long-life filter with serviceable element.
•Deep Finned Heads - Dramatically reduces compressor operating temperature.
•York® Compressor - Modified, twin-cylinder, 10 cubic inch industrial unit.
•HD Roller Bearings - At both ends of crankshaft.
•Mounting Plate (optional) - Provides a direct drive connection.
•Heavy-duty Coupler - Provides a direct drive connection.
•12 VDC Industrial Motor - Hi-performance, commercial duty.
•Motor Cooling Exhaust - Reduces motor heat buildup. (XD3000)
•Power Cables - 10' of #4 AWG cables.
Nominal Operating Voltage 12 Vdc
Dimensions(L x W x H) 21" x 7" x 11"
Net Weight (Lbs) 65
Motor Type Series Wound
Operating Temperature Range -20℃ (-4℉) to 65℃ (150℉)
Max Pressure 200 psi
Max Restart Pressure 150 psi
Current at Max Pressure (200 psi) ≤190 amps
Flow Rate @ 100 psi ≥8 cfm
Duty Cycle @ 100psi @ 21℃ (70℉) 100% continuous
Typical Performance (cold, at sea level)
PSI CFM Current
0 15 110
50 10 140
100 9 170
Flow rate decreases as operating temperature and/or altitude increase.
Exclusive Features •Direct Port Intake Design - Stabilizes airflow for maximum performance.
•Dual-Ring, Oil Control Pistons - Significantly reduces oil by into air supply.
•Oil Reservoir Chamber - Provides relief for crankcase oil transfer and expansion.
•Oil Reservoir Baffle - Acts as an air/lubrication separator.
•Oil Sight Glass - Offers a quick visual check of crankcase lubrication.
•Motor Cooling Fan - (XD3000) airflow through the motor reduces extended use heat build-up.
•Control Wire - Connection point for optional pressure switch and/or dash switch.
•Low Voltage Cut-off - "Smart" technology turns compressor off if voltage drops to protect motor.
•Power Switch - With indicator light.
•Low Voltage Indicator - Alerts when battery or system voltage is low.
•High Flow - Swedish Steel valves.
•Air Filter - High-flow, long-life filter with serviceable element.
•Deep Finned Heads - Dramatically reduces compressor operating temperature.
•York® Compressor - Modified, twin-cylinder, 10 cubic inch industrial unit.
•HD Roller Bearings - At both ends of crankshaft.
•Mounting Plate (optional) - Provides a direct drive connection.
•Heavy-duty Coupler - Provides a direct drive connection.
•12 VDC Industrial Motor - Hi-performance, commercial duty.
•Motor Cooling Exhaust - Reduces motor heat buildup. (XD3000)
•Power Cables - 10' of #4 AWG cables.
Details
- XD4000-12V
- XD4000-12V
- Oasis Air Compressors
- New
Shipping Information
- Item Requires Shipping
- 62.0 lbs.
- W7.0000” x H11.0000” x L21.0000”
