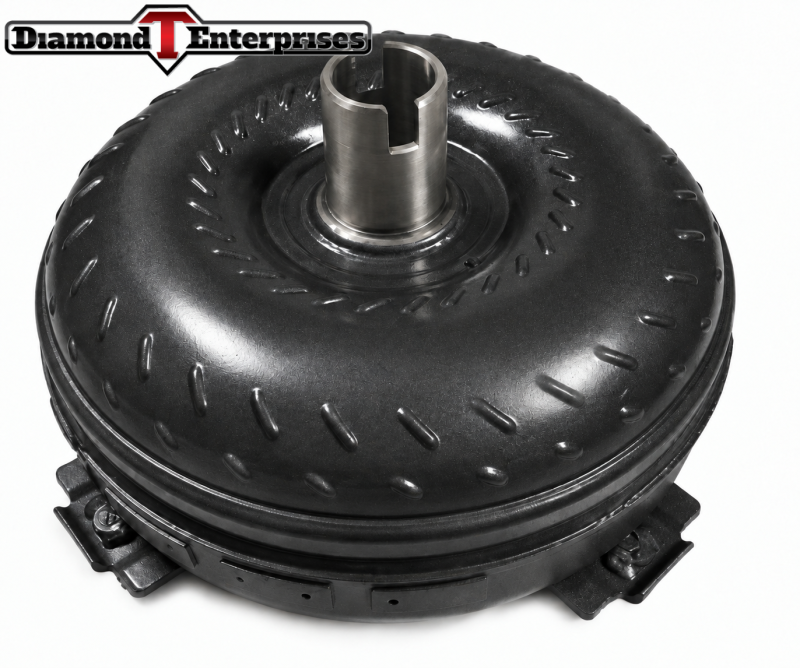

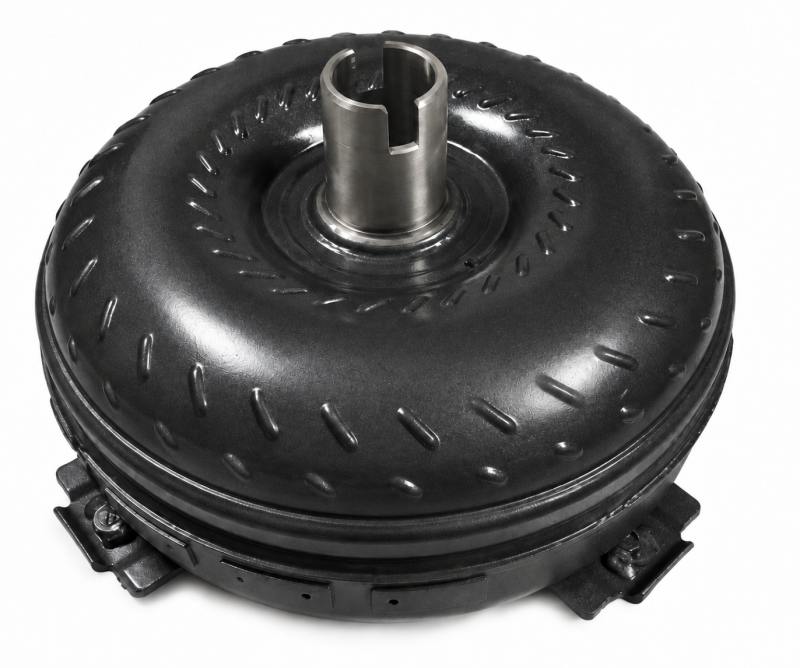

Diamond T Torque Converter for Ford (2011-14) 3.7L F-150 & Mustang 6R80

The Diamond T Torque Converter for Ford (2011-14) 3.7L F-150 & Mustang 6R80 (FD11G6R37) is a replacement converter for applicable Ford F-150 and Mustang models equipped with the 3.7L gas engine and 6R80 automatic transmission. Built for customers who depend on American-made components, this converter matches the specified spline, pilot, hub, and mounting configuration for these applications.

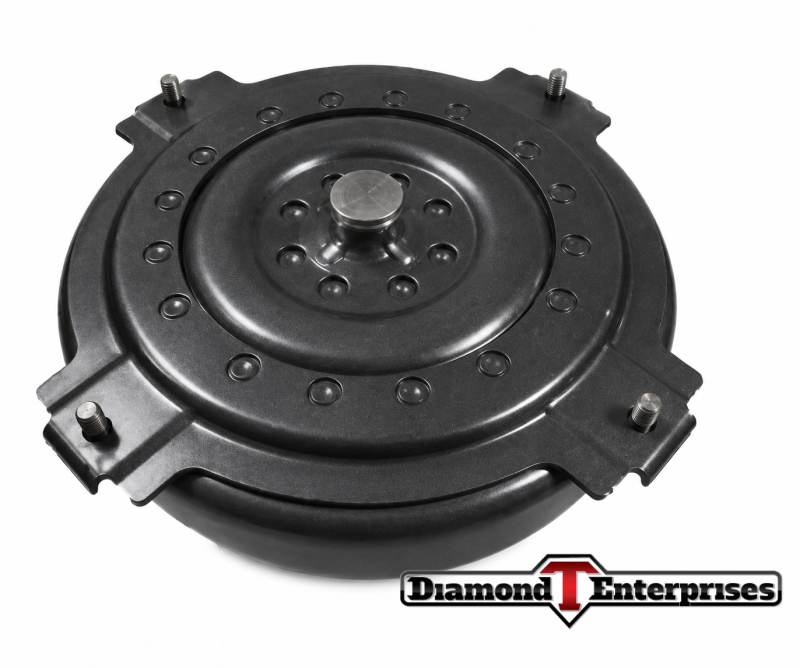

FD11G6R37 features an 11-15/16" diameter, 32-spline configuration, and 1.375" pilot. The hub is stepped and slotted with a specified diameter of 1.722", and the stator uses 27 splines. Additional dimensional references include 12-11/16" at the widest point and a 12.5" mounting plate riveted to the front cover. The plate carries four studs with 10mm x 1.0 threads on an 11-3/8" bolt circle.

This converter uses the specified single-disc dual-clutch configuration and contains a multi-plate captive clutch assembly. Identification codes include BR3PAB, BR3PAC, BL3PAD, and BR3PEA. Reference these markings along with the original converter number and physical configuration when identifying the correct replacement.

OE reference numbers include BR3Z7902EARM, BR3Z7902C, BR3Z7902E, BR3Z7902EA, BR3Z7902EATC, BR3Z7902ERM, and BR3Z-7902-B, along with the corresponding number formats listed below. Customers must enter their VIN when ordering so Diamond T can verify vehicle fitment before shipment.

Built in the USA with high-grade components, this Diamond T torque converter is backed by a Lifetime Non-Transferable Warranty against defects in materials and workmanship under normal and proper use. American Made, Because It Matters.

OE Reference Numbers

• BR3Z7902EARM / BR3Z-7902E-ARM
• BR3Z7902B / BR3Z-7902-B
• BR3Z7902C / BR3Z-7902-C
• BR3Z7902E / BR3Z-7902-E
• BR3Z7902EA / BR3Z-7902E-A / BR3Z-7902-EA
• BR3Z7902EATC / BR3Z-7902EATC
• BR3Z7902ERM / BR3Z-7902E-RM
