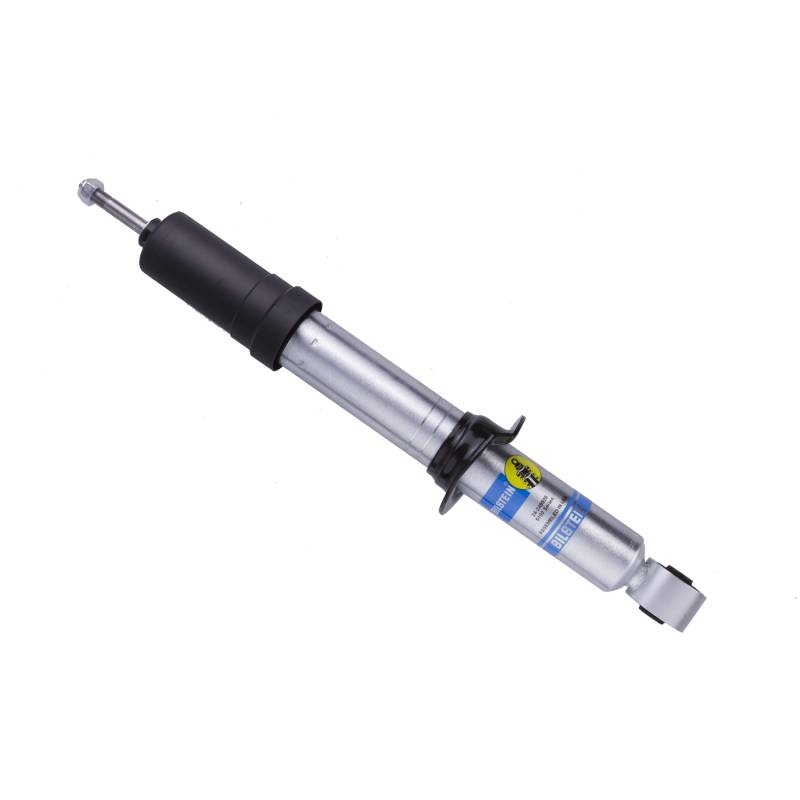

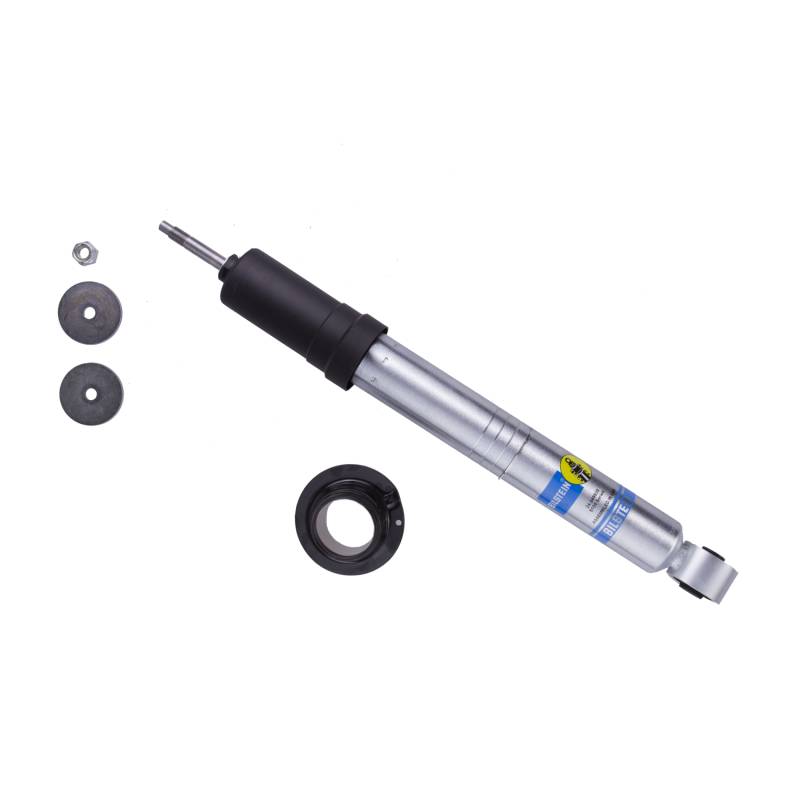

BILSTEIN B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber for Toyota (1996-04) Tacoma

24-249928
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 1
•Warranty: Limited Lifetime Warranty
Pricing: $246.99

Qty:
Free Shipping

Description

Specifications:
•Collapsed Length (in): 13.86
•Extended Length (in): 18.66
•Collapsed Length (mm): 352.0
•Extended Length (mm): 474.0
•Stroke/travel Length (in): 4.80
•Lower Mount Type: Eye 14.2mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Straight
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable

Fitment:
Toyota Tacoma 1996-2004

Interchange Numbers
•AutoZone 273867
•BQNV 24249928

Details

Shipping Information

  • Item Requires Shipping
  • 5.6 lbs.
  • W3.0000” x H3.0000” x L23.0000”
  • Free Shipping
