BILSTEIN B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber for Infiniti (2004-10) QX56 | Nissan (2005-15) Armada | (2004) Pathfinder | (2004-15) Titan
24-197649
BILSTEIN B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber for Infiniti QX56 | Nissan Armada | Pathfinder | Titan

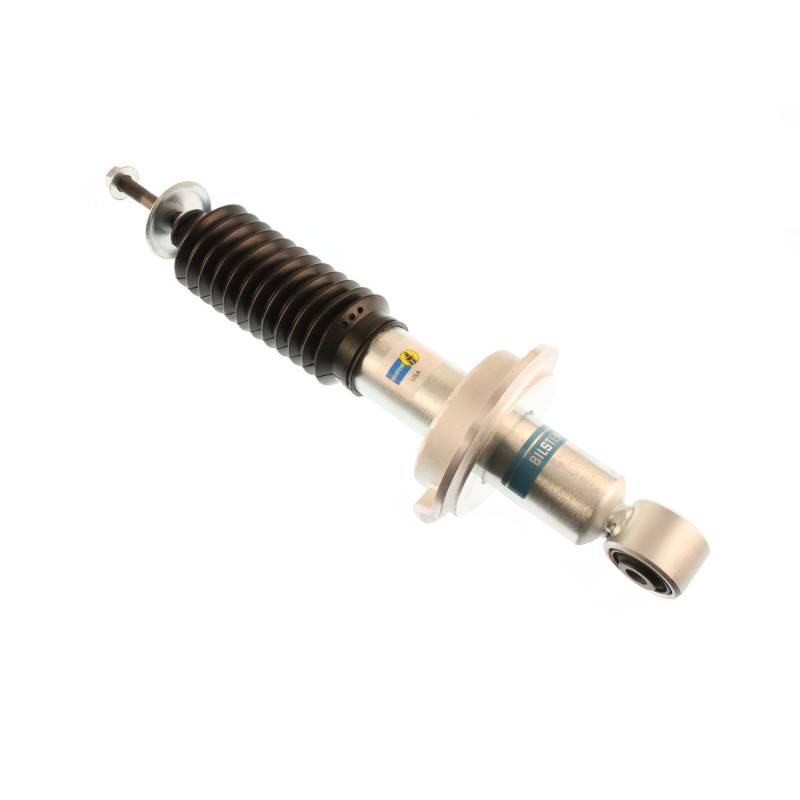

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Pricing:
$246.99
Description
Specifications:
•Collapsed Length (in): 11.19
•Extended Length (in): 15.43
•Collapsed Length (mm): 284.2
•Extended Length (mm): 392.0
•Stroke/travel Length (in): 4.24
•Lower Mount Type: Eye 14.2mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows
•Replacement Mounting Kit: B4-KT1-Z361A00
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
INFINITI QX56 2004-2010, Nissan Armada 2005-2015, Pathfinder Armada 2004, TITAN 2004-2015
Interchange Numbers
•AutoZone 450470
•Bilstein 24-186759
•BQNV 24197649
•Collapsed Length (in): 11.19
•Extended Length (in): 15.43
•Collapsed Length (mm): 284.2
•Extended Length (mm): 392.0
•Stroke/travel Length (in): 4.24
•Lower Mount Type: Eye 14.2mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows
•Replacement Mounting Kit: B4-KT1-Z361A00
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
INFINITI QX56 2004-2010, Nissan Armada 2005-2015, Pathfinder Armada 2004, TITAN 2004-2015
Interchange Numbers
•AutoZone 450470
•Bilstein 24-186759
•BQNV 24197649
