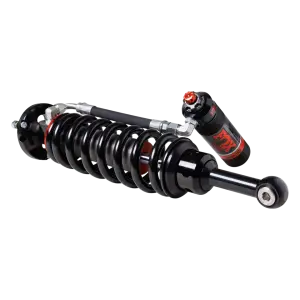

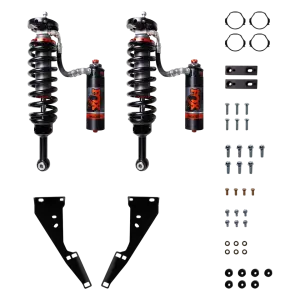

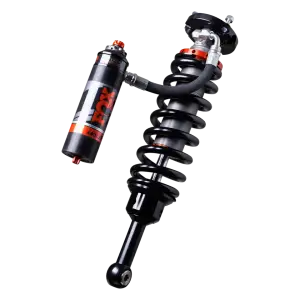

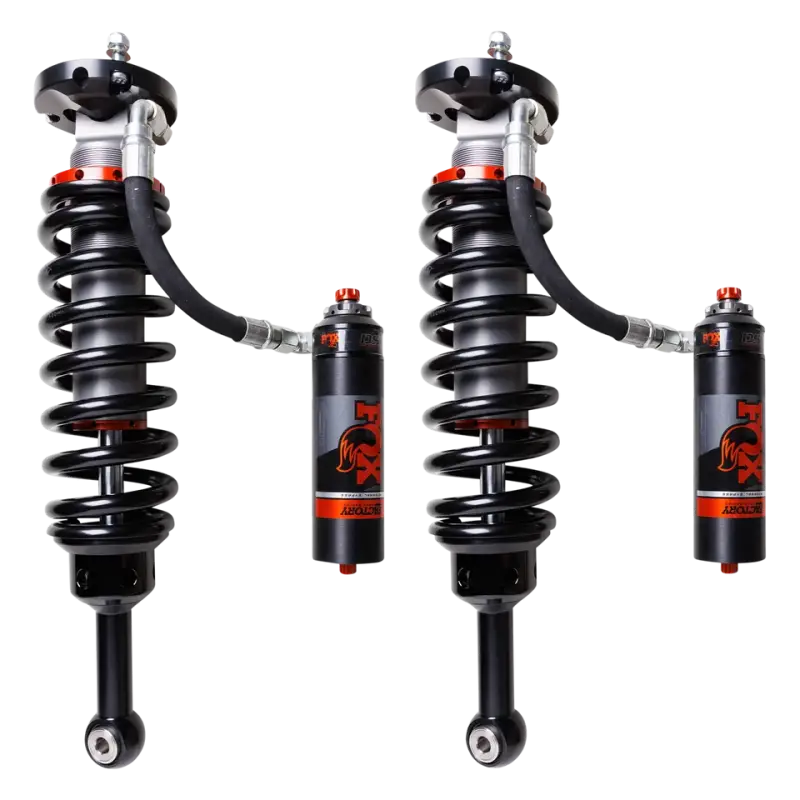

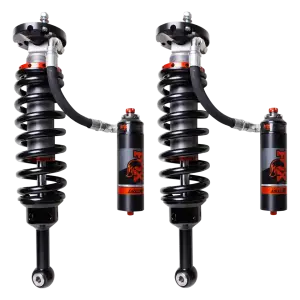

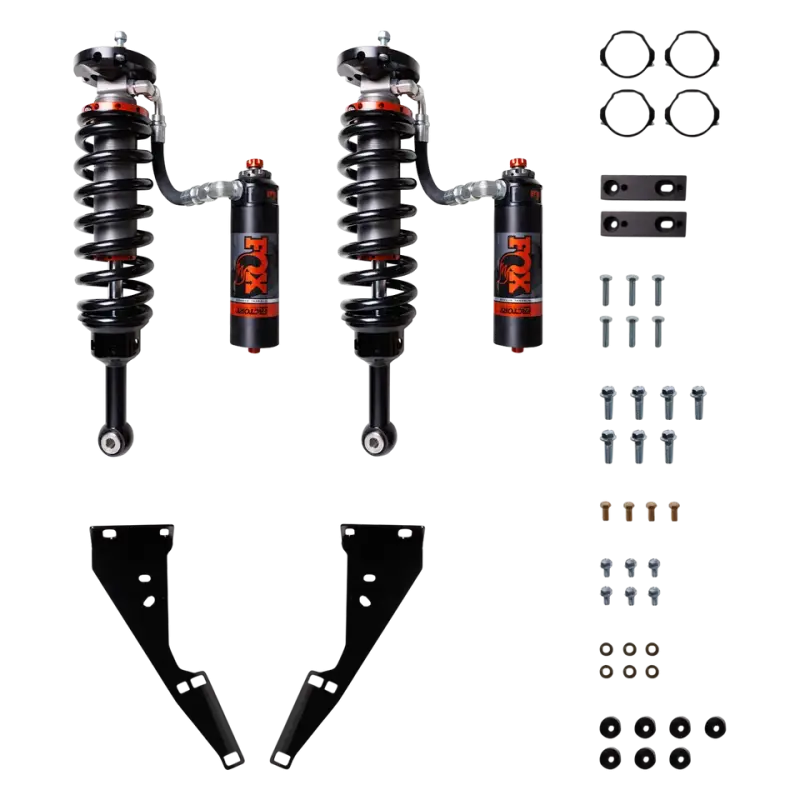

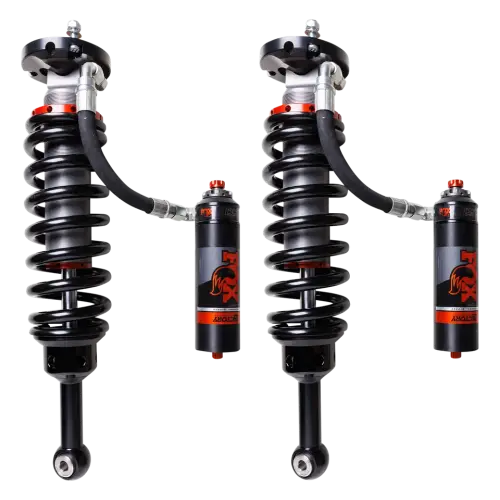

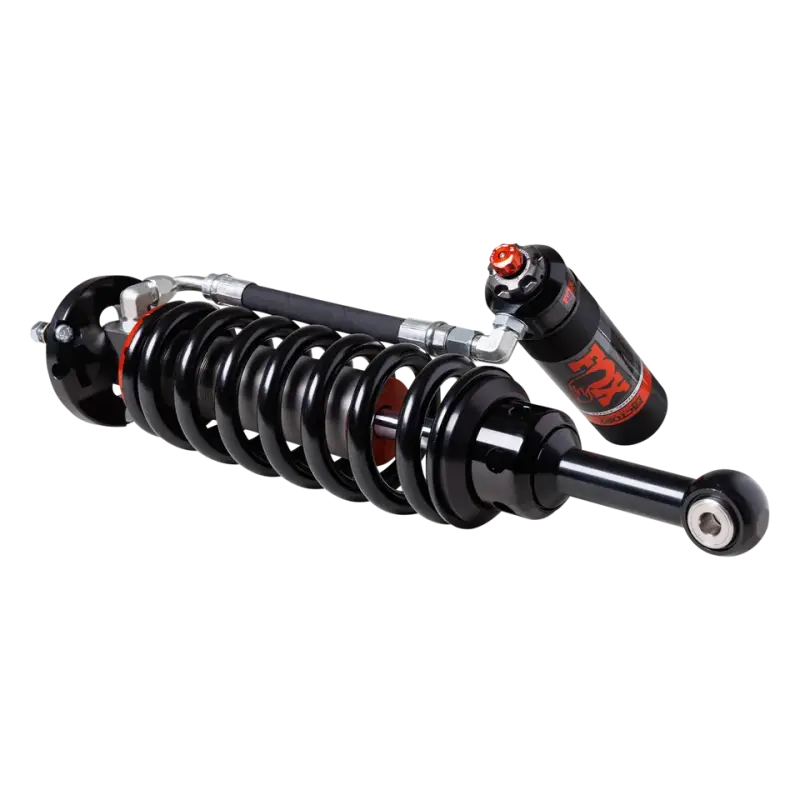

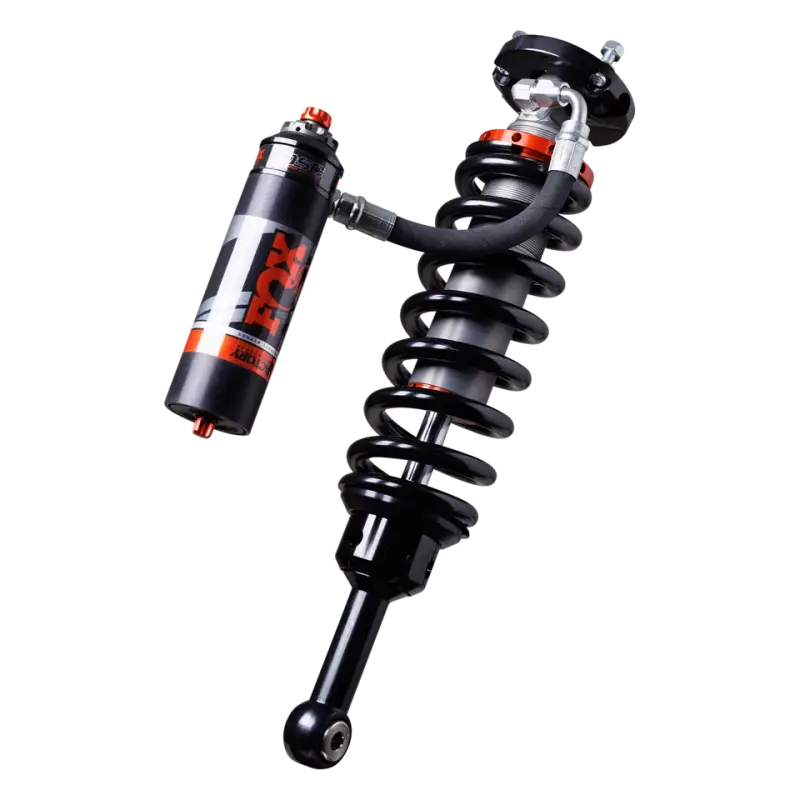

Fox 2.5 Performance Elite Series Shocks for Toyota (2003-24) 4Runner / (2007-14) FJ Cruiser (Front, Lifted 2"-3")
883-06-227
FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota 4Runner deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
Type III anodization prevents corrosion and wear of the 2.5-inch diameter aluminum bodies. Dial in your 4Runner for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.
Experience the support and confidence of FOX Internal Bypass shocks you need while driving high-speed through rugged terrain.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
Type III anodization prevents corrosion and wear of the 2.5-inch diameter aluminum bodies. Dial in your 4Runner for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.
Experience the support and confidence of FOX Internal Bypass shocks you need while driving high-speed through rugged terrain.
Pricing:
$2,835.99
Description
Features:
•2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
•Patented, internal bypass design
•Application-specific springs
•7/8" hard chromed steel shafts
•Vehicle-specific tuning maximizes performance
•Redundant sealing pack system: main seal, wiper seal, scraper seal

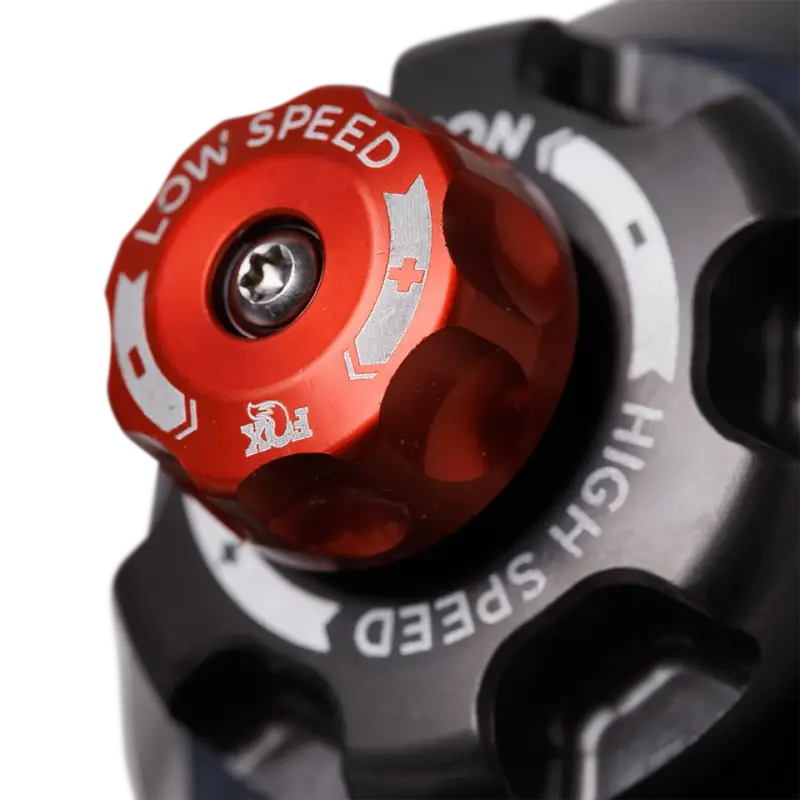

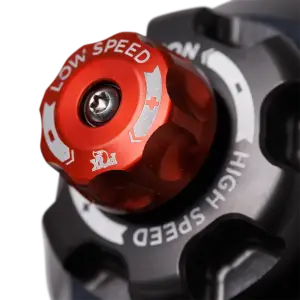

•External reservoir, with DSC adjuster
Specifications:
•SERIES Factory Race
•TRAVEL 5.29
•BODY 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
•BODY PLATING Hard-anodized for a durable finish
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•EXTENDED LENGTH 22.48
•COMPRESSED LENGTH 17.19
•TOP MOUNT OEM
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Requires Upper Control Arm
Fitment:
2003 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2004 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2005 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2006 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2007 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2008 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2009 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2010 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2011 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2012 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2013 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2014 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2015 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2016 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2017 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2018 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2019 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2020 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2021 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2022 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2023 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2024 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2007 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2008 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2009 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2010 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2011 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2012 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2013 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2014 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
•2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
•Patented, internal bypass design
•Application-specific springs
•7/8" hard chromed steel shafts
•Vehicle-specific tuning maximizes performance
•Redundant sealing pack system: main seal, wiper seal, scraper seal
•External reservoir, with DSC adjuster
Specifications:
•SERIES Factory Race
•TRAVEL 5.29
•BODY 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
•BODY PLATING Hard-anodized for a durable finish
•PISTON Race-developed high-flow piston design
•VALVING Application specific valving to maximize performance
•EXTENDED LENGTH 22.48
•COMPRESSED LENGTH 17.19
•TOP MOUNT OEM
•BOTTOM MOUNT Eyelet
•FITMENT NOTES Requires Upper Control Arm
Fitment:
2003 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2004 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2005 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2006 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2007 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2008 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2009 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2010 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2011 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2012 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2013 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2014 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2015 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2016 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2017 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2018 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2019 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2020 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2021 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2022 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2023 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2024 Toyota 4Runner All All All All Requires Upper Control Arm Front 2"-3"
2007 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2008 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2009 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2010 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2011 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2012 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2013 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
2014 Toyota FJ Cruiser All All All All Requires Upper Control Arm Front 2"-3"
Details
- 883-06-227
- 883-06-227
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 20.0 lbs.
- W19.0000” x H10.0000” x L32.0000”
- Free Shipping
