BILSTEIN B8 5100 Series (Ride Height Adjustable) - Shock Absorber for Chevy/GMC (2014-19) 1500 Silverado/Sierra
24-336895

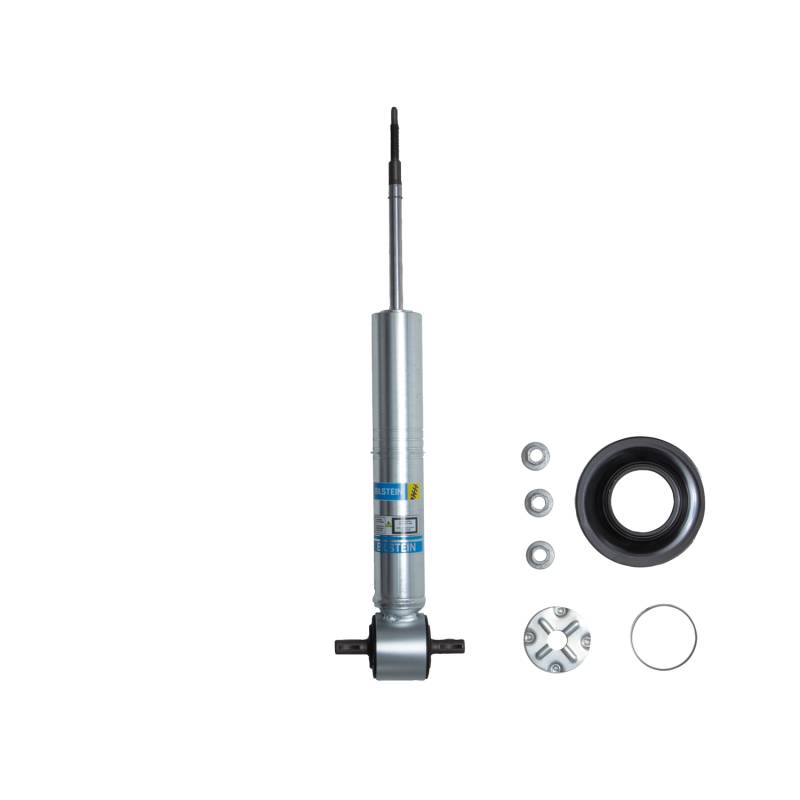

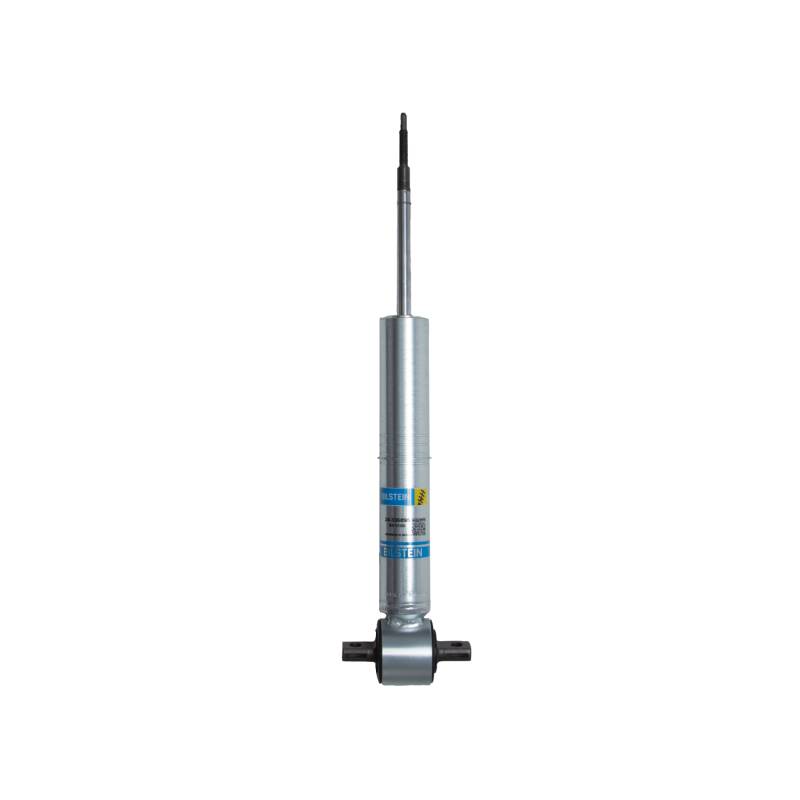

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Pricing:
$246.99
Description
Specifications:
•Collapsed Length (in): 15.00
•Extended Length (in): 18.89
•Collapsed Length (mm): 381.0
•Extended Length (mm): 479.7
•Stroke/travel Length (in): 3.89
•Lower Mount Type: Bar Pin
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Chevrolet Silverado 1500 2014-2018, Silverado 1500 LD 2019,
GMC Sierra 1500 2014-2018, Sierra 1500 Limited 2019
Interchange Numbers
Bilstein 24-238304
BQNV 24336895
FOX Offroad Shocks 985-62-002
Rancho RS77830
•Collapsed Length (in): 15.00
•Extended Length (in): 18.89
•Collapsed Length (mm): 381.0
•Extended Length (mm): 479.7
•Stroke/travel Length (in): 3.89
•Lower Mount Type: Bar Pin
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Chevrolet Silverado 1500 2014-2018, Silverado 1500 LD 2019,
GMC Sierra 1500 2014-2018, Sierra 1500 Limited 2019
Interchange Numbers
Bilstein 24-238304
BQNV 24336895
FOX Offroad Shocks 985-62-002
Rancho RS77830
Details
- 24-336895
- 24-336895
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 7.8 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
