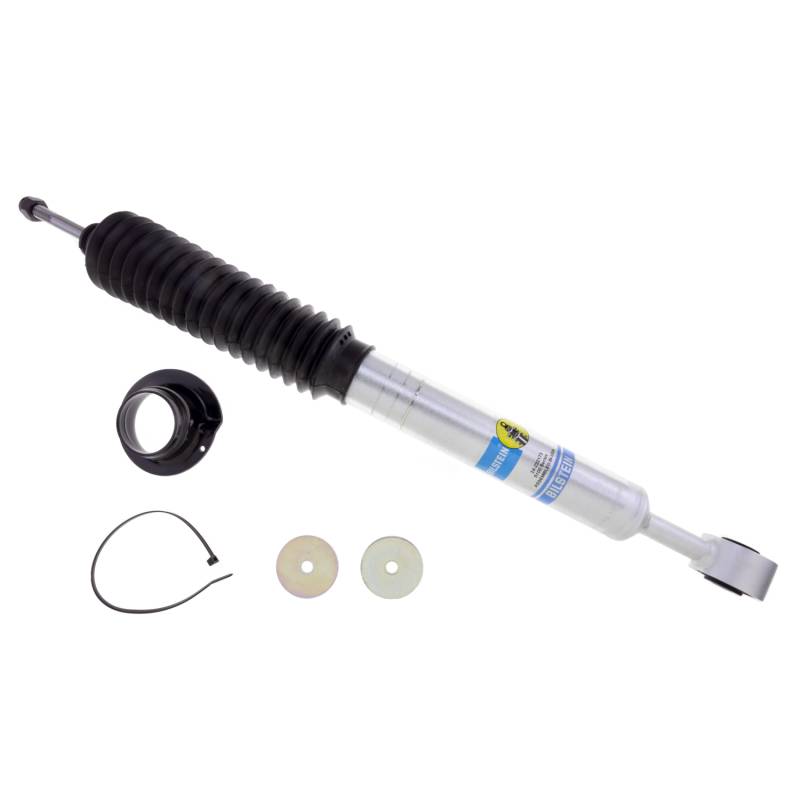

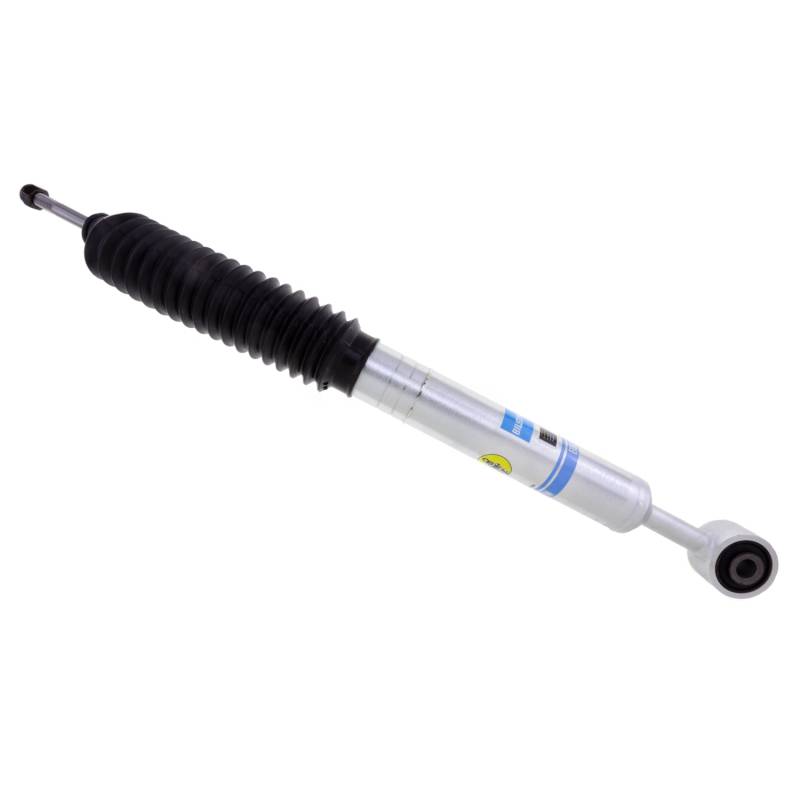

BILSTEIN B8 5100 Series (Ride Height Adjustable) - Shock Absorber for Toyota (2007-21) Tundra
24-232173
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Pricing:
$246.99
Description
Specifications:
•Collapsed Length (in): 17.77
•Extended Length (in): 24.35
•Collapsed Length (mm): 451.3
•Extended Length (mm): 618.5
•Stroke/travel Length (in): 6.44
•Lower Mount Type: Eye 16.4mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows

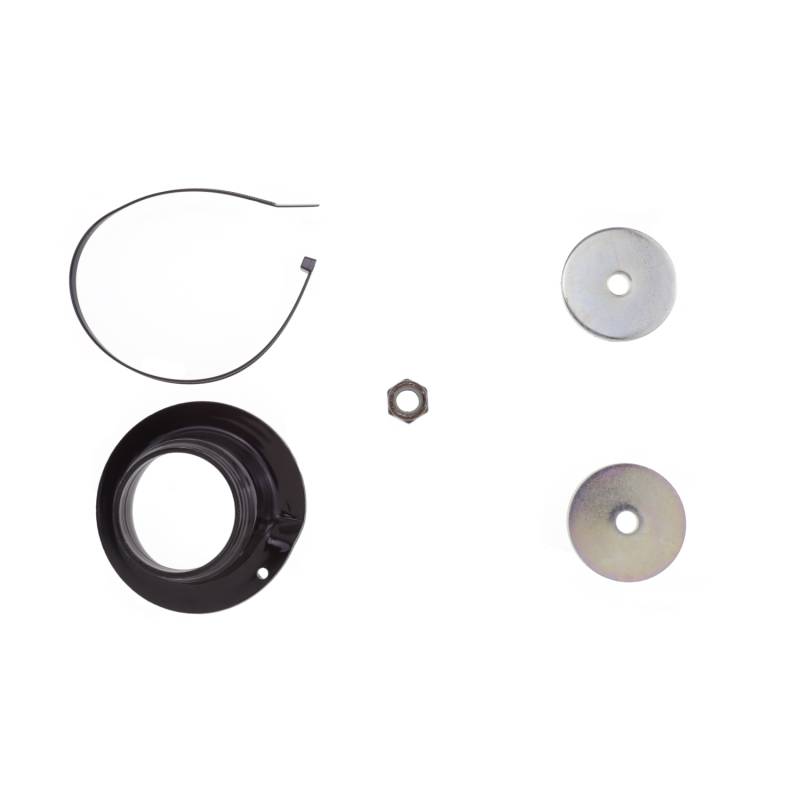

•Replacement Mounting Kit: B4-KT1-Z243A02
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Toyota Tundra 2007-2021
Interchange Numbers
•AutoZone 805381
•Bilstein 24-186964
•BQNV 24232173
•FOX Offroad Shocks 985-62-003
•Rancho RS77759
•Collapsed Length (in): 17.77
•Extended Length (in): 24.35
•Collapsed Length (mm): 451.3
•Extended Length (mm): 618.5
•Stroke/travel Length (in): 6.44
•Lower Mount Type: Eye 16.4mm
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: Black Bellows
•Replacement Mounting Kit: B4-KT1-Z243A02
•Spring Seat Included: Yes
•Shaft Diameter: 14mm
•Adjustable Damping: Non-Adjustable
Fitment:
Toyota Tundra 2007-2021
Interchange Numbers
•AutoZone 805381
•Bilstein 24-186964
•BQNV 24232173
•FOX Offroad Shocks 985-62-003
•Rancho RS77759
Details
- 24-232173
- 24-232173
- 651860730707
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 5.8 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
