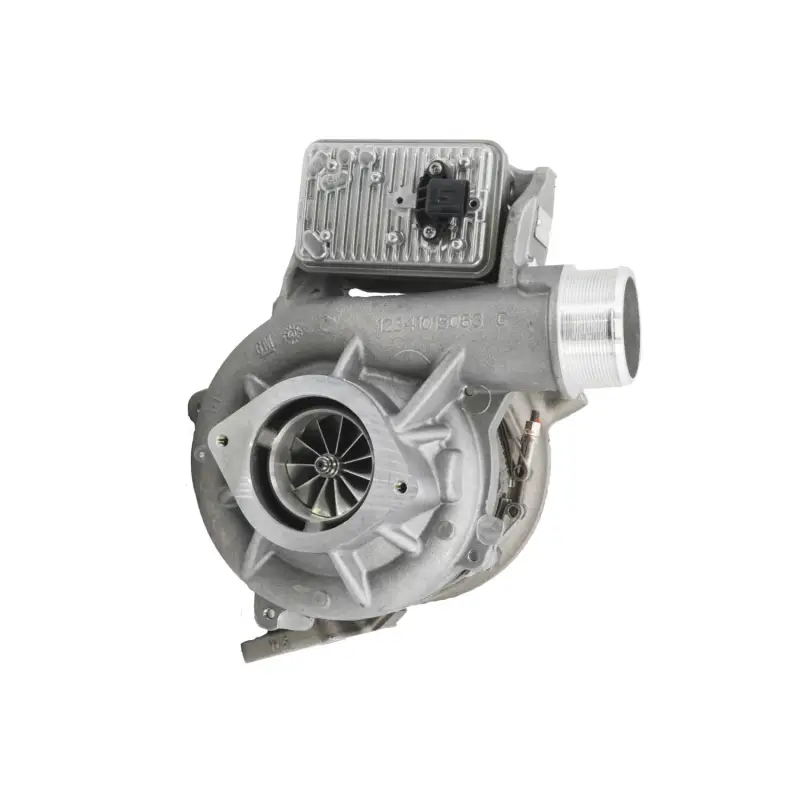

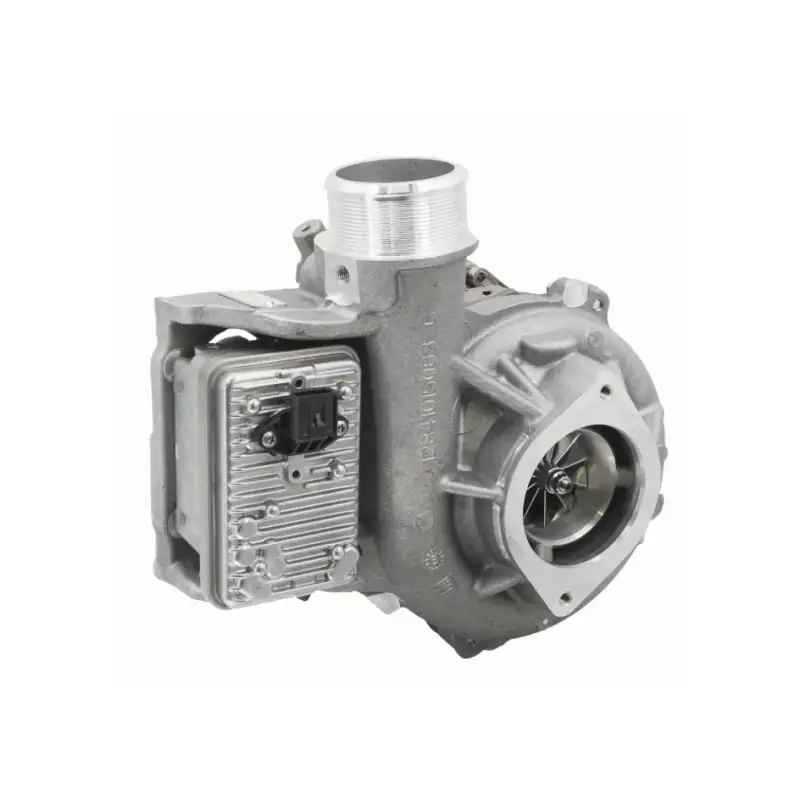

Calibrated Power Stealth Mach 1 64 Drop-In Turbo for Chevy/GMC (2017-23) 6.6L Duramax L5P
CPS200275
When looking to upgrade the performance of your L5P Duramax, wouldn't you prefer something that installs easily AND delivers the power you're after? You can with the Stealth Mach 1 64mm turbo! This turbo outflows the factory charger and can support up to 650 rear-wheel horsepower with all factory emissions intact.
The crown jewel of this turbo is a custom 11-blade compressor wheel that delivers a wide efficiency range and can flow 74 pounds per minute of mass airflow, compared to the stock unit, which only flows 60 pounds per minute. It is built from lightweight yet strong billet aluminum and will help reduce or even eliminate turbo surge when towing. On the opposite end of the turbo, the turbine wheel has been upgraded to a 9-blade to deliver a distinctive sound and provide better efficiency to reduce exhaust gas temperatures (EGT's) and reduce drive pressure when under load.
The crown jewel of this turbo is a custom 11-blade compressor wheel that delivers a wide efficiency range and can flow 74 pounds per minute of mass airflow, compared to the stock unit, which only flows 60 pounds per minute. It is built from lightweight yet strong billet aluminum and will help reduce or even eliminate turbo surge when towing. On the opposite end of the turbo, the turbine wheel has been upgraded to a 9-blade to deliver a distinctive sound and provide better efficiency to reduce exhaust gas temperatures (EGT's) and reduce drive pressure when under load.
Availability: Not Legal for sale or use in California!
Pricing:
$3,149.99
Description

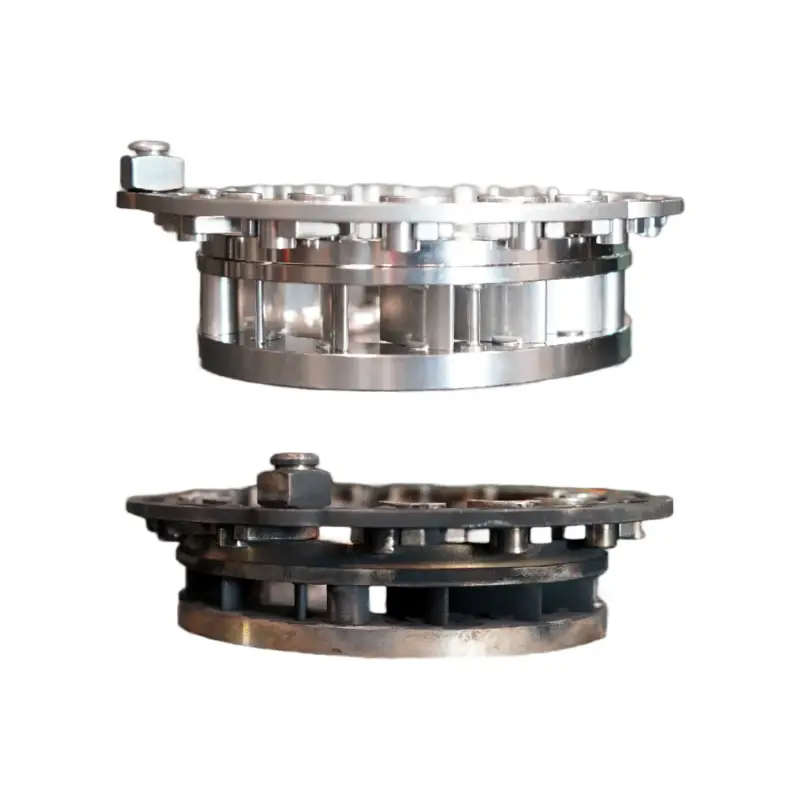

To properly match the entire turbo, a custom vane/nozzle ring assembly was built in-house at Calibrated Power. This upgraded design features taller, wider vanes to match the larger turbine, providing superior high-load efficiency while retaining the factory exhaust brake and exclusive throttle response. Finally, this is built from a brand-new turbo, meaning no core charge
Important: This turbocharger does not include an actuator. The actuator is sold separately.
SPECIFICATIONS:
•Turbo Size: 64mm
•Airflow: 74 lb/min (vs. 60 lb/min stock)
•Horsepower Capability: Supports up to 700 HP*
•Real World Power: Up to 650 RWHP with emissions-compliant tuning and supporting mods
•Boost Pressure: 41 PSI @ sea level
•Compressor Wheel: 64mm 11-blade billet (2618 aluminum)
•Turbine Wheel: 70.4mm 9-blade (713C nickel alloy)
•Turbo Type: Variable Geometry Turbo (VGT)
•Vane System: High Flow Vane (HFV) technology
•Installation: Direct bolt-on, stock-appearing drop-in design
•Condition: Brand new (no core charge required)
•Actuator: Not included (sold separately)
•Replaces Part Numbers: 12709701044, 11547786, 12683985, 12689094
EMISSIONS STATEMENT:
•The L5P Stealth 64 turbo has been designed to meet the stated requirements for the federal emissions standards. The turbo is currently not for sale in the state of California although approval is being actively pursued.
WARRANTY:
•All Stealth Series turbos offer an Unlimited Mile, 1 year manufacturer warranty for quality and craftsmanship.
Fitment:
2017-2023 GM 6.6L GM Duramax L5P
Important: This turbocharger does not include an actuator. The actuator is sold separately.
SPECIFICATIONS:
•Turbo Size: 64mm
•Airflow: 74 lb/min (vs. 60 lb/min stock)
•Horsepower Capability: Supports up to 700 HP*
•Real World Power: Up to 650 RWHP with emissions-compliant tuning and supporting mods
•Boost Pressure: 41 PSI @ sea level
•Compressor Wheel: 64mm 11-blade billet (2618 aluminum)
•Turbine Wheel: 70.4mm 9-blade (713C nickel alloy)
•Turbo Type: Variable Geometry Turbo (VGT)
•Vane System: High Flow Vane (HFV) technology
•Installation: Direct bolt-on, stock-appearing drop-in design
•Condition: Brand new (no core charge required)
•Actuator: Not included (sold separately)
•Replaces Part Numbers: 12709701044, 11547786, 12683985, 12689094
EMISSIONS STATEMENT:
•The L5P Stealth 64 turbo has been designed to meet the stated requirements for the federal emissions standards. The turbo is currently not for sale in the state of California although approval is being actively pursued.
WARRANTY:
•All Stealth Series turbos offer an Unlimited Mile, 1 year manufacturer warranty for quality and craftsmanship.
Fitment:
2017-2023 GM 6.6L GM Duramax L5P
