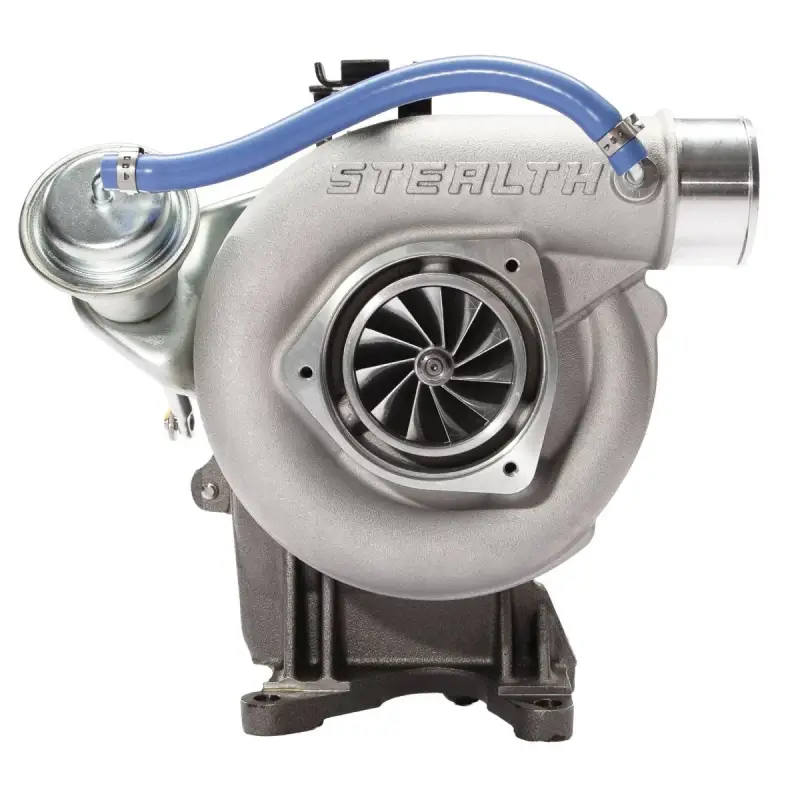

Calibrated Power Stealth Mach 1 (64mm) Turbo for Chevy/GMC (2001-04) 6.6L Duramax LB7
CPS200226
It's still a direct drop-in, bolt-on stock appearing replacement but with features you won't find anywhere else. The 64mm Mach1 turbo from Calibrated Power improves power, towing potential, and overall performance through a custom-designed high-flow turbine assembly, a billet compressor wheel, and 360-degree thrust bearings.
The larger turbine assembly allows for lower drive pressure, creating a better balance between boost and drive (exhaust backpressure). This improved balance under heavy load means more efficiency and power at a given boost number, resulting in lower EGT's (Exhaust Gas Temperature) under heavy load. Overall peak power is also improved, where the Stealth 64 G1 would normally support 600-610 HP, the G2 now pushes the envelope to 640HP. You're not going to find all of these features anywhere else in the aftermarket in a truly stock appearing, bolt-in IHI turbocharger.
The larger turbine assembly allows for lower drive pressure, creating a better balance between boost and drive (exhaust backpressure). This improved balance under heavy load means more efficiency and power at a given boost number, resulting in lower EGT's (Exhaust Gas Temperature) under heavy load. Overall peak power is also improved, where the Stealth 64 G1 would normally support 600-610 HP, the G2 now pushes the envelope to 640HP. You're not going to find all of these features anywhere else in the aftermarket in a truly stock appearing, bolt-in IHI turbocharger.
Availability: Not Legal for sale or use in California!
Pricing:
$2,100.99
Description
The Stealth 64 has been on the market since 2013 and represents everything the team at Calibrated Power has learned, coupled with their in-house manufacturing and quality control to bring the Stealth 64 to the next level.
IMPORTANT NOTE: This turbo will not replace the turbo on a CA emissions truck that was equipped with EGR. Only for fitment on Federal emissions trucks that were not equipped with EGR.
Features:
•640+ RWHP Peak
•Billet Compressor Wheel
•64mm, 11-Blade Exclusive design
•Quick Spool-Up
•High Flow Turbine Wheel
•Larger than stock
•Matched perfectly to the custom compressor wheel
•Custom Cut Cover
•Custom Cut Exhaust Housing
•360-degree Thrust Bearing
•High Flow Ported Turbine Housing
•Wide Torque Curve
•Direct Bolt-On
•Lower EGT’s
•Great Daily Driving/Towing
OPTIONAL INSTALLATION KIT COMPONENTS:
•(2) Gasket - Upper Up-Pipe
•(1) Gasket - Lower Turbo Drain
•(2) Gasket - Turbo Feed Line
•(1) Gasket - Upper Turbo Drain
•(2) Seal - Turbo Oil Feed
•(2) Gasket - Lower Up-pipe
Fitment:
2001-2004 6.6L GM Duramax LB7
IMPORTANT NOTE: This turbo will not replace the turbo on a CA emissions truck that was equipped with EGR. Only for fitment on Federal emissions trucks that were not equipped with EGR.
Features:
•640+ RWHP Peak
•Billet Compressor Wheel
•64mm, 11-Blade Exclusive design
•Quick Spool-Up
•High Flow Turbine Wheel
•Larger than stock
•Matched perfectly to the custom compressor wheel
•Custom Cut Cover
•Custom Cut Exhaust Housing
•360-degree Thrust Bearing
•High Flow Ported Turbine Housing
•Wide Torque Curve
•Direct Bolt-On
•Lower EGT’s
•Great Daily Driving/Towing
OPTIONAL INSTALLATION KIT COMPONENTS:
•(2) Gasket - Upper Up-Pipe
•(1) Gasket - Lower Turbo Drain
•(2) Gasket - Turbo Feed Line
•(1) Gasket - Upper Turbo Drain
•(2) Seal - Turbo Oil Feed
•(2) Gasket - Lower Up-pipe
Fitment:
2001-2004 6.6L GM Duramax LB7
