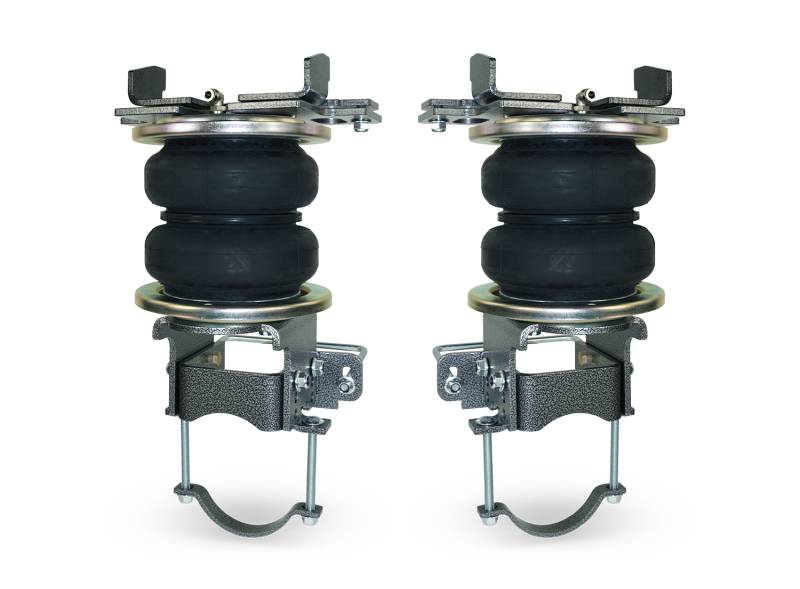

Pacbrake Alpha XD Pro Air Suspension for Ford (2017-26) F-250/F-350/F-450 Super Duty

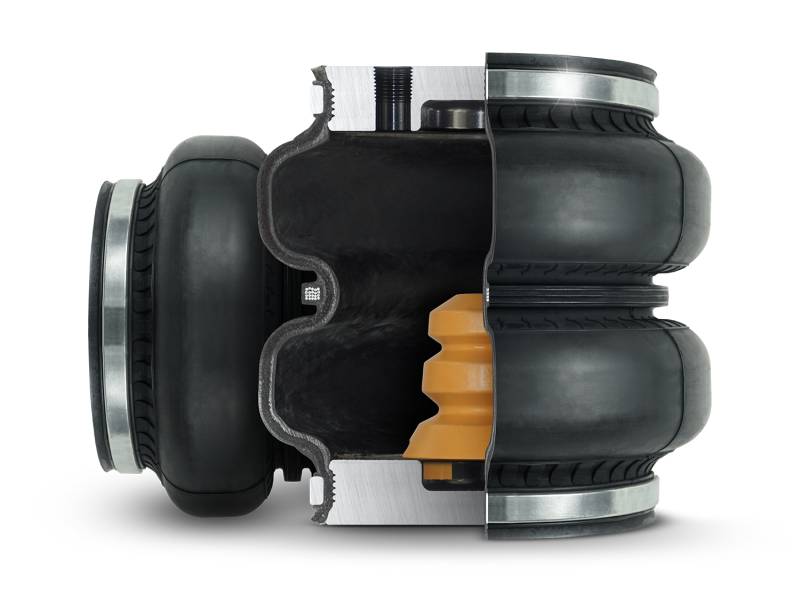

Designed for durability and performance, the ALPHA XD PROTM Series comes with Jounce Bumpers/Bump Stops, a flexible polyurethane bumper inside the bag that prevents bottoming out, which could damage your air springs, and allows you to run your bags at 0 psi when unloaded for factory ride comfort.

Perfect for those that want the peace of mind of having an internal bumper and covet the ride comfort of being able to run without air when not towing.

For those that desire maximum bag travel, a great benefit when offroading, towing and launching boats, or for those that constantly need to lower their rear to pick up trailers, consider our HP10609-X ALPHA XD air bag.

7,500 lbs of load leveling capacity*

* Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Fitment:
2017-2026 Ford F-250 Super Duty (2WD/4WD) SRW & DRW
2017-2026 Ford F-350 Super Duty (2WD/4WD) SRW & DRW
2017-2026 Ford F-450 Super Duty (2WD/4WD) SRW & DRW

Notes
•Will not fit Chassis Cab models
•Will not fit with Pacbrake’s 5" Rear Block Kits (HP10517 / HP10521)
•PLEASE NOTE: Will not fit on vehicles where the distance between the top of the rear axle and the bottom of the frame at the jounce bumper mounting point is greater than 12” See additional details

•ALPHA XD kits (-X / -X-J) are not compatible with Pacbrake’s 2” / 4” / 6” Air Spring Spacers
