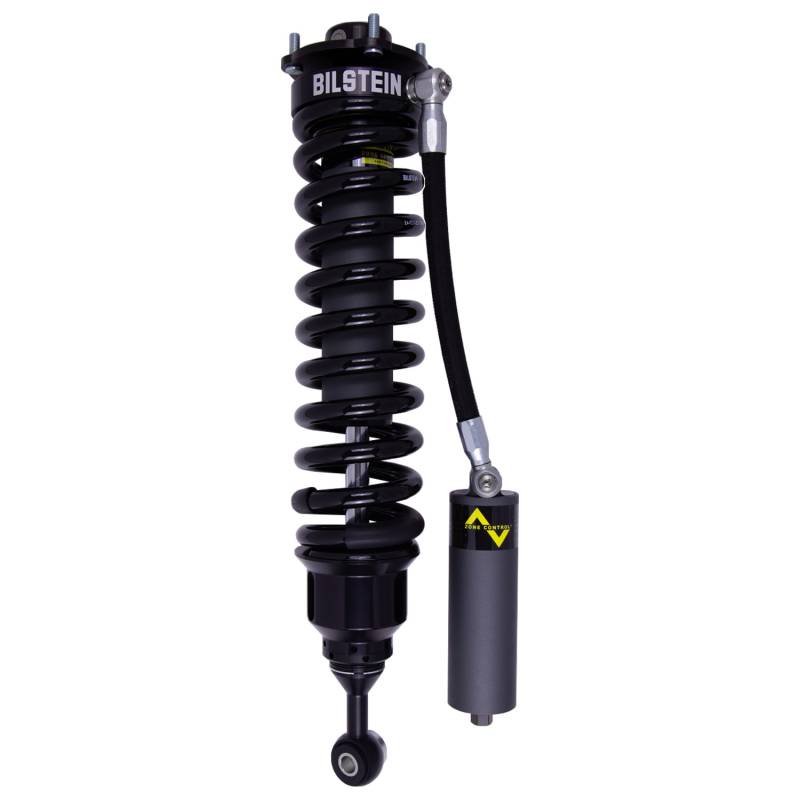

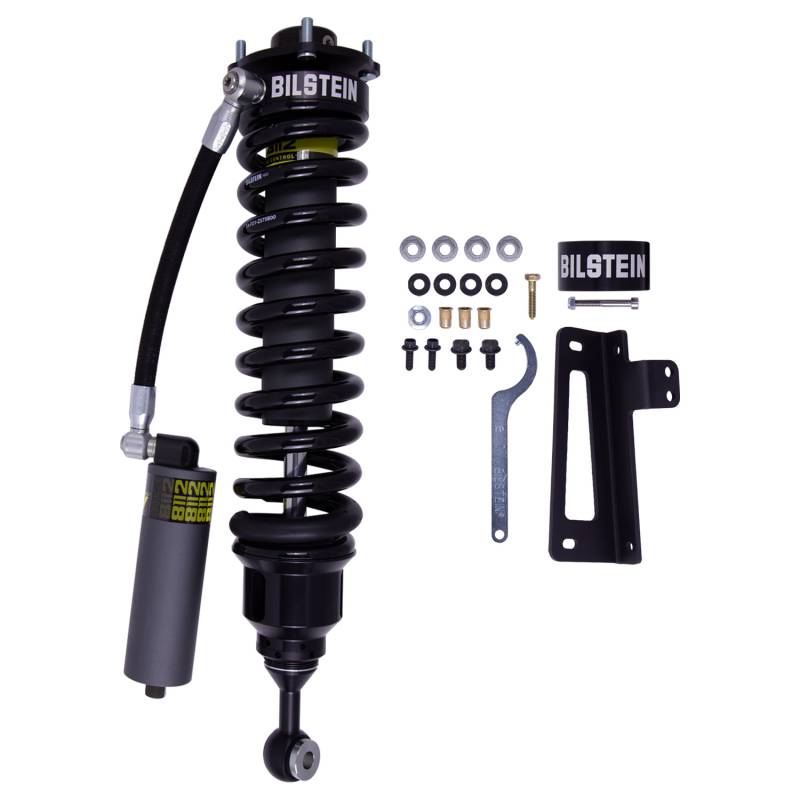

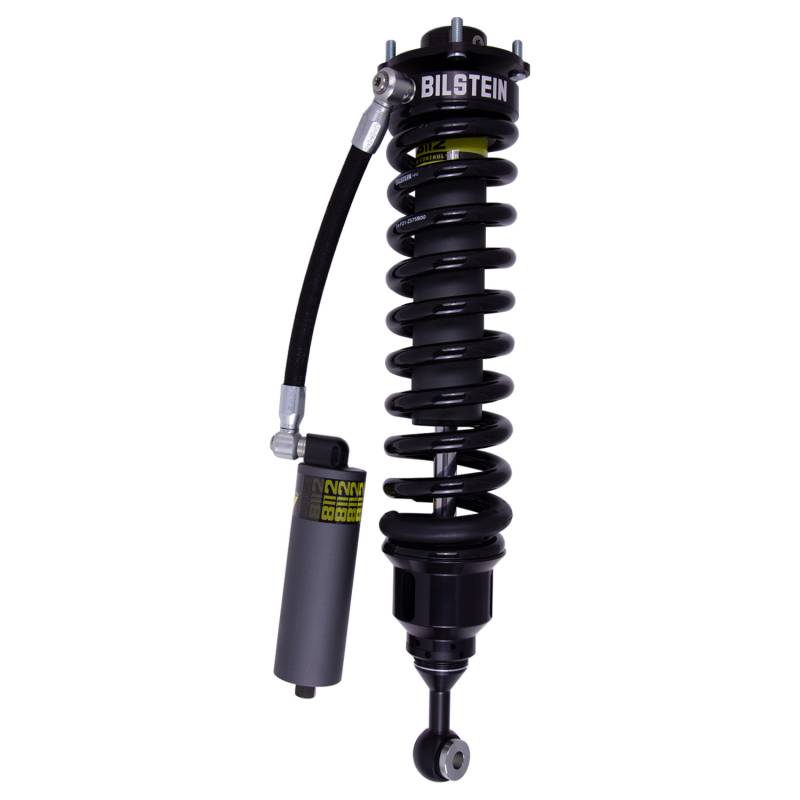

BILSTEIN B8 8112 (Zone Control CR) - Front Right Corner Module for Toyota (2007-21) Tundra
41-326039
Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
•Applications: Y
•Country of Origin: US
•Quantity per Vehicle: 1
•Warranty: Limited 2-Year Warranty
Pricing:
$1,265.99
Description
Specifications:
•Collapsed Length (in): 19.43
•Extended Length (in): 25.79
•Collapsed Length (mm): 493.6
•Extended Length (mm): 655.1
•Lower Mount Type: Eye 16.1mm
•Upper Mount Type: Special
•Internal Design: Monotube
•Finish: Dampers: EVO Grey/Springs: Black
•Reservoir: Yes
•Body Design: Smooth Body (Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Body Material: Steel
•Boot Included: No
•Spring Seat Included: Yes
•Front Main Spring Rate (lbs/in): 650 lbs
•Shaft Diameter (mm): 22.0
•Adjustable Damping: Non-Adjustable
•Aftermarket Upper Arms Required: Yes
Fitment:
Toyota Tundra 2007-2021
Interchange Numbers
•Bilstein 41-284551
•BQNV 41326039
•FOX Offroad Shocks 880-02-367
•ICON Vehicle Dynamics 58750
•King Shocks 25001-143
•Collapsed Length (in): 19.43
•Extended Length (in): 25.79
•Collapsed Length (mm): 493.6
•Extended Length (mm): 655.1
•Lower Mount Type: Eye 16.1mm
•Upper Mount Type: Special
•Internal Design: Monotube
•Finish: Dampers: EVO Grey/Springs: Black
•Reservoir: Yes
•Body Design: Smooth Body (Coilover)
•Body Diameter (od): 2.65 in.
•Piston Diameter: 60mm
•Body Material: Steel
•Boot Included: No
•Spring Seat Included: Yes
•Front Main Spring Rate (lbs/in): 650 lbs
•Shaft Diameter (mm): 22.0
•Adjustable Damping: Non-Adjustable
•Aftermarket Upper Arms Required: Yes
Fitment:
Toyota Tundra 2007-2021
Interchange Numbers
•Bilstein 41-284551
•BQNV 41326039
•FOX Offroad Shocks 880-02-367
•ICON Vehicle Dynamics 58750
•King Shocks 25001-143
Details
- 41-326039
- 41-326039
- 651860891866
- BILSTEIN
- New
Shipping Information
- Item Requires Shipping
- 43.2 lbs.
- W3.0000” x H3.0000” x L23.0000”
- Free Shipping
