Fox 2.5 Performance Series HTO Shock for Chevy/GMC (2011-19) 2500HD/3500HD (Front, Lifted 4")
987-24-032

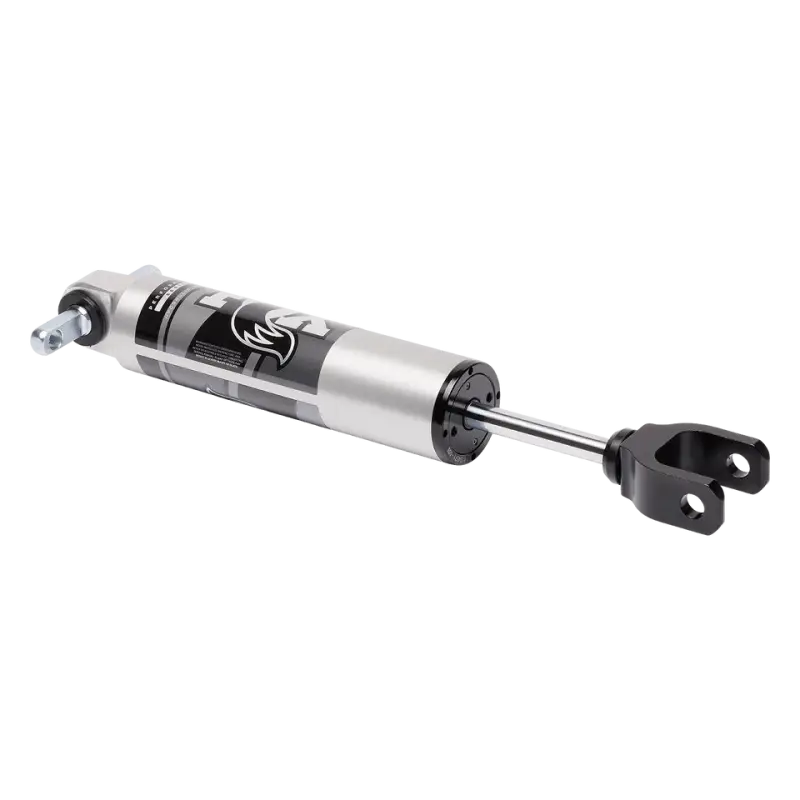

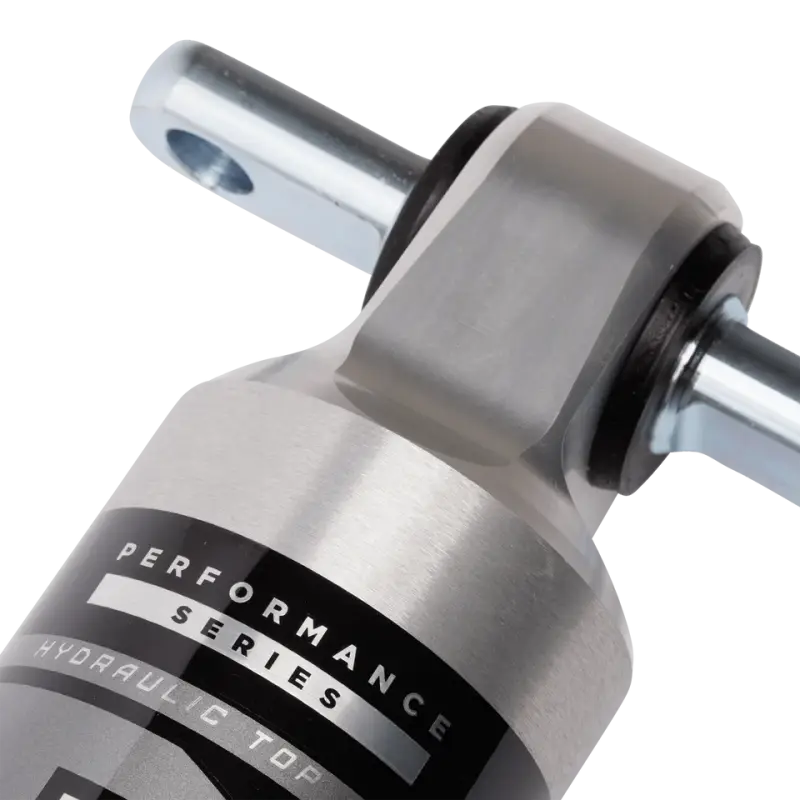

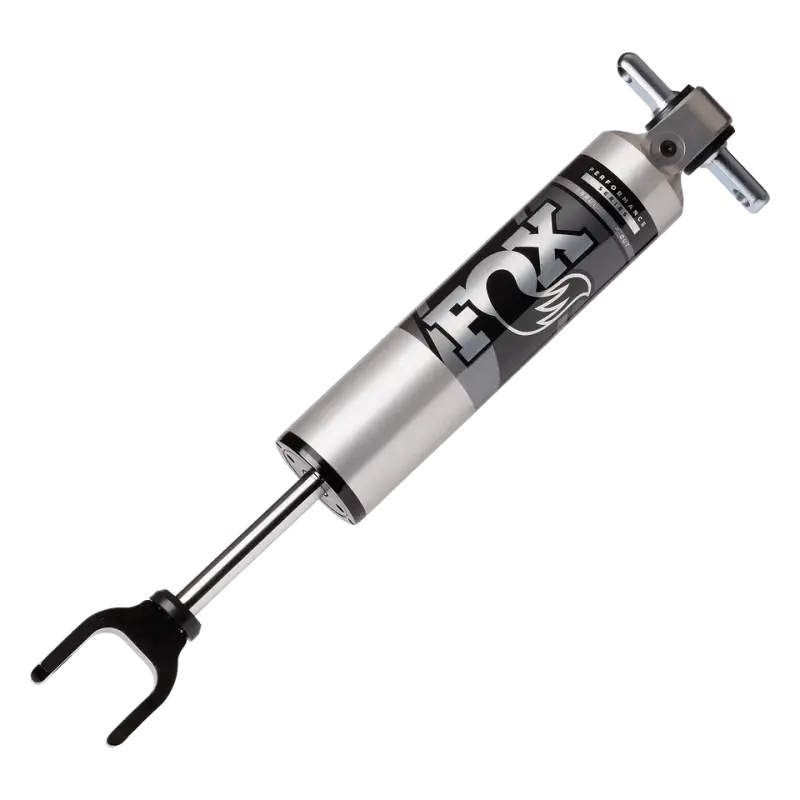

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Pricing:
$346.99
Description
Features:
•2.5” Impact extruded 6061-T6 aluminum shock body
•Type II clear-anodized body plating
•High-flow velocity-sensitive damping
•5/8” hard chrome shaft
•Internal floating piston (IFP)
•Hydraulic Top Out (HTO) piston
Specifications:
•SERIES Performance
•TRAVEL 6.79
•EXTENDED LENGTH 21.85
•COMPRESSED LENGTH 15.07
•TOP MOUNT Bar Pin
•BOTTOM MOUNT Clevis
•FITMENT NOTES Lift: 4 inches Not For Use With Lift Kits That Change OE Mounts
Fitment:
2011 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2011 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2011 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2011 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
•2.5” Impact extruded 6061-T6 aluminum shock body
•Type II clear-anodized body plating
•High-flow velocity-sensitive damping
•5/8” hard chrome shaft
•Internal floating piston (IFP)
•Hydraulic Top Out (HTO) piston
Specifications:
•SERIES Performance
•TRAVEL 6.79
•EXTENDED LENGTH 21.85
•COMPRESSED LENGTH 15.07
•TOP MOUNT Bar Pin
•BOTTOM MOUNT Clevis
•FITMENT NOTES Lift: 4 inches Not For Use With Lift Kits That Change OE Mounts
Fitment:
2011 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 Chevrolet Silverado 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2011 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 Chevrolet Silverado 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2011 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 GMC Sierra 2500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2011 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2012 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2013 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2014 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2015 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2016 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2017 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2018 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
2019 GMC Sierra 3500 HD All All All All Not For Use With Lift Kits That Change OE Mounts Front 4"
Details
- 987-24-032
- 987-24-032
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W2.5000” x H2.5000” x L41.0000”
