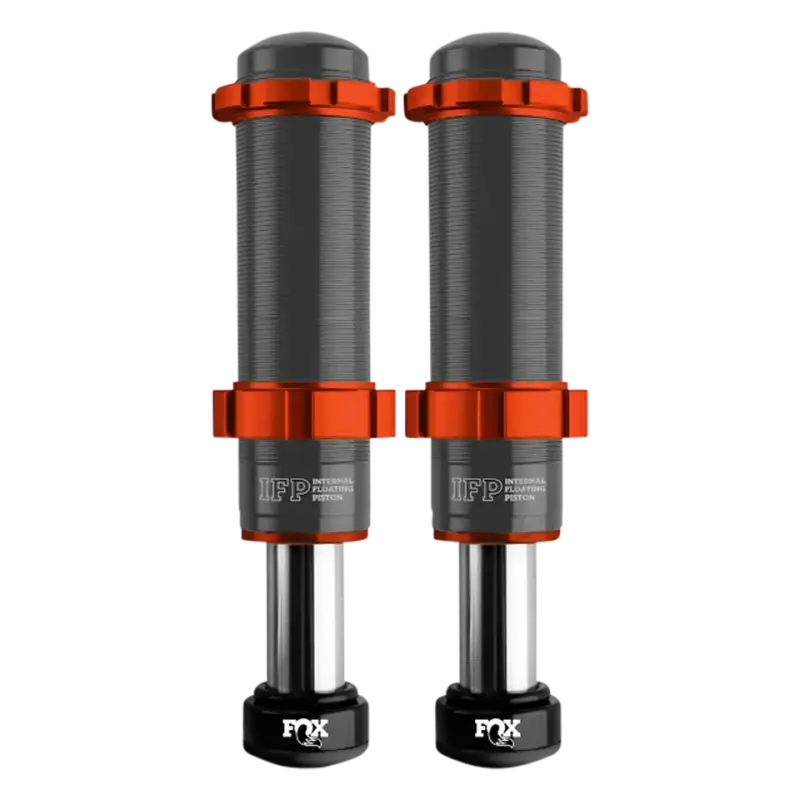

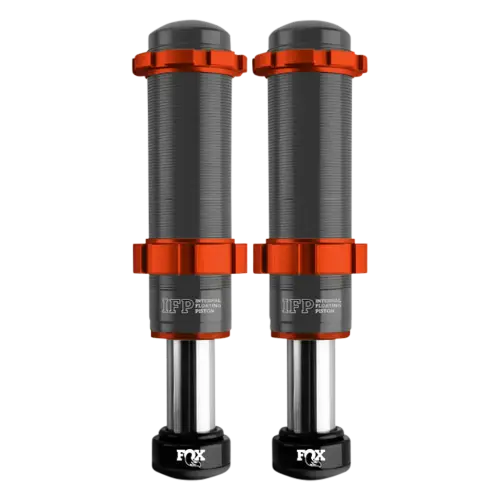

Fox 2.0 Factory Race Series Bump Stop for Jeep (2020-25) Gladiator / (2018-25) Wrangler (Front)
883-02-167
Inspired by it's off-road racing predecessors, the new Factory Race Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel.
The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.
Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.
The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.
Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.
Pricing:
$829.99
Description
Specifications:
•SERIES Factory Race
•TRAVEL 1.85
•FRONT LIFT HEIGHT ALL
•BODY Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
•COMPONENTS Black anodized, CNC machined 6061-T6 billet aluminum
•SHAFT Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
•PISTON Heavy-duty powdered steel
•VALVING Tunable, velocity sensitive deburred valve shims
•SEALS Redundant sealing pack system, main seal, wiper seal, scraper seal
•EXTENDED LENGTH 10.04
•COMPRESSED LENGTH 8.18
•TOP MOUNT Threaded Body
•BOTTOM MOUNT None
Features:
•Modifications Required;
•Performance Tuned For Vehicle Specific Application;
•Aluminum Body Dissipates Heat Faster Than Steel;
•IFP Separates Oil From High-Pressure Nitrogen Gas;
•Black Anodized CNC Machined Aluminum Components
Fitment:
2020 Jeep Gladiator All All All All Front
2021 Jeep Gladiator All All All All Front
2022 Jeep Gladiator All All All All Front
2023 Jeep Gladiator All All All All Front
2024 Jeep Gladiator All All All All Front
2025 Jeep Gladiator All All All All Front
2018 Jeep Wrangler All All All All Front
2019 Jeep Wrangler All All All All Front
2020 Jeep Wrangler All All All All Front
2021 Jeep Wrangler All All All All Front
2022 Jeep Wrangler All All All All Front
2023 Jeep Wrangler All All All All Front
2024 Jeep Wrangler All All All All Front
2025 Jeep Wrangler All All All All Front
•SERIES Factory Race
•TRAVEL 1.85
•FRONT LIFT HEIGHT ALL
•BODY Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
•COMPONENTS Black anodized, CNC machined 6061-T6 billet aluminum
•SHAFT Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
•PISTON Heavy-duty powdered steel
•VALVING Tunable, velocity sensitive deburred valve shims
•SEALS Redundant sealing pack system, main seal, wiper seal, scraper seal
•EXTENDED LENGTH 10.04
•COMPRESSED LENGTH 8.18
•TOP MOUNT Threaded Body
•BOTTOM MOUNT None
Features:
•Modifications Required;
•Performance Tuned For Vehicle Specific Application;
•Aluminum Body Dissipates Heat Faster Than Steel;
•IFP Separates Oil From High-Pressure Nitrogen Gas;
•Black Anodized CNC Machined Aluminum Components
Fitment:
2020 Jeep Gladiator All All All All Front
2021 Jeep Gladiator All All All All Front
2022 Jeep Gladiator All All All All Front
2023 Jeep Gladiator All All All All Front
2024 Jeep Gladiator All All All All Front
2025 Jeep Gladiator All All All All Front
2018 Jeep Wrangler All All All All Front
2019 Jeep Wrangler All All All All Front
2020 Jeep Wrangler All All All All Front
2021 Jeep Wrangler All All All All Front
2022 Jeep Wrangler All All All All Front
2023 Jeep Wrangler All All All All Front
2024 Jeep Wrangler All All All All Front
2025 Jeep Wrangler All All All All Front
Details
- 883-02-167
- 883-02-167
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 49.0 lbs.
- W17.5000” x H8.5000” x L31.5000”
- Free Shipping
