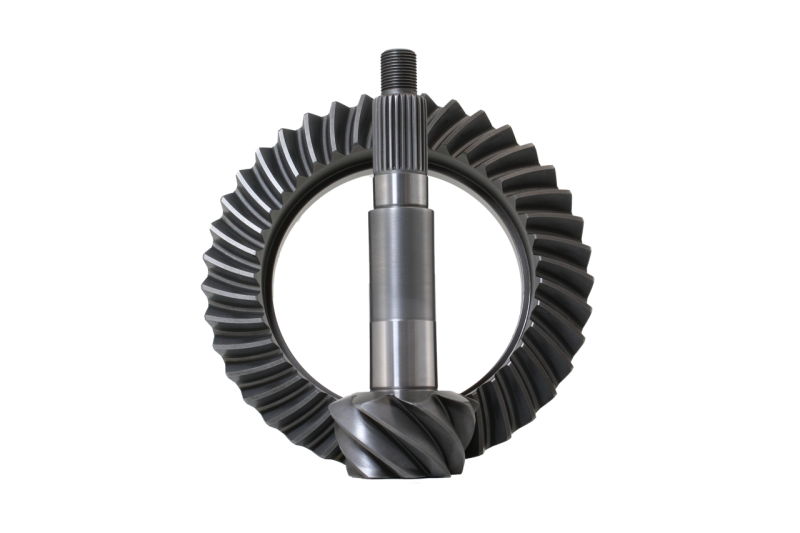

Revolution Gear & Axle Ring & Pinion Set for Dana 44 Standard Rotation (4.10 Ratio)

This Revolution Gear & Axle ring and pinion set fits the Dana 44 standard-rotation axle in a 4.10 ratio. The Dana 44 is one of the most widely used axles across Jeep and light-truck applications, so this set is identified by axle rather than a single vehicle.

The gears use a 26-spline pinion, an 8.5" ring gear, a 3/8" ring gear bolt thread, and heat-treated 8620 steel, in standard rotation. The carrier break for this set is 3.73/3.92, so this 4.10 ratio is designed for the deeper-ratio carrier – confirm your carrier before ordering.

A 4.10 re-gear is a common upgrade after moving to larger tires on a Dana 44. The taller rubber raises your effective gearing and softens throttle response and towing torque; 4.10s bring that grunt back at the wheels for both street and trail driving.

This is a gear set only. It does not include bearings, shims, a crush sleeve, a pinion seal, or a locker – those are sold separately. Verify you have a standard-rotation Dana 44 and a carrier matched to this ratio before ordering. Gear setup is precision work, so professional installation is strongly recommended.

Pair this set with a Revolution Dana 44 master install kit for a quiet, durable rebuild backed by a 2-year warranty against manufacturing defects.
