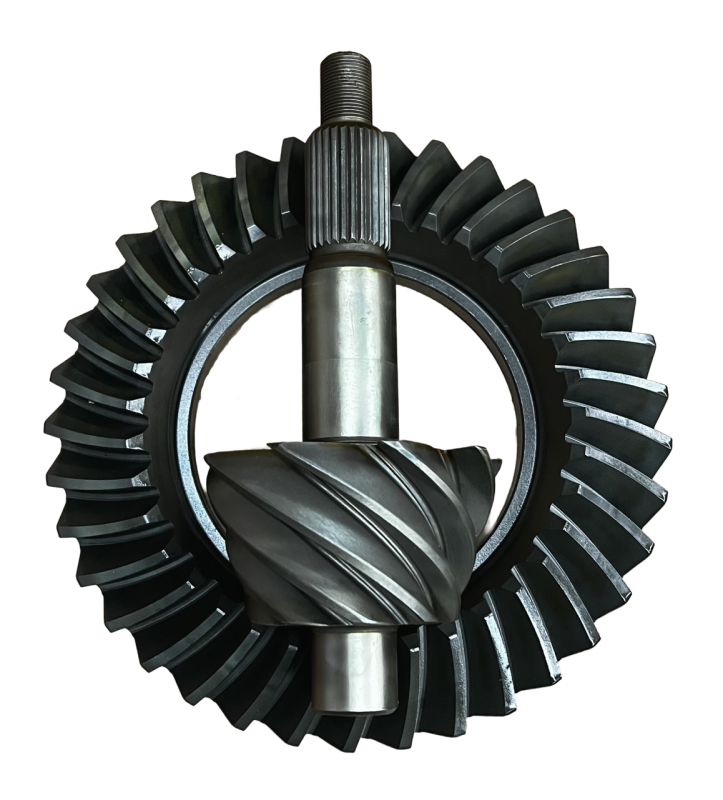

Revolution Gear & Axle Ring & Pinion Set for Ford 9" (3.50 Ratio, 28-Spline)

This is a Revolution Gear & Axle ring and pinion set for the iconic Ford 9" rear axle in a 3.50 ratio, built with a 28-spline pinion. The Ford 9" is identified by axle rather than a single vehicle and shows up everywhere from classic trucks and muscle cars to custom axle swaps under modern rigs.

The gears are made from heat-treated 8620 steel, use a 28-spline pinion and a 9.0" ring gear, run standard rotation, and have a 7/16" ring gear bolt thread. This gear family has no carrier break, so a 3.50 set works without changing carriers.

A 3.50 ratio is a mild, highway-friendly gear – a good fit for cruisers, lighter builds, and rigs that spend a lot of time at speed and don't need a deep numerical ratio. It keeps engine RPM reasonable on the freeway while still pulling cleanly.

This is a gear set only. It does not include bearings, shims, a crush sleeve, a pinion seal, or a carrier or locker – those are sold separately. Confirm your Ford 9" uses a 28-spline pinion before ordering, and have the gears set up by an experienced installer.

Pair this set with a Revolution Ford 9" 28-spline master install kit for a clean, quiet rebuild backed by a 2-year warranty against manufacturing defects.
