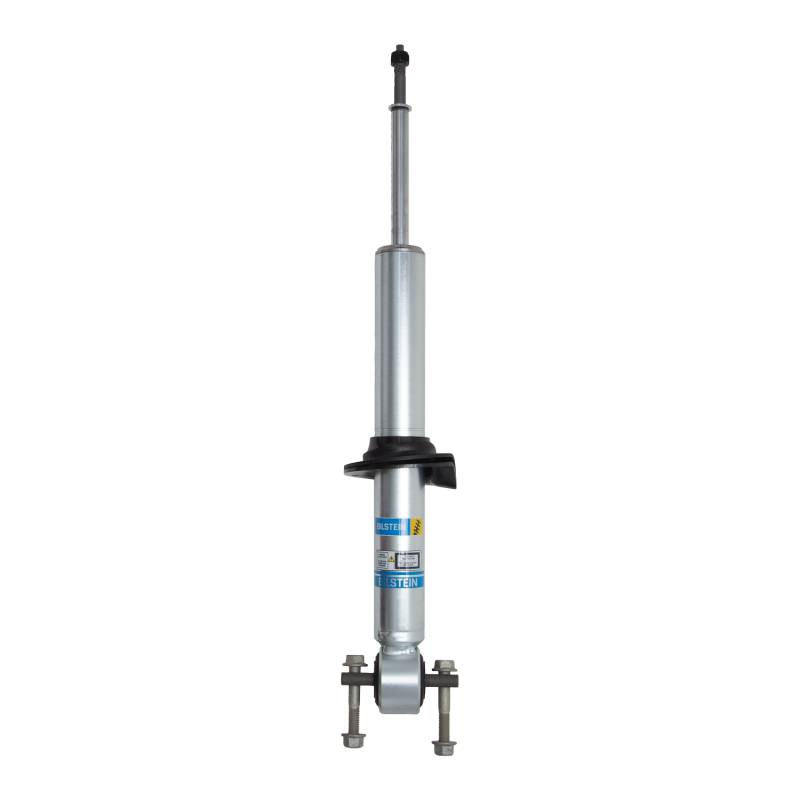

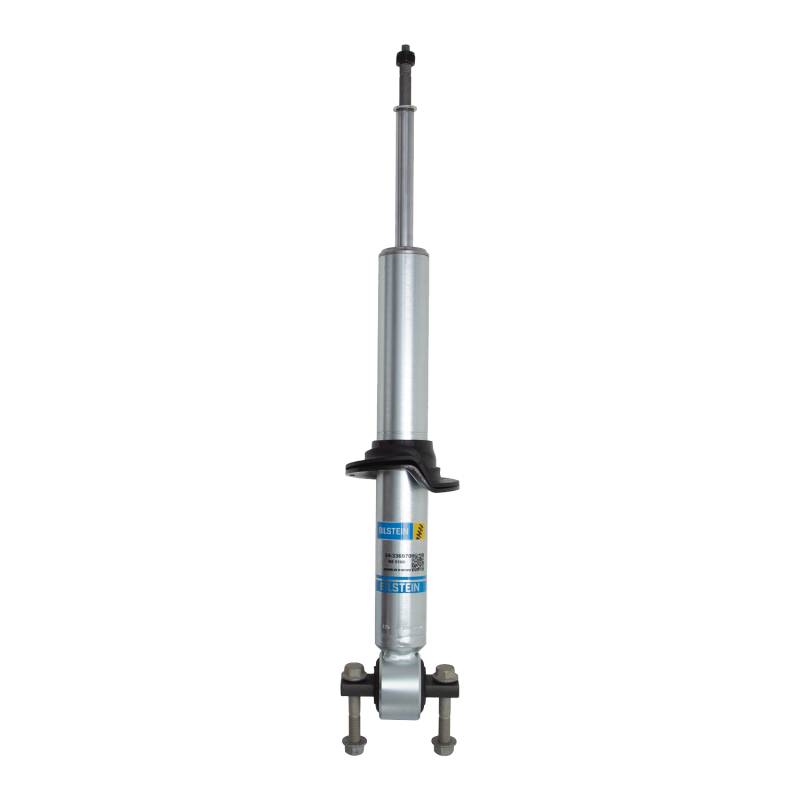

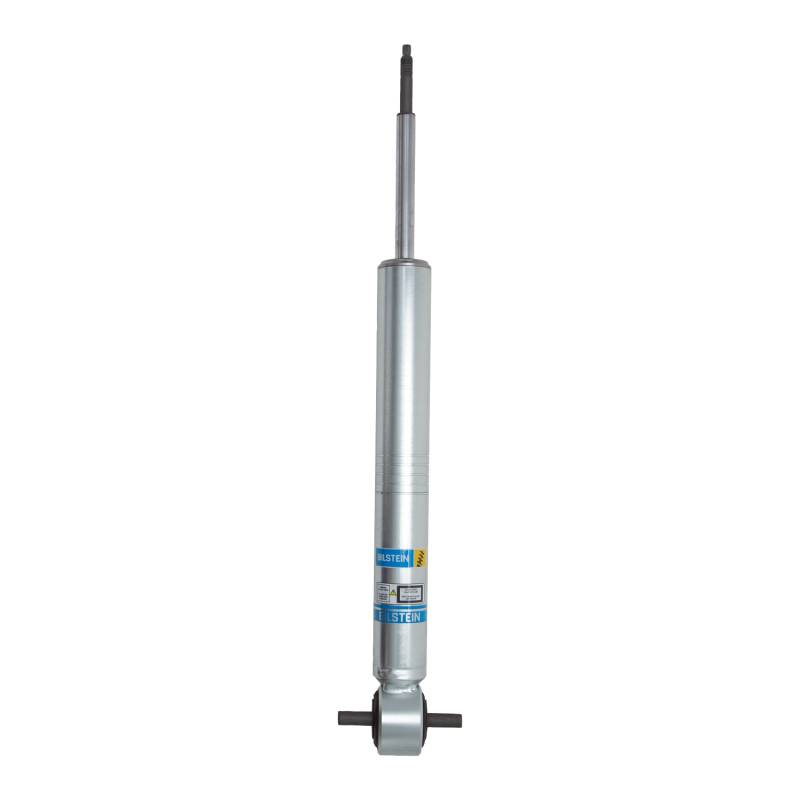

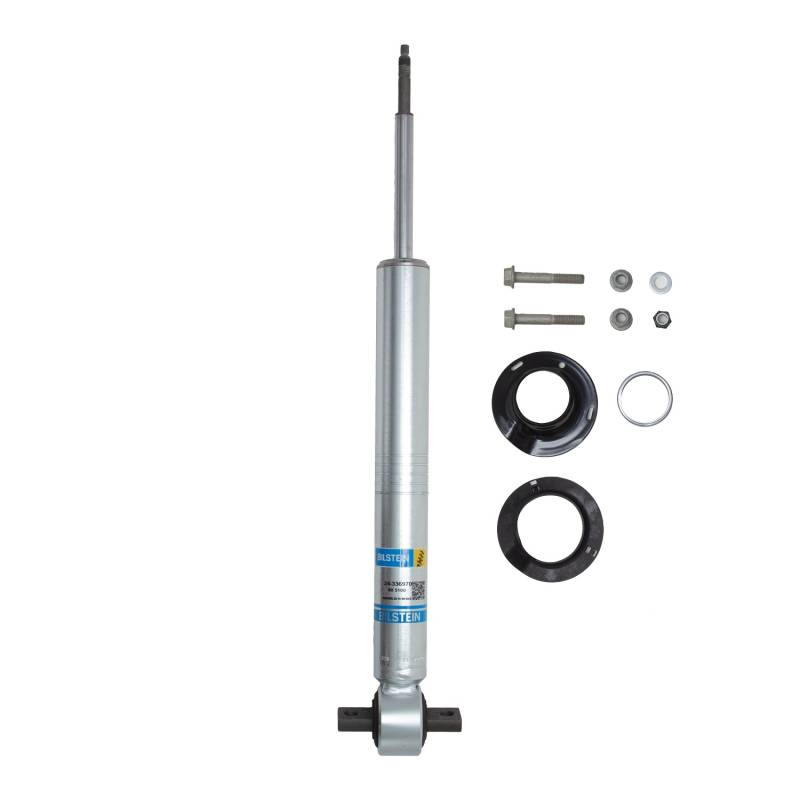

BILSTEIN B8 5100 Series (Ride Height Adjustable) - Suspension Shock Absorber for Ford (2015-20) F-150
24-336970
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
•Applications: Y
•Country of Origin: MX
•Quantity per Vehicle: 2
•Warranty: Limited Lifetime Warranty
Pricing:
$246.99
Description
Specifications:
•Collapsed Length (in): 16.91
•Extended Length (in): 22.41
•Collapsed Length (mm): 429.6
•Extended Length (mm): 569.1
•Stroke/travel Length (in): 5.50
•Lower Mount Type: Crossbar
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No

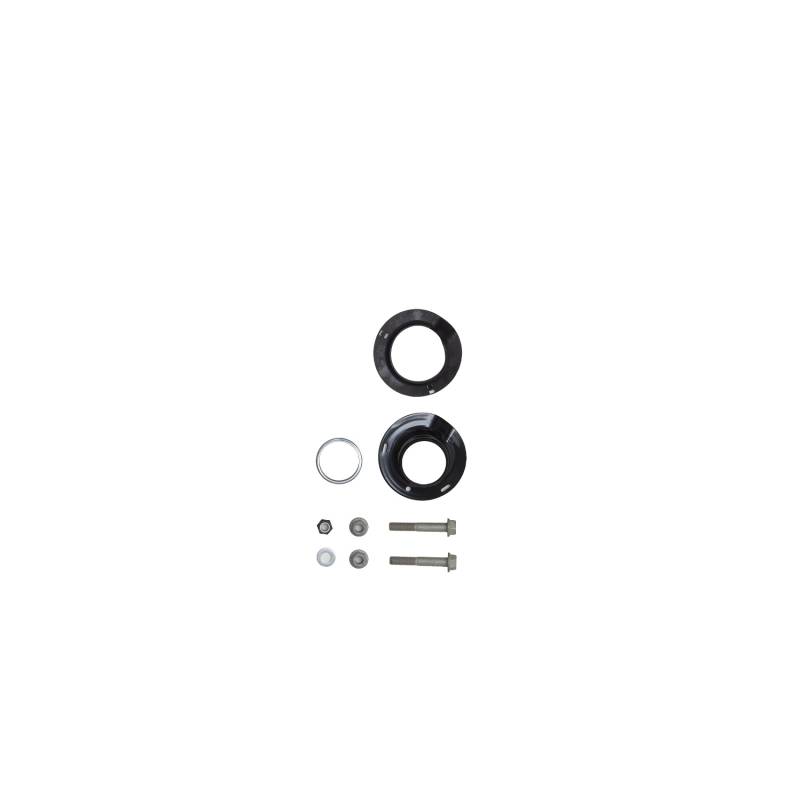

•Spring Seat Included: Yes
•Shaft Diameter: 18mm
•Adjustable Damping: Non-Adjustable
Fitment:
Ford F-150 2015-2020
Interchange Numbers
•Bilstein 24-248129
•FOX Offroad Shocks 985-62-009
•Rancho RS77836
•Collapsed Length (in): 16.91
•Extended Length (in): 22.41
•Collapsed Length (mm): 429.6
•Extended Length (mm): 569.1
•Stroke/travel Length (in): 5.50
•Lower Mount Type: Crossbar
•Upper Mount Type: Stem
•Internal Design: Monotube
•Finish: Zinc Plated
•Reservoir: No
•Body Design: Snap Ring Grooved Body (Coilover)
•Body Diameter (od): 2.0 in.
•Piston Diameter: 46mm
•Boot Included: No
•Spring Seat Included: Yes
•Shaft Diameter: 18mm
•Adjustable Damping: Non-Adjustable
Fitment:
Ford F-150 2015-2020
Interchange Numbers
•Bilstein 24-248129
•FOX Offroad Shocks 985-62-009
•Rancho RS77836
