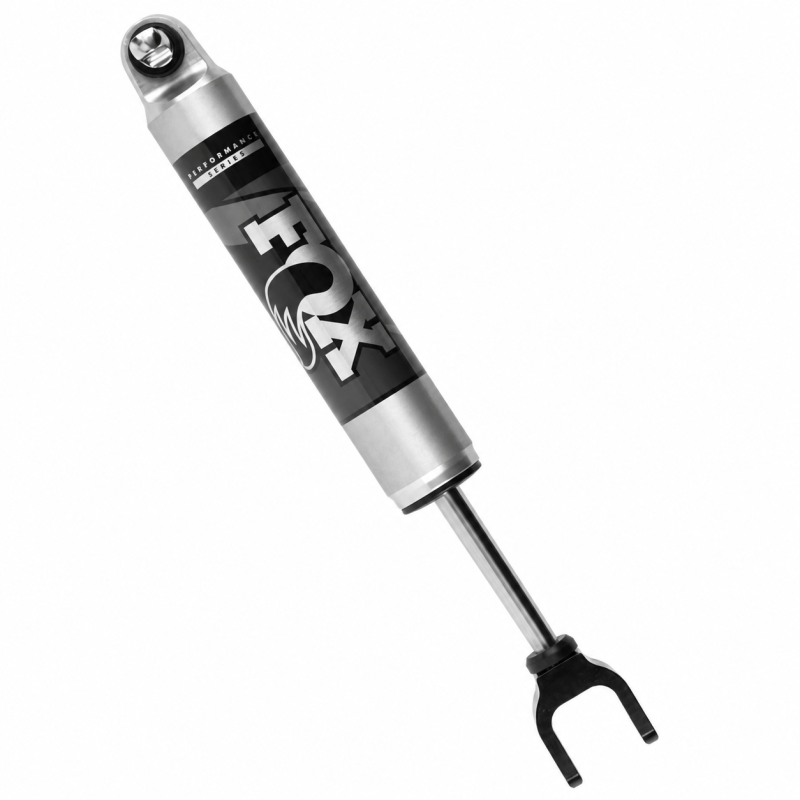

Fox Racing Shox 2.0 Performance Series IFP Smooth Body Shocks for Chevy/GMC (2011-19) 2500HD/3500HS 2WD/4WD (Front, Lifted 0"-1")
980-24-963
Fox Racing Shox 2.0 Performance Series IFP smooth body shocks deliver race-dominating performance in a hassle-free bolt-on package. Their heat-reducing design includes a metal-impacted aluminum shock body that dissipates heat faster than conventional steel. Inside, the Internal Floating Piston (IFP) separates the shock oil from a high-pressure nitrogen gas chamber, providing a predicable ride quality capable of handling the roughest road conditions. Combine these new technologies by Fox Racing Shox, together with a competitive price—and you have a winning combination! Choose the universal or vehicle-specific model that best suits your application.
Pricing:
$229.99
Description
Features:
* Aluminum shock body dissipates heat, will resist rust over time
* Clear-anodized for a durable finish
* Application-specific valving to maximize off-road performance
* Components: black anodized billet aluminum
* Shaft: hard chrome plated heat-treated alloy steel
* Race-developed high-flow piston design
* Quiet nitrile rubber bushings for increased suspension articulation
* Redundant sealing pack system main seal, wiper seal, scraper seal
* JM92 advanced suspension fluid for improved performance at variable temperatures
* Extended length applications available for stock and aftermarket lifts kits
* Optional roost shield kit available (sold separately) to protect shock shaft and seals from rocks kicked up by tires
Adjustments:
* Nitrogen pressure
* Compression valving
* Rebound valving
Specifications:
•Ride Height: Stock/Lifted
•Ride Height Note: Additional ride height information may be available for your vehicle, please refer to the app tab.
•Lifted Amount Range (in.): 0.00-2.00 in.
•Extended Length (in.): 18.61
•Collapsed Length (in.): 13.17
•Adjustable Valving: No
•Gas Charged: Yes
•Upper Mount: T-bar

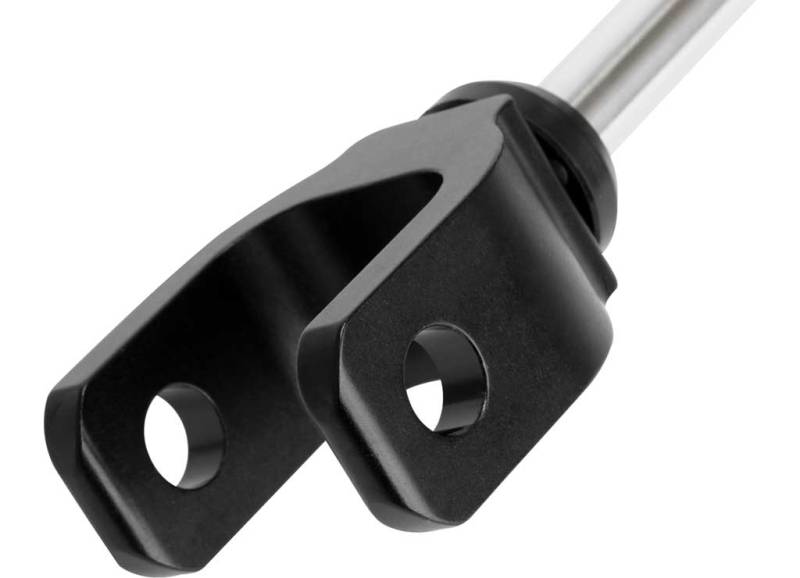

•Lower Mount: Clevis
•Bushing Material: Polyurethane
•Bushing Color: Black
•Boot Included: No
•Body Diameter (in.): 2.000
•Remanufactured: No
•Quantity: Sold individually.
•Notes: Top mount bolt span is 3.780 inches. Bottom mount thru bolt hole is .575 inches.
* Aluminum shock body dissipates heat, will resist rust over time
* Clear-anodized for a durable finish
* Application-specific valving to maximize off-road performance
* Components: black anodized billet aluminum
* Shaft: hard chrome plated heat-treated alloy steel
* Race-developed high-flow piston design
* Quiet nitrile rubber bushings for increased suspension articulation
* Redundant sealing pack system main seal, wiper seal, scraper seal
* JM92 advanced suspension fluid for improved performance at variable temperatures
* Extended length applications available for stock and aftermarket lifts kits
* Optional roost shield kit available (sold separately) to protect shock shaft and seals from rocks kicked up by tires
Adjustments:
* Nitrogen pressure
* Compression valving
* Rebound valving
Specifications:
•Ride Height: Stock/Lifted
•Ride Height Note: Additional ride height information may be available for your vehicle, please refer to the app tab.
•Lifted Amount Range (in.): 0.00-2.00 in.
•Extended Length (in.): 18.61
•Collapsed Length (in.): 13.17
•Adjustable Valving: No
•Gas Charged: Yes
•Upper Mount: T-bar
•Lower Mount: Clevis
•Bushing Material: Polyurethane
•Bushing Color: Black
•Boot Included: No
•Body Diameter (in.): 2.000
•Remanufactured: No
•Quantity: Sold individually.
•Notes: Top mount bolt span is 3.780 inches. Bottom mount thru bolt hole is .575 inches.
Details
- 980-24-963
- 980-24-963
- 714686856935
- Fox Racing
- New
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W2.5000” x H2.5000” x L41.0000”
- Free Shipping
