Diamond T Torque Converter, GM (2022-25) 5.3/6.2L Gas 10L80 (1500 & full size SUVs)

The Diamond T Torque Converter, GM (2022-25) 5.3/6.2L Gas 10L80 – GS10L8022 is built as a direct-fit upgrade for late-model 1500 trucks and full-size SUVs running the 10L80 10-speed automatic. Spec’d for 5.3L and 6.2L gasoline applications, it is designed to replace and improve on factory converters with OE numbers 24044619, 24046708, 24049843, and 2404678 when matched by VIN and application.

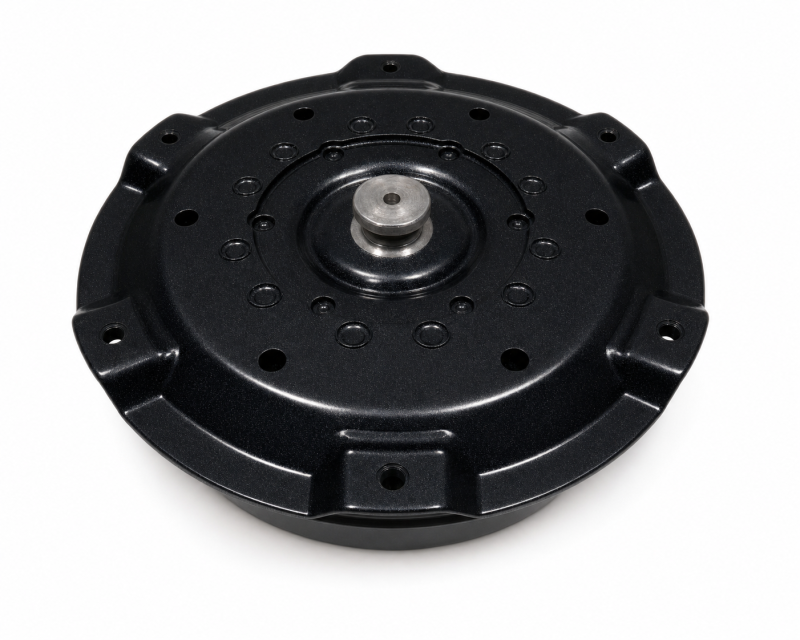

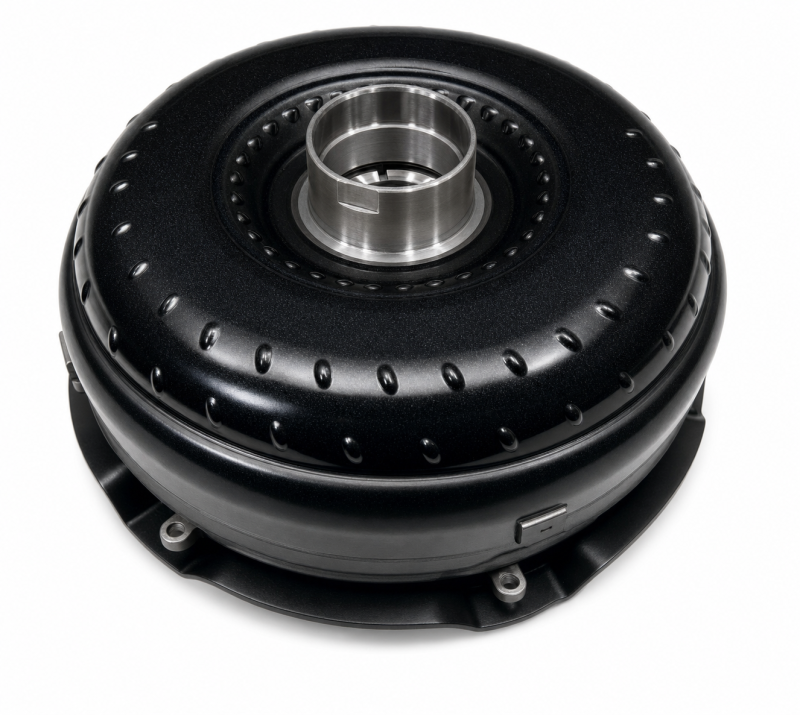

This converter features an 11-5/8" diameter and 6.190" overall height, a 41-spline input, and a 1.700" diameter, 0.989" long pilot for correct alignment in 10L80 units. The hub measures 2.758" OD and 1.463" length with 4 flats and an inner bushing to provide stable support over long service intervals. A plate riveted to the front cover with 6 lugs and M10 x 1.5 threads on an 11-1/2" bolt circle ensures proper flexplate engagement on modern GM 1500 and SUV platforms.

Internally, the paper captive clutch with a low fin angle is optimized for smooth lockup, reduced slip, and better efficiency during cruising and towing, helping manage heat and extend 10L80 life in real-world use. Each GS10L8022 converter is precision balanced to reduce vibration and protect the transmission and driveline, giving owners an OEM-style driving feel with Diamond T’s upgraded build quality and lifetime warranty—American Made, Because It Matters.

Fitment:
2022 - 2025 Cadillac Escalade 6.2L
2022 - 2025 Cadillac Escalade ESV 6.2L
2022 - 2025 Chevy Silverado 1500 5.3L, 5.3L Flex & 6.2L
2023 - 2025 Chevy Suburban 5.3L & 6.2L
2023 - 2025 Chevy Tahoe 5.3L & 6.2L
2022 - 2025 GMC Sierra 1500 5.3L, 5.3L Flex & 6.2L
2023 - 2025 GMC Yukon 5.3L & 6.2L
2023 - 2025 GMC Yukon XL 5.3L & 6.2L
